Omnidirectional fiberglass Antenna 5G 600-6000MHz 3.5-5dB 23×240
Product Introduction
600-6000MHz omnidirectional fiberglass Antennas are designed for high efficiency and peak gain to deliver excellent throughput for access points and terminals. The antennas work on all major cellular (5G/4G/3G/2G) frequency bands. It can enhance WiFi and 5G signals, transmit and receive signals, and improve network quality.
Product Specification
| Electrical Characteristics | ||
| Frequency | 617-960MHz | 1710-6000MHz |
| Impedance | 50 Ohm | 50 Ohm |
| S.W.R. | <4.0 | <4.0 |
| Gain | 3.5dBi | 5dBi |
| Efficiency | ≈58% | ≈71% |
| Horizontal Beamwidth | 360° | 360° |
| Vertical Beamwidth | 61°@868MHz | 48°@1980MHz |
| Polarization | Linear | Linear |
| Max Power | 50W | 50W |
| Material & Mechanical Characteristics | ||
| Connector Type | N connector | |
| Dimension | Φ23*240mm | |
| Weight | 0.1Kg | |
| Radome material | Fiberglass | |
| Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 80 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |
Antenna Passive Parameter
VSWR

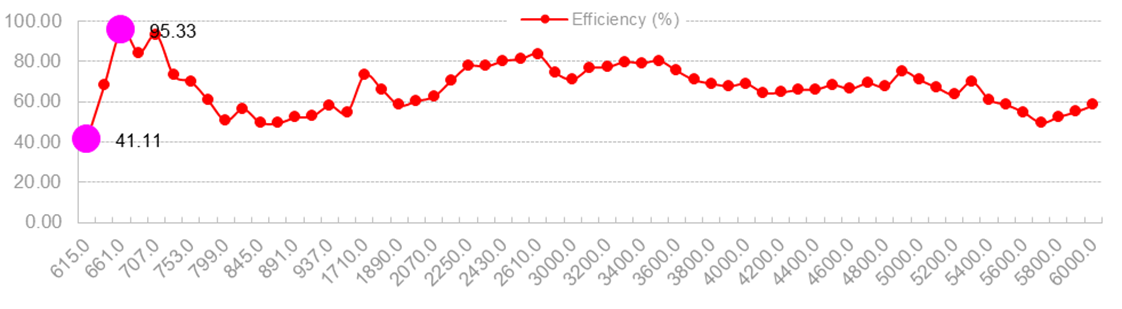

Efficiency & Gain
| Frequency (MHz) |
615 |
638 |
661 |
684 |
707 |
730 |
753 |
776 |
799 |
822 |
845 |
868 |
891 |
914 |
937 |
960 |
| Gain (dBi) |
-1.05 |
1.24 |
2.39 |
1.82 |
2.11 |
1.10 |
0.73 |
0.35 |
-0.02 |
0.48 |
0.18 |
0.42 |
1.22 |
2.06 |
3.16 |
3.49 |
| Efficiency (%) |
41.11 |
68.01 |
95.33 |
84.33 |
93.23 |
73.23 |
70.07 |
60.80 |
50.84 |
56.58 |
49.88 |
49.52 |
52.26 |
53.02 |
58.26 |
54.79 |
| Frequency (MHz) |
1710 |
1800 |
1890 |
1980 |
2070 |
2160 |
2250 |
2340 |
2430 |
2520 |
2610 |
2700 |
| Gain (dBi) |
4.59 |
1.96 |
0.72 |
0.87 |
1.04 |
1.97 |
2.32 |
2.64 |
2.99 |
3.67 |
4.33 |
3.83 |
| Efficiency (%) |
73.27 |
66.27 |
58.41 |
60.53 |
62.74 |
70.61 |
77.78 |
77.61 |
80.34 |
81.31 |
83.53 |
74.49 |
| Frequency (MHz) |
3000 |
3100 |
3200 |
3300 |
3400 |
3500 |
3600 |
3700 |
3800 |
3900 |
4000 |
4100 |
4200 |
4300 |
4400 |
4500 |
| Gain (dBi) |
1.36 |
1.76 |
2.32 |
3.56 |
4.60 |
4.94 |
4.97 |
4.69 |
4.36 |
4.21 |
4.07 |
4.76 |
4.22 |
5.05 |
5.42 |
5.36 |
| Efficiency (%) |
71.26 |
76.72 |
77.24 |
79.84 |
79.25 |
80.38 |
75.40 |
70.94 |
69.12 |
67.85 |
69.00 |
64.55 |
64.78 |
66.07 |
66.20 |
68.43 |
| Frequency (MHz) |
4600 |
4700 |
4800 |
4900 |
5000 |
5100 |
5200 |
5300 |
5400 |
5500 |
5600 |
5700 |
5800 |
5900 |
6000 |
| Gain (dBi) |
5.12 |
5.27 |
5.17 |
4.81 |
4.22 |
4.18 |
4.33 |
4.67 |
4.05 |
3.85 |
3.41 |
2.89 |
3.68 |
4.00 |
4.51 |
| Efficiency (%) |
66.56 |
69.40 |
67.52 |
75.09 |
70.86 |
67.01 |
63.70 |
69.98 |
61.14 |
58.62 |
54.75 |
49.72 |
52.69 |
55.13 |
58.49 |
Radiation Pattern
|
|
3D |
2D-Horizontal |
2D-Vertical |
|
615MHz |
 |
 |
 |
|
868MHz |
 |
 |
 |
|
960MHz |
 |
 |
 |
|
|
3D |
2D-Horizontal |
2D-Vertical |
|
1710MHz |
 |
 |
 |
|
2250MHz |
 |
 |
 |
|
2700MHz |
 |
 |
 |
|
|
3D |
2D-Horizontal |
2D-Vertical |
|
3000MHz |
 |
 |
 |
|
4500MHz |
 |
 |
 |
|
6000MHz |
 |
 |
 |
