Outdoor Flat Panel antenna 2.4GHz 5.8GHz Dual Band 9-12dBi 140*120*25mm
Product Introduction
Our panel antennas feature 2.4GHz and 5.8GHz dual-band capabilities, providing excellent performance across a broad spectrum, ensuring reliable and high-speed connections.
A standout feature of our panel antenna is its impressively high gain of 11dBi. This dramatic gain allows for wide coverage, extending your WiFi range far beyond what traditional antennas can achieve. Say goodbye to blind spots and enjoy seamless connectivity in every corner of your home, office, or outdoor space.
The antenna has a horizontal beamwidth of 50+/-10 . This wide span allows for greater coverage, ensuring your wireless signal reaches every corner of the space. Say goodbye to dead spots and frustrating connection issues with this powerful antenna.
Additionally, the antenna has a vertical beamwidth of 30+/-10, further enhancing its ability to provide you with a strong and stable connection. No matter how large or oddly shaped your area is, this antenna adapts to the environment and provides superior signal strength.
Durability is another key aspect that we prioritize. Our panel antennas are waterproof and UV resistant to withstand the harshest outdoor conditions. This ensures long-lasting performance, making it suitable for installation in a variety of environments such as rooftops, gardens or industrial settings.
Additionally, our panel antennas are compatible with multiple wireless technologies, including WiFi hotspots, IoT devices, Zigbee devices, Bluetooth devices, and the latest WiFi 6 (802.11ax) networks. This versatility allows you to connect multiple devices simultaneously without compromising speed or stability.
Product Specification
| Electrical Characteristics | ||
| Frequency | 2400-2500MHz | 5150-5850MHz |
| S.W.R. | <2.0 | <2.0 |
| Antenna Gain | 9dBi | 12dBi |
| Polarization | Vertical | Vertical |
| Horizontal Beamwidth | 74-77° | 43-60° |
| Vertical Beamwidth | 43-44° | 19-25° |
| F/B | >18dB | >17dB |
| Impedance | 50Ohm | 50Ohm |
| Max. Power | 50W | 50W |
| Material & Mechanical Characteristics | ||
| Connector Type | N connector | |
| Dimension | 140*120*25mm | |
| Radome material | ABS | |
| Weight | 0.30Kg | |
| Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 85 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C | |
| Operation Humidity | ＜95% | |
| Rated Wind Velocity | 36.9m/s | |
Antenna Passive Parameter
VSWR
Gain
|
Frequency(MHz) |
Gain(dBi) |
|
2400 |
9.5913 |
|
2410 |
9.4423 |
|
2420 |
9.2006 |
|
2430 |
9.2808 |
|
2440 |
9.2012 |
|
2450 |
9.3022 |
|
2460 |
9.1597 |
|
2470 |
9.2641 |
|
2480 |
9.0367 |
|
2490 |
9.035 |
|
2500 |
9.0594 |
|
Frequency(MHz) |
Gain(dBi) |
|
5150 |
11.952 |
|
5200 |
11.726 |
|
5250 |
11.622 |
|
5300 |
11.275 |
|
5350 |
11.311 |
|
5400 |
11.307 |
|
5450 |
11.394 |
|
5500 |
11.119 |
|
5550 |
11.341 |
|
5600 |
11.655 |
|
5650 |
11.621 |
|
5700 |
12.138 |
|
5750 |
11.981 |
|
5800 |
11.867 |
|
5850 |
12.476 |

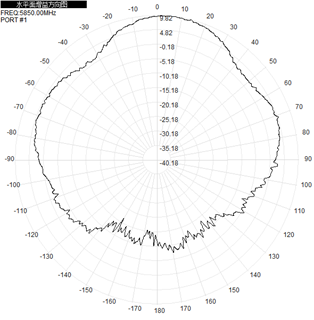

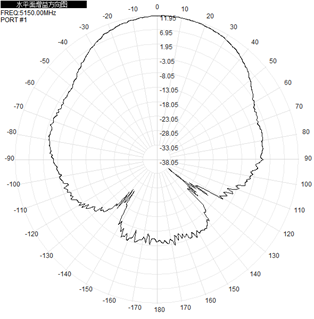

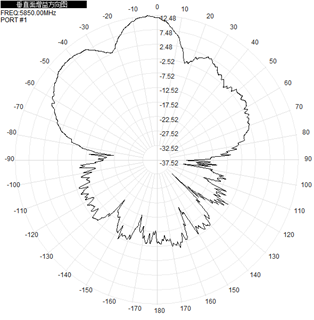

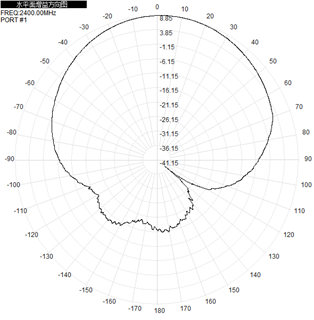

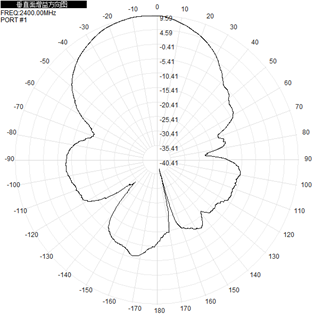

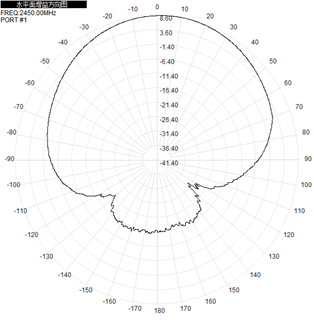

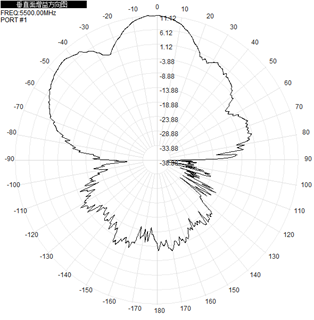

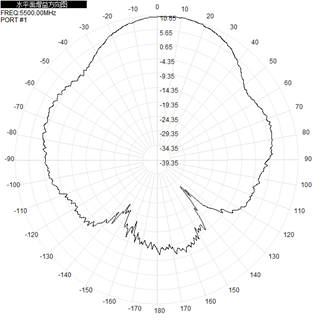

Radiation Pattern
|
|
2D- Horizontal |
2D-Vertical |
2D-Horizontal & Vertical |
|

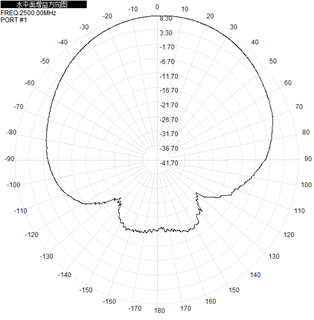

2400MHz |
 |
 |
 |
|
2450MHz |
 |
 |
 |
|
2500MHz |
 |
 |
 |
|
|
2D- Horizontal |
2D-Vertical |
2D-Horizontal & Vertical |
|
5150MHz |
 |
 |
 |
|
5500MHz |
 |
 |
 |
|
5850MHz |
 |
 |
 |
