Outdoor RFID antenna 902-928MHz 7 dBi
Product Introduction
The antenna's directivity is another notable feature, with a horizontal beamwidth of 60+/-5˚ and a vertical beamwidth of 70+/-5˚. This wide beamwidth ensures comprehensive coverage and efficient detection of RFID tags, minimizing the chances of missed readings.
One of the standout features of this antenna is its impressive reading distance. In an ideal environment, it can achieve a longer RFID tag reading distance compared to other antennas in the market. This not only improves work efficiency but also enhances operation convenience, allowing for a smoother workflow and reduced human intervention.
Furthermore, this antenna is built to withstand the harshest outdoor conditions. The antenna shell is made of weather-resistant materials, providing excellent protection against water, dust, and corrosion. This ensures the antenna's durability and reliability, even in harsh outdoor environments such as logistics yards or construction sites.
Installation is made easy with our Outdoor RFID Antenna. It supports various installation methods, including wall hanging, hanging, and pole installations. This adaptability allows users to choose the most suitable installation method for their specific scenarios, providing utmost convenience and flexibility.
Considering its impressive features and robust protection performance, the Outdoor RFID Antenna finds its application in a wide range of fields. Logistics and warehouse management can greatly benefit from its high reading distance and accurate tracking capabilities. Intelligent traffic and parking management systems can efficiently monitor and control vehicle movements using this antenna. Additionally, road pricing and electronic toll collection systems can effectively identify vehicles passing through toll gates. Lastly, asset tracking and management become a breeze with this antenna's reliable and accurate RFID tag detection.
Product Specification
| Electrical Characteristics | |
| Frequency | 902-928MHz |
| S.W.R. | <1.5 |
| Antenna Gain | 7dBi |
| Polarization | DHCP |
| Horizontal Beamwidth | 60±5° |
| Vertical Beamwidth | 70±5° |
| F/B | >17dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| Material & Mechanical Characteristics | |
| Connector Type | N connector |
| Cable Type | MSYV50-3 |
| Dimension | 186*186*28mm |
| Radome material | ABS |
| Weight | 0.915Kg |
| Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
Antenna Passive Parameter
VSWR
Efficiency & Gain
|
Frequency(MHz) |
Gain(dBi) |
Efficiency (%) |
|
900.0 |
6.85 |
65.00 |
|
905.0 |
7.15 |
67.84 |
|
910.0 |
7.18 |
66.84 |
|
915.0 |
7.31 |
67.50 |
|
920.0 |
7.25 |
65.98 |
|
925.0 |
7.36 |
67.15 |
|
930.0 |
7.30 |
65.95 |

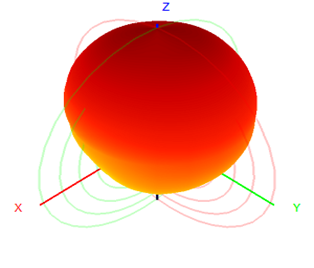

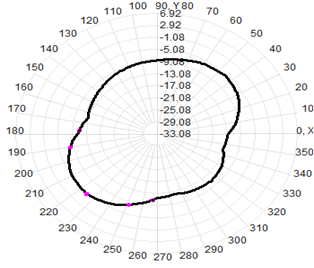

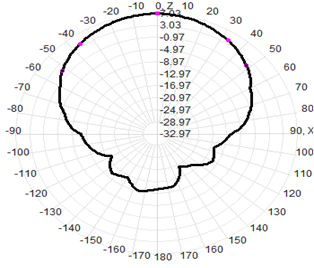

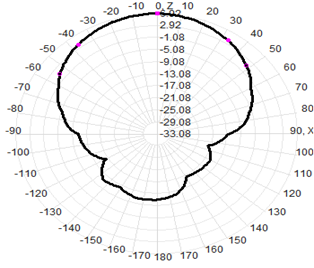

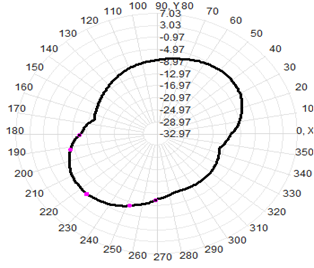

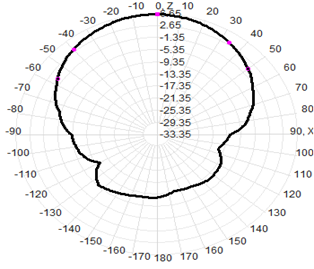

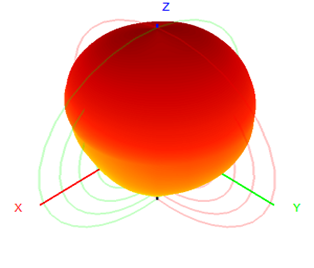

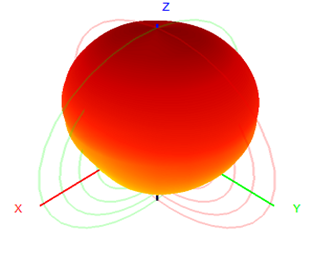

Radiation Pattern
|
|
3D |
2D-Horizontal |
2D-Vertical |
|
902MHz |
 |
 |
 |
|
915MHz |
 |
 |
 |
|
928MHz |
 |
 |
 |
