Outdoor IP67 RFID Antenna 902-928 MHz 10 dB 700x150x90
RFID Antenna
Products Categories
Featured Products

Outdoor IP67 RFID Antenna 902-928 MHz 10 dB 700x150x90

This RFID antennas is designed for large-scale coverage in high-capacity, high-throughput environments.
With its wide read range and high-speed RF signal conversion, the antenna ensures fast and accurate data capture even in vast and demanding environments.
  • Frequency 902-928MHz
  • Gain 10dBi
  • Waterproof IP67 Waterproof
  • Connector N Connector
  • Dimension 700*150*90mm

product detail

Product Introduction

This RFID antennas is designed for large-scale coverage in high-capacity, high-throughput environments.
With its wide read range and high-speed RF signal conversion, the antenna ensures fast and accurate data capture even in vast and demanding environments.
Installation is simple as it can be easily mounted on ceilings and walls, and its rugged housing is suitable for both customer-facing and industrial environments. Experience superior reading areas around warehouse shelves, warehouse entrances, and dock decks, anywhere you need to track the movement of boxes and pallets. Your workflow remains smooth, inventory checks remain accurate, and your productivity reaches new heights.
The unique feature of this RFID antenna is its excellent anti-interference performance, which can effectively resist the influence of external interference signals and ensure the accuracy and stability of data reading. Whether in high-density logistics environments or crowded manufacturing floors, performance remains stable. In addition, the antenna has adjustable power output that can be flexibly adjusted to optimize reading performance at different distances and environments. Energy-saving features also extend the life of the antenna and reduce energy consumption.
Additionally, our RFID antennas integrate seamlessly with your existing RFID systems for fast and efficient data transmission. Whether in logistics, warehousing, manufacturing or retail industries, it can quickly capture item identification information and enhance your control capabilities.

Product Specification

Electrical Characteristics
Frequency 902-928MHz
S.W.R. <1.5
Antenna Gain 10dBi
Polarization Vertical
Horizontal Beamwidth 120°
Vertical Beamwidth 30°
F/B >15dB
Impedance 50Ohm
Max. Power 100W
Material & Mechanical Characteristics
Connector Type N connector
Cable Type LMR400 Cable
Dimension 750*150*90mm
Radome material Fiberglass
Weight 4.5Kg
Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity <95%
Rated Wind Velocity 36.9m/s

Antenna Passive Parameter

VSWR

902-928-JIZHAN

Efficiency & Gain

Frequency(MHz) Gain(dBi)
902 10.1
904 10.1
906 10.2
908 10.2
910 10.3
912 10.3
914 10.3
916 10.4
918 10.4
920 10.5
922 10.4
924 10.4
926 10.4
928 10.4

Radiation Pattern

Freq. 2D-Horizontal 2D-Vertical Horizontal & Vertical

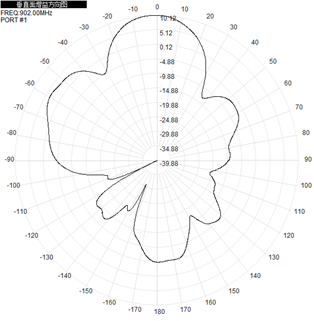

902MHz 902MHz Horizontal 902MHz Vertical 902MHz H&V

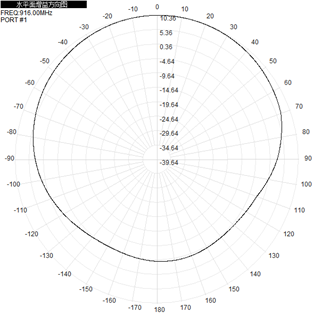

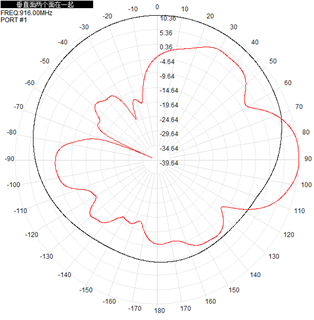

916MHz 916MHz Horizontal 916MHz Vertical 916MHz H&V

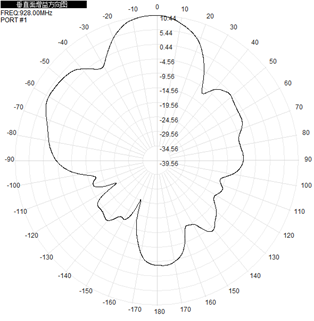

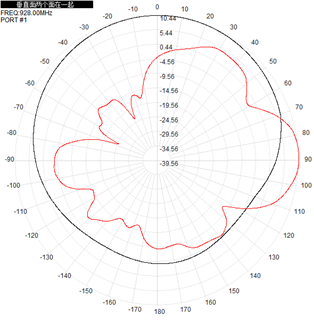

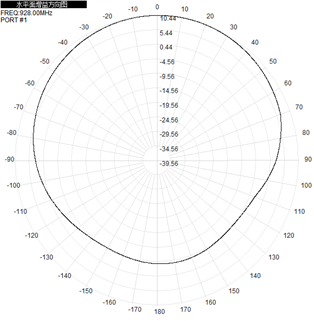

928MHz 928MHz Horizontal 928MHz Vertical 928MHz H&V
