Outdoor Omnidirectional fiberglass antenna 700-6000MHz 95×142

Short Description:

Frequency: 700-6000MHz

Gain: 3-5dBi

N Connector

IP67 Waterproof

Dimension: Φ95*142mm




Product Detail

Product Tags

Product Introduction

700-6000MHz omnidirectional fiberglass Antennas are designed for high efficiency and peak gain to deliver excellent throughput for access points and terminals. The antennas work on all major cellular (5G/4G/3G/2G) frequency bands. It can enhance WiFi and 5G signals, transmit and receive signals, and improve network quality.

Product Specification

Electrical Characteristics
Frequency 700-960MHz 1710-6000MHz
S.W.R. <2.0 <2.0
Efficiency ≈70% ≈80%
Antenna Gain 3dBi 5dBi
Polarization Linear Linear
Horizontal Beamwidth 360° 360°
Vertical Beamwidth 27-32° 27-80°
Impedance 50 Ohm 50 Ohm
Max Power 50W 50W
Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ95*142mm
Weight 0.375Kg
Radome material Fiberglass
Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s

Antenna Passive Parameter

VSWR

600-6000-PAOTONG

Efficiency & Gain

Frequency  (MHz)

Gain (dBi)

Efficiency (%)



Frequency (MHz)

Gain (dBi)

Efficiency (%)

617.0

2.7

54.8

3100.0

4.9

72.8

618.0

2.7

54.5

3200.0

4.9

74.5

619.0

2.6

53.8

3300.0

4.2

76.3

620.0

2.6

53.1

3400.0

4.2

79.2

630.0

3.1

56.8

3500.0

3.4

73.5

660.0

2.5

57.0

3600.0

4.1

83.7

690.0

3.4

61.7

3700.0

4.8

81.2

720.0

3.3

71.7

3800.0

4.9

85.7

750.0

2.8

79.3

3900.0

5.0

84.5

780.0

2.9

83.7

4000.0

5.0

88.0

810.0

3.0

83.9

4100.0

4.8

82.8

840.0

2.9

76.5

4200.0

4.7

84.6

870.0

3.0

71.3

4300.0

4.6

86.7

900.0

3.2

70.6

4400.0

4.6

85.5

930.0

3.3

77.0

4500.0

4.8

85.4

960.0

3.2

80.2

4600.0

4.7

88.8

1700.0

3.3

73.5

4700.0

4.1

86.6

1800.0

3.0

68.2

4800.0

4.0

91.7

1900.0

3.6

73.3

4900.0

3.3

83.8

2000.0

4.3

79.5

5000.0

3.5

82.7

2100.0

4.1

81.6

5100.0

3.4

79.4

2200.0

3.9

79.5

5200.0

2.9

77.0

2300.0

3.2

76.7

5300.0

4.3

83.3

2400.0

3.1

80.2

5400.0

4.0

75.8

2500.0

3.3

77.9

5500.0

4.5

77.2

2600.0

3.8

71.0

5600.0

4.5

75.5

2700.0

3.8

67.1

5700.0

4.8

79.0

2800.0

4.2

73.3

5800.0

4.7

78.9

2900.0

3.8

75.1

5900.0

4.8

82.6

3000.0

4.6

72.3

6000.0

4.7

89.2

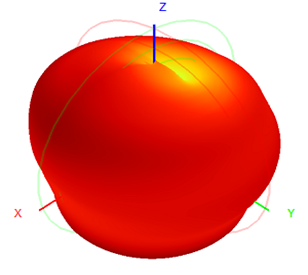

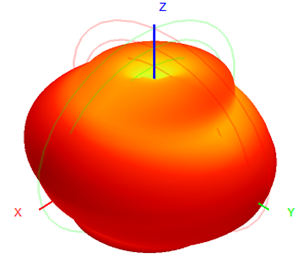

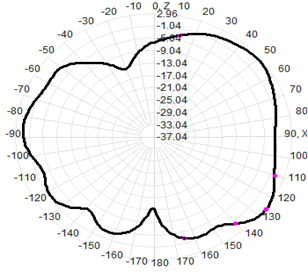

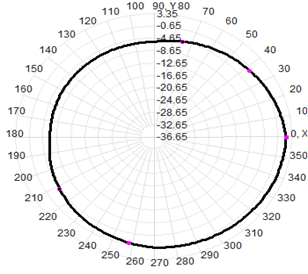

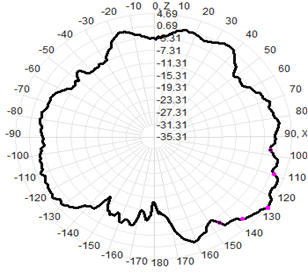

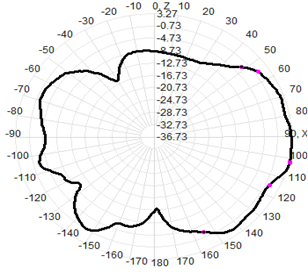

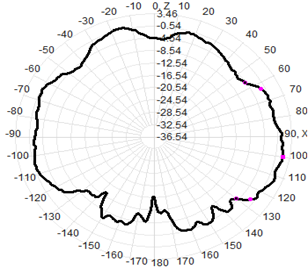

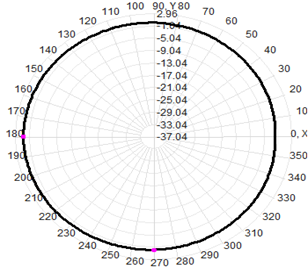

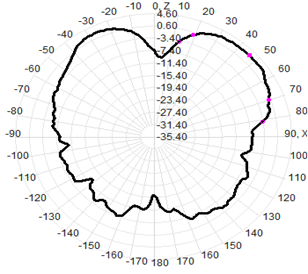

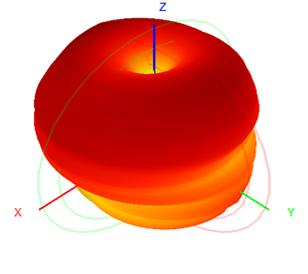

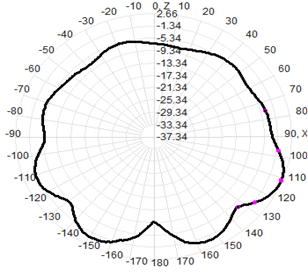

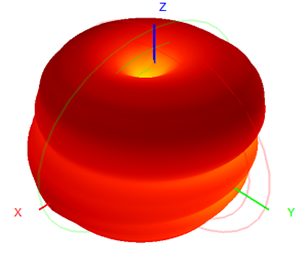

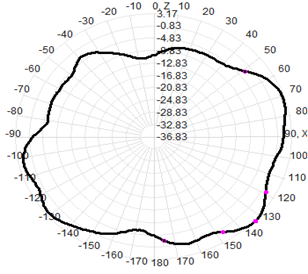

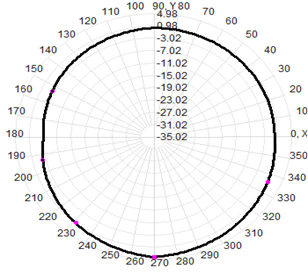

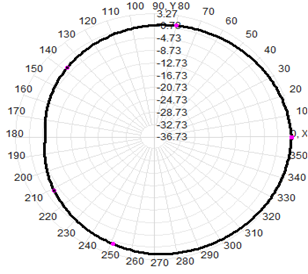

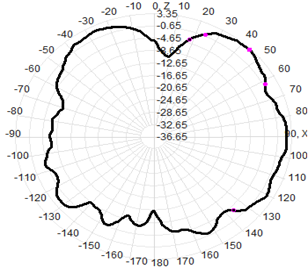

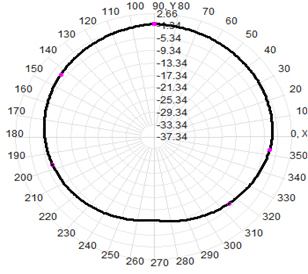

Radiation Pattern

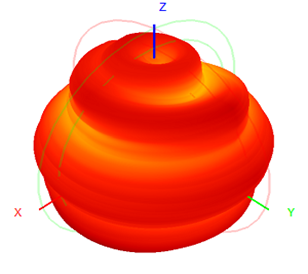

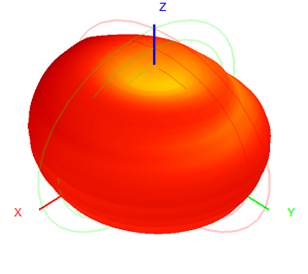

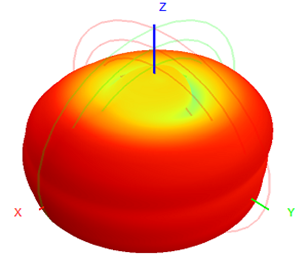

3D

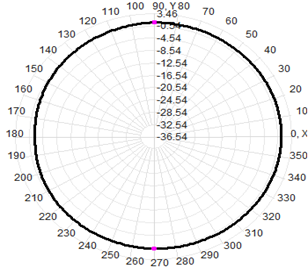

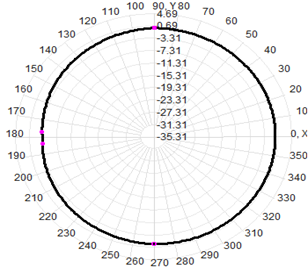

2D-Horizontal

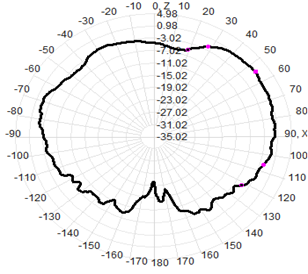

2D-Vertical

617MHz



810MHz



960MHz





3D

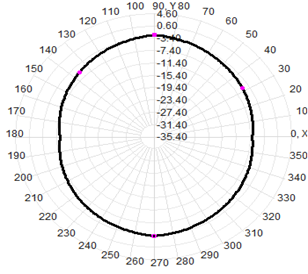

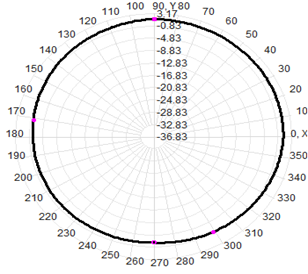

2D-Horizontal

2D-Vertical

1700MHz



2500MHz
