GNSS Passive Antenna 1561MHz 1575.42 MHz 3dBi 16x130

We provide comprehensive antenna design support such as simulation, testing and manufacturing for custom antenna solutions to meet your specific application needs.

Frequency 1561.098MHz; 1575.42MHz
Gain 2dBi
Connector N Connector
Waterproof IP67 Waterproof
Dimension Φ16*100mm

product detail

Product Introduction

Boges GNSS antenna adopts a diversity of forms to guarantee the most suitable polarization type. Boges’s positioning products support single-band or multi-band operation modes to meet various high-precision positioning requirements of customers’ products. Boges also provides both passive and active antennas to satisfy the customer demand for high gain. Such antenna supports different installation or connection methods such as pin mount, surface mount, magnetic mount, internal cable, and external SMA. Customized connector type and cable length are provided according to requirements.

We provide comprehensive antenna design support such as simulation, testing and manufacturing for custom antenna solutions to meet your specific application needs.

Product Specification

Electrical Characteristics
Frequency	1561.098MHz; 1575.42MHz
VSWR	<1.5
Peak Gain	3dBi
Impedance	50Ohm
Efficiency	≈79%
Polarization	Linear
Horizontal Beamwidth	360°
Vertical Beamwidth	39-41°
Power	5W
Material & Mechanical Characteristics
Connector Type	N connector
Dimension	Φ16x130mm
Radome material	Fiberglass
Weight	0.070Kg
Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C

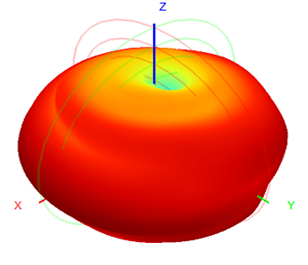

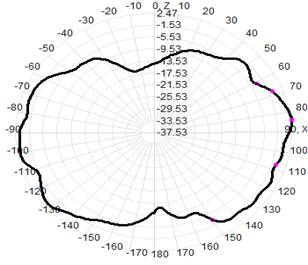

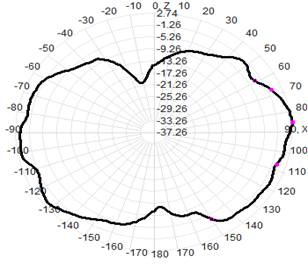

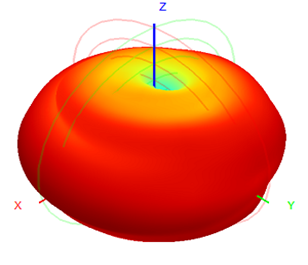

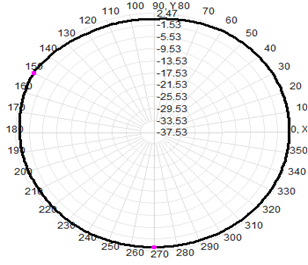

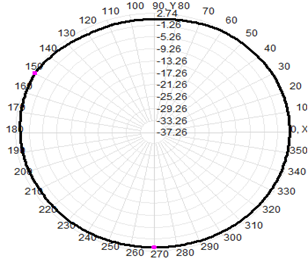

Antenna Passive Parameter

VSWR

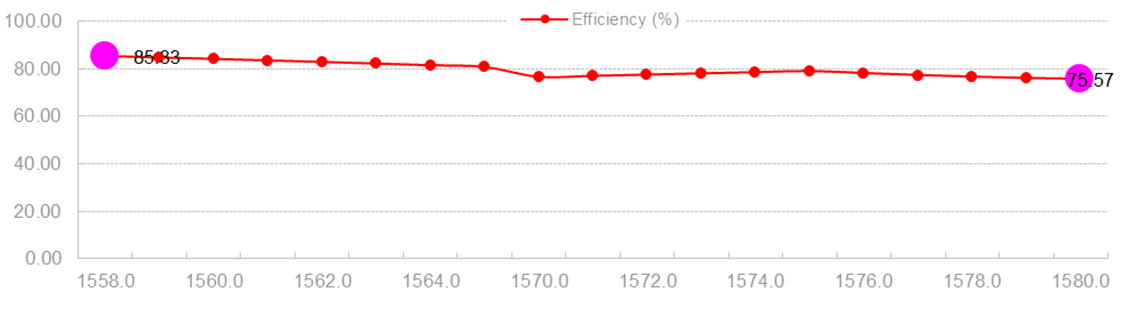

Efficiency & Gain

Frequency(MHz)	1558.0	1559.0	1560.0	1561.0	1562.0	1563.0	1564.0	1565.0
Gain (dBi)	2.84	2.85	2.85	2.84	2.83	2.82	2.79	2.75
Efficiency (%)	85.33	84.74	84.12	83.46	82.80	82.12	81.41	80.67

Frequency(MHz)	1570.0	1571.0	1572.0	1573.0	1574.0	1575.0	1576.0	1577.0	1578.0	1579.0	1580.0
Gain (dBi)	2.50	2.50	2.51	2.52	2.53	2.54	2.47	2.44	2.41	2.39	2.39
Efficiency (%)	76.45	76.88	77.38	77.92	78.43	78.94	78.07	77.24	76.52	75.95	75.57
