magnetic Antenna Lora Antenna 470-510MHz 62×208
Product Introduction
The magnetic antenna targets 470 MHz to 510 MHz with excellent VSWR, gain and efficiency for
LoRaWAN™ and GSM-480 applications.
Product Specification
|
Electrical Characteristics |
|
| Frequency | 470-510MHz |
| S.W.R. | <2.5 |
| Antenna Gain | 0.5dBi |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Impedance | 50 Ohm |
|
Material & Mechanical Characteristics |
|
| Connector Type | SMA Plug |
| Cable Type | RG58/U cable |
| Dimension | Φ62*208mm |
| Weight | 0.355Kg |
| Antenna Materials | Copper Rod |
|
Environmental |
|
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
Antenna Passive Parameter
VSWR
Efficiency & Gain
| Frequency (MHz) |
470 |
480 |
490 |
500 |
510 |
| Gain (dBi) |
0.61 |
0.52 |
-0.16 |
-1.52 |
-0.26 |
| Efficiency (%) |
57.35 |
56.91 |
49.69 |
34.09 |
39.56 |
Radiation Pattern
|
|

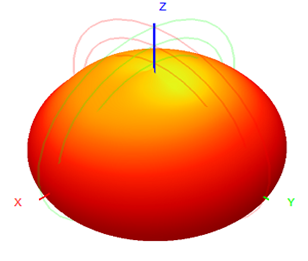

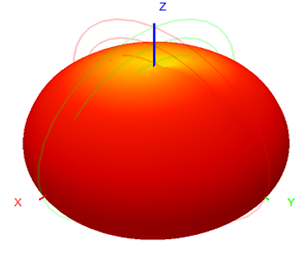

3D |

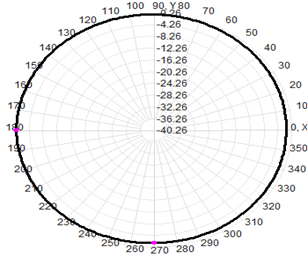

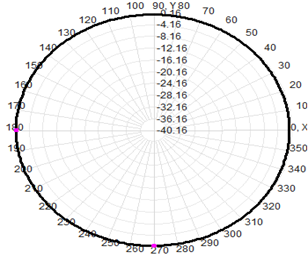

2D-Horizontal |

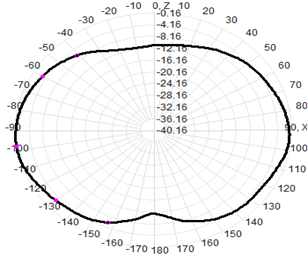

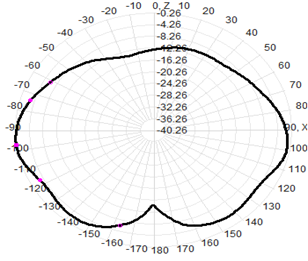

2D-Vertical |
|

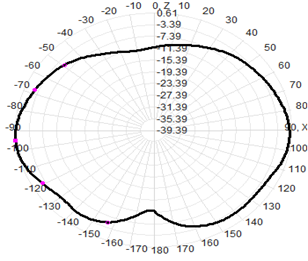

470MHz |
 |
 |
 |
|
490MHz |
 |
 |
 |
|
510MHz |
 |
 |
 |
