4G 5G External Antenna 1.7-4.2dBi 13×194

Short Description:

Frequency: 700-960Hz; 1710-2690MHz; 3300-3800MHz; 4200-4900MHz

Gain:1.7-4.2dBi

SMA connector

Dimension: 13x194mm


Product Detail

Product Tags

Product Introduction

The 5G external antenna is designed primarily for use with modules and devices that require high efficiency and peak gain from a cellular antenna. It delivers best in class throughput on all major cellular bands worldwide, perfect for access points, terminals, and routers. The antenna covers all cellular bands from 700-4900MHz.
Typical Applications include:
- Gateways & Routers - Exterior Cameras - Vending Machines
- Industrial IoT - Smart Home - Wastewater Monitoring

Product Specification

Electrical Characteristics
Frequency 700-960Hz; 1710-2690MHz; 3300-3800MHz; 4200-4900MHz
S.W.R. 5.0 Max@700-960Hz; 3.0 Max@1710-2690MHz;         5.0 Max@3300-3800MHz; 4200-4900M
Antenna Gain 4G: 1.7dBi@700-960Hz

3.9dBi@1710-2690MHz

5G: 4.4dBi@3300-3800MHz

4.3dBi@4200-4900MHz

Polarization Linear
Impedance 50 Ohm
Material & Mechanical Characteristics
Material of Radiator PCB
Material of Plastic PC+ABS
Cable Type RG-178 Cable
Connector Type SMA Male Connector
Connector Pull Test >=3.0Kg
Connector Torque Test 300~1000 g.cm
Environmental
Operation Temperature - 40 ˚C ~ + 65 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C



Antenna Passive Parameter

VSWR

VSWR

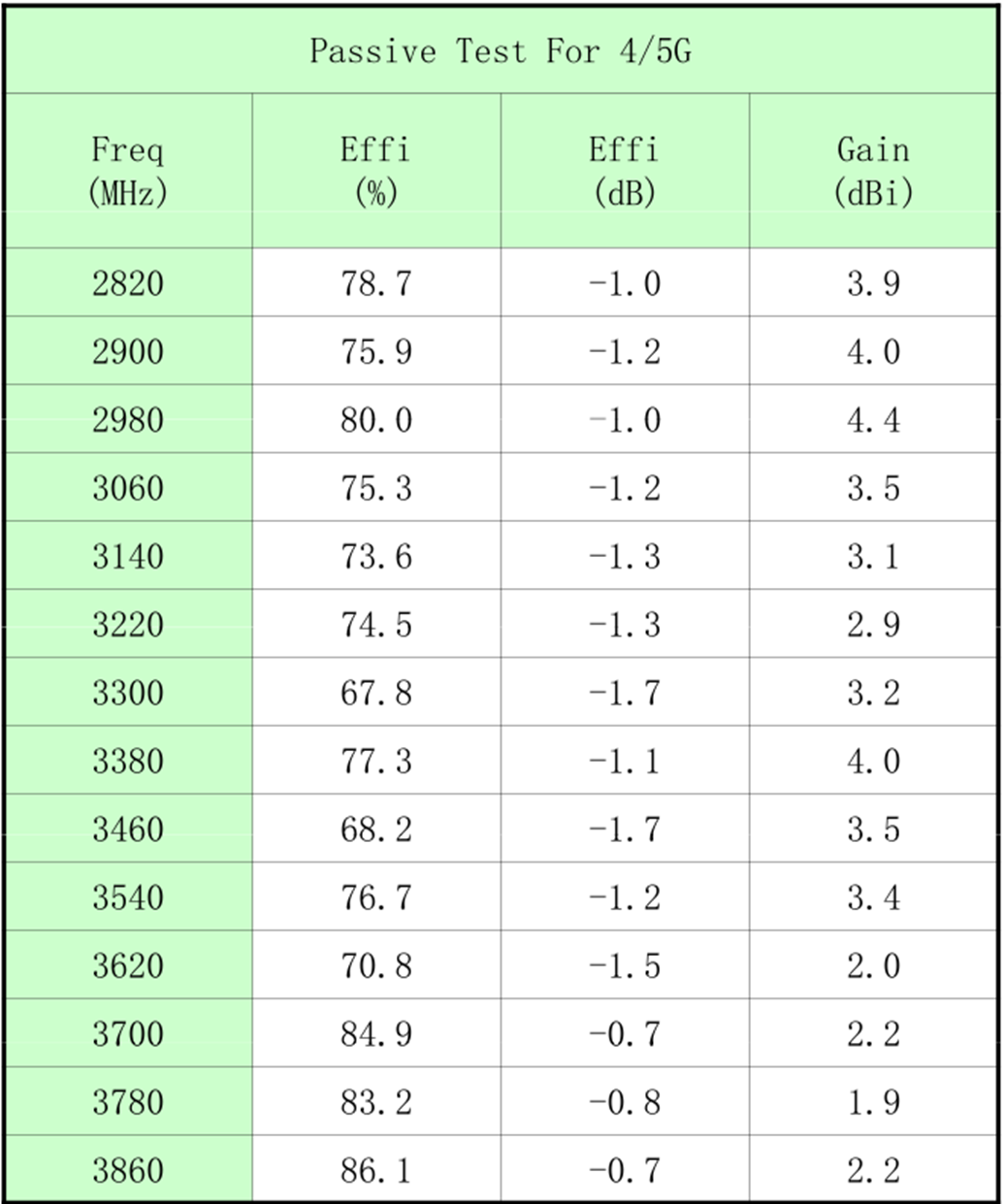

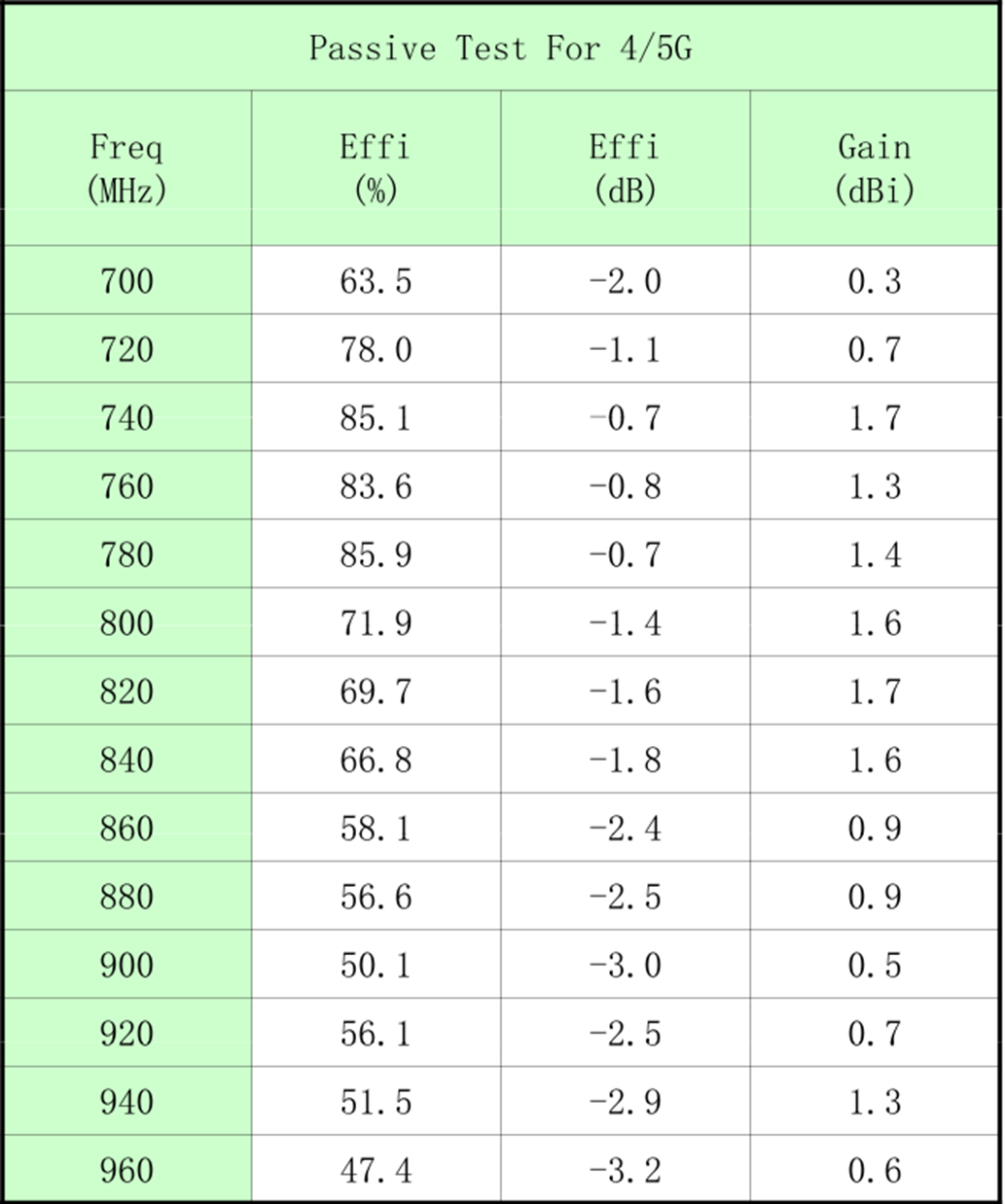

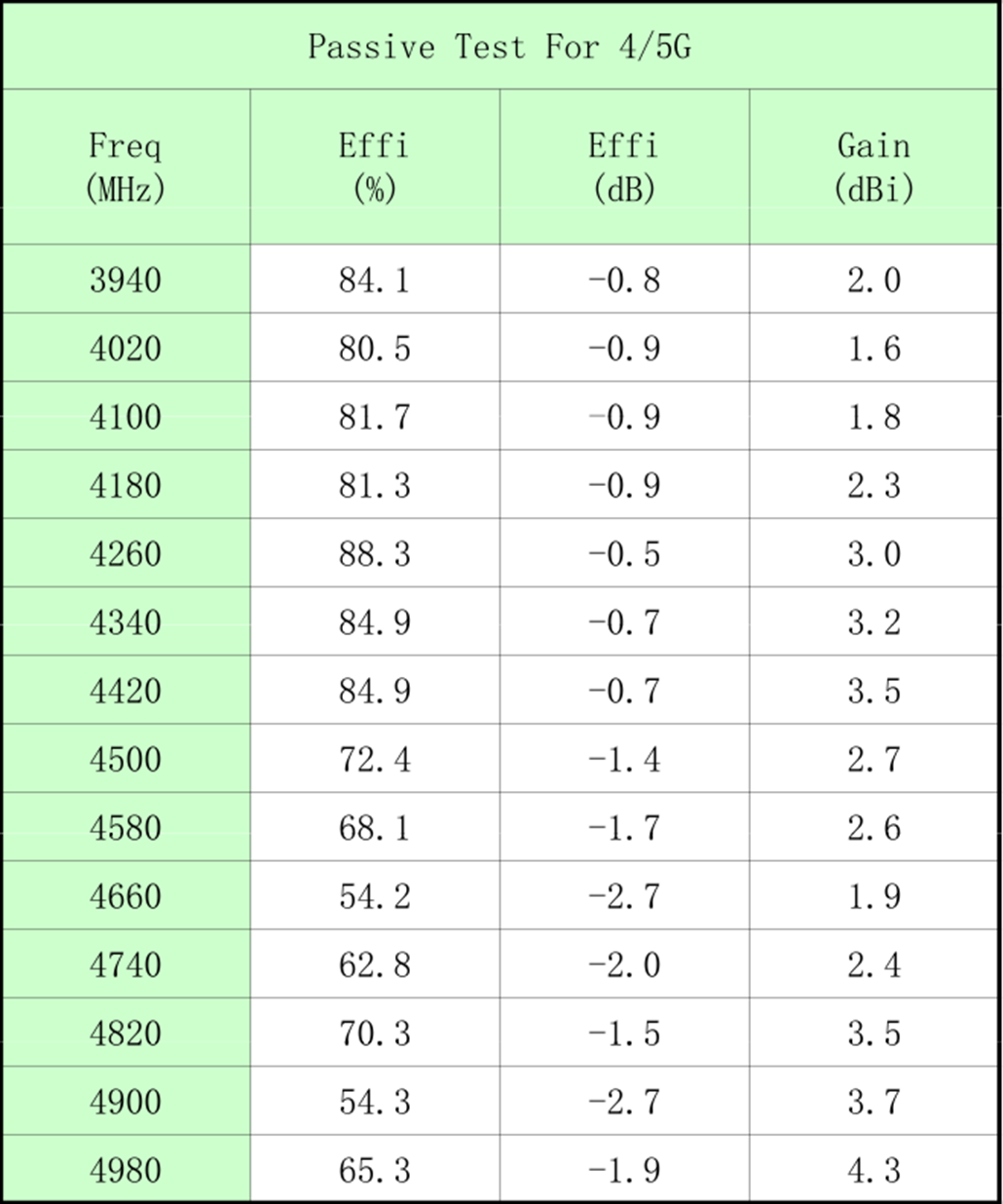

Efficiency & Gain

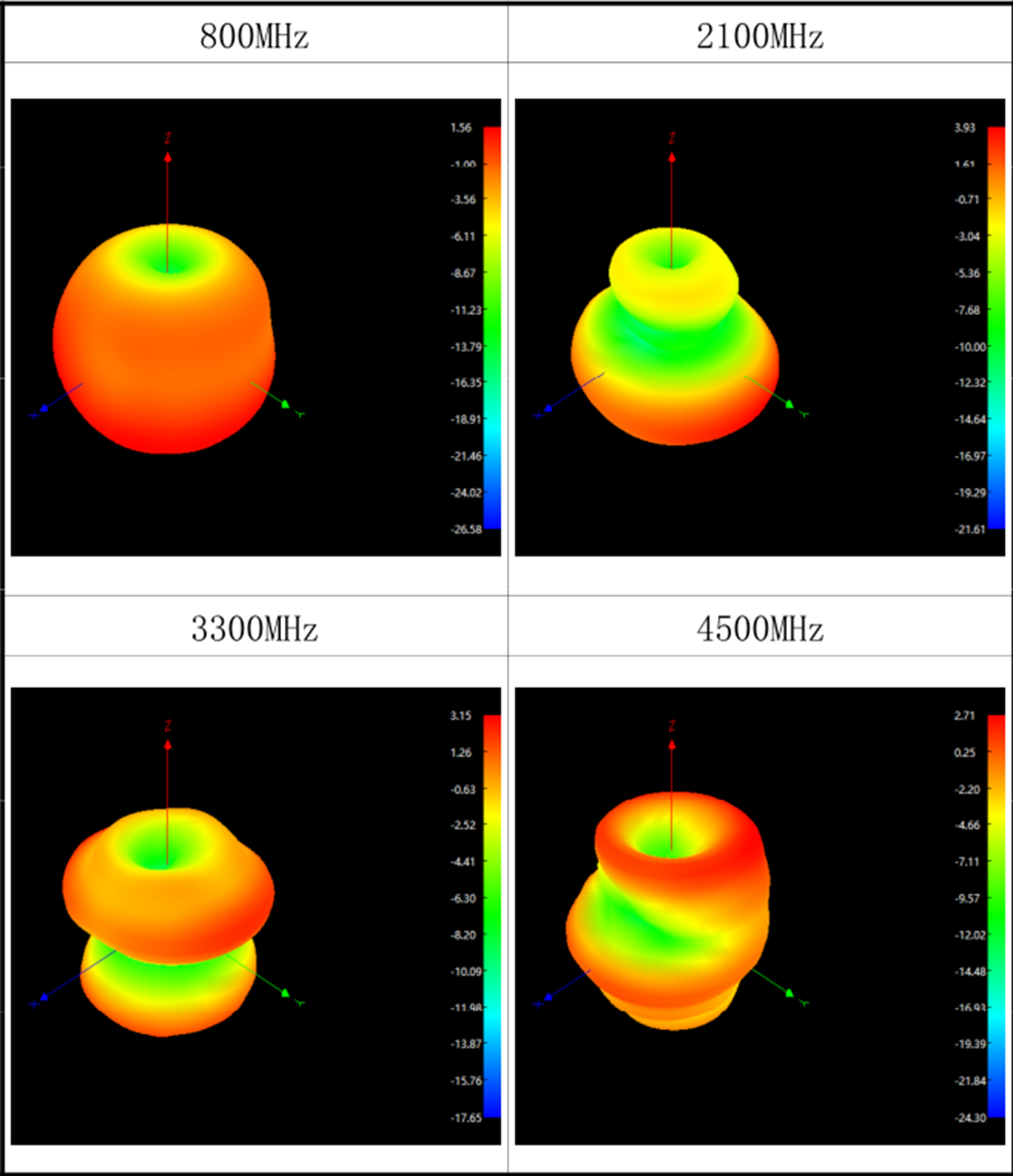

Radiation Pattern
