FRP Antenna
Outdoor IP67 Omnidirectional Fiberglass Antenna WIFI6 4-6dBi 20x200
product detail
Product Introduction
The antenna's frequency range of 2.4~2.5GHz and 5.1~6GHz provides optimal coverage and reception for a variety of wireless applications. Whether you use Bluetooth, BLE, ZigBee or wireless LAN, our WIFI dual band antenna is the perfect solution for seamless connectivity.
Equipped with 5dBi gain, the antenna ensures reliable and consistent signal strength so you can enjoy an uninterrupted wireless connection.
To meet your specific needs and preferences, this product is available in SMA or N header connectors. This versatility ensures easy installation and compatibility with a wide range of equipment, giving you flexibility and convenience.
Designed with an omni-directional radiation pattern, the antenna has a wide coverage area and is suitable for a variety of environments and applications. Experience exceptional reliability and performance with very high efficiency and gain at 2.4 and 5.8GHz.
Product Specification
| Electrical Characteristics | ||
| Frequency | 2400-2500MHz | 5150-6000MHz |
| Impedance | 50 Ohm | 50 Ohm |
| S.W.R. | <1.6 | <1.6 |
| Gain | 4.5dBi | 6dBi |
| Efficiency | ≈81% | ≈84% |
| Horizontal Beamwidth | 360° | 360° |
| Vertical Beamwidth | 38°±5° | 28°±5° |
| Polarization | Linear | Linear |
| Max Power | 50W | 50W |
| Material & Mechanical Characteristics | ||
| Connector Type | N connector | |
| Dimension | Φ20*200mm | |
| Weight | 0.09Kg | |
| Radome material | Fiberglass | |
| Environmental | ||
| Operation Temperature | - 40 °C ~ + 80 °C | |
| Storage Temperature | - 40 °C ~ + 80 °C | |
Antenna Passive Parameter
VSWR

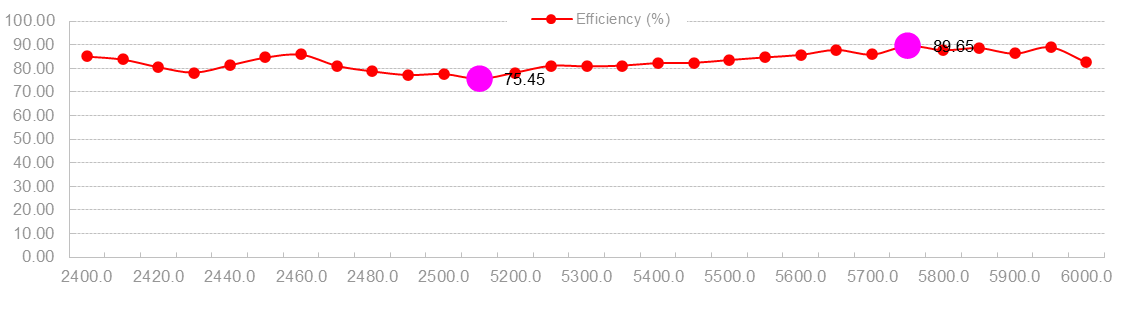

Efficiency & Gain
| Frequency(MHz) | 2400.0 | 2410.0 | 2420.0 | 2430.0 | 2440.0 | 2450.0 | 2460.0 | 2470.0 | 2480.0 | 2490.0 | 2500.0 |
| Gain (dBi) | 3.74 | 3.80 | 3.76 | 3.74 | 3.92 | 4.03 | 4.05 | 3.86 | 3.78 | 3.75 | 3.76 |
| Efficiency (%) | 85.04 | 83.75 | 80.47 | 78.18 | 81.27 | 84.60 | 85.85 | 81.07 | 78.67 | 77.11 | 77.54 |
| Frequency(MHz) | 5150.0 | 5200.0 | 5250.0 | 5300.0 | 5350.0 | 5400.0 | 5450.0 | 5500.0 | 5550.0 |
| Gain (dBi) | 3.41 | 3.22 | 3.32 | 3.34 | 3.50 | 3.39 | 3.16 | 3.47 | 3.80 |
| Efficiency (%) | 75.45 | 78.15 | 81.07 | 80.82 | 81.16 | 82.24 | 82.35 | 83.59 | 84.70 |
| Frequency(MHz) | 5600.0 | 5650.0 | 5700.0 | 5750.0 | 5800.0 | 5850.0 | 5900.0 | 5950.0 | 6000.0 |
| Gain (dBi) | 4.21 | 4.63 | 4.74 | 5.13 | 5.13 | 5.36 | 5.65 | 6.00 | 5.76 |
| Efficiency (%) | 85.77 | 87.91 | 85.91 | 89.65 | 87.76 | 88.68 | 86.28 | 89.02 | 82.53 |
Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
|---|---|---|---|
| 2400MHz |  |
 |
 |
| 2450MHz |  |
 |
 |
| 2500MHz |  |
 |
 |
| 3D | 2D-Horizontal | 2D-Vertical | |
|---|---|---|---|
| 5150MHz |  |
 |
 |
| 5500MHz |  |
 |
 |
| 5850MHz |  |
 |
 |
