Outdoor IP67 Omnidirectional Fiberglass Antenna 600-8000MHz 110×320
Product Introduction
This is a 5G/4G outdoor antenna, operating between 600MHz and 8GHz, covering all worldwide sub 6GHz 5G and 4G LTE bands and also the above 6GHz Extended Wi-Fi/Wi-Fi 6 Frequencies.
Typical Applications Include:
– Remote Monitoring
– Security
– Public Safety
Product Specification
| Electrical Characteristics | |||
| Frequency | 600-960MHz | 960-7800MHz | 7800-8000MHz |
| S.W.R. | <2.5 | <3.0 | <6.0 |
| Antenna Gain | 3dBi | 6dBi | 5dBi |
| Polarization | Linear | Linear | Linear |
| Horizontal Beamwidth | 360° | 60-230° | 60° |
| Vertical Beamwidth | 50-100° | 20-120° | 20-70° |
| Impedance | 50 Ohm | 50 Ohm | 50 Ohm |
| Max Power | 50W | 50W | 50W |
| Material & Mechanical Characteristics | |||
| Connector Type | N connector | ||
| Dimension | Φ110*320mm | ||
| Weight | 1.075Kg | ||
| Radome material | Fiberglass | ||
| Environmental | |||
| Operation Temperature | - 40 ˚C ~ + 80 ˚C | ||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | ||
| Rated Wind Velocity | 36.9m/s | ||
Antenna Passive Parameter
VSWR
Efficiency & Gain
|
Frequency(MHz) |
Gain(dBi) |
Efficiency (%) |
|
Frequency(MHz) |
Gain(dBi) |
Efficiency (%) |
|
600.0 |
0.27 |
61.27 |
4600.0 |
2.32 |
76.62 |
|
|
700.0 |
2.96 |
87.75 |
4700.0 |
2.81 |
78.79 |
|
|
800.0 |
1.62 |
80.81 |
4800.0 |
3.33 |
80.42 |
|
|
900.0 |
2.13 |
78.43 |
4900.0 |
3.25 |
82.32 |
|
|
1000.0 |
1.80 |
80.82 |
5000.0 |
2.84 |
73.57 |
|
|
1100.0 |
2.63 |
89.26 |
5100.0 |
2.96 |
73.22 |
|
|
1200.0 |
2.92 |
83.20 |
5200.0 |
3.49 |
76.38 |
|
|
1300.0 |
2.07 |
74.78 |
5300.0 |
3.90 |
75.87 |
|
|
1400.0 |
2.94 |
83.75 |
5400.0 |
4.01 |
75.76 |
|
|
1500.0 |
3.30 |
81.59 |
5500.0 |
4.26 |
70.52 |
|
|
1600.0 |
3.56 |
92.05 |
5600.0 |
4.75 |
71.00 |
|
|
1700.0 |
3.12 |
83.74 |
5700.0 |
5.73 |
80.14 |
|
|
1800.0 |
2.45 |
77.38 |
5800.0 |
5.93 |
77.99 |
|
|
1900.0 |
2.21 |
73.92 |
5900.0 |
5.91 |
76.29 |
|
|
2000.0 |
1.92 |
79.86 |
6000.0 |
5.60 |
69.70 |
|
|
2100.0 |
1.40 |
80.07 |
6100.0 |
5.36 |
68.28 |
|
|
2200.0 |
1.81 |
78.00 |
6200.0 |
5.36 |
72.87 |
|
|
2300.0 |
1.96 |
80.65 |
6300.0 |
5.43 |
78.21 |
|
|
2400.0 |
2.85 |
84.33 |
6400.0 |
5.21 |
77.65 |
|
|
2500.0 |
3.80 |
82.33 |
6500.0 |
4.43 |
73.09 |
|
|
2600.0 |
2.52 |
79.80 |
6600.0 |
4.41 |
73.61 |
|
|
2700.0 |
2.80 |
83.54 |
6700.0 |
4.18 |
76.04 |
|
|
2800.0 |
3.18 |
80.53 |
6800.0 |
4.29 |
77.68 |
|
|
2900.0 |
4.14 |
86.38 |
6900.0 |
4.75 |
83.76 |
|
|
3000.0 |
3.50 |
73.01 |
7000.0 |
4.94 |
80.22 |
|
|
3100.0 |
2.26 |
69.32 |
7100.0 |
5.30 |
79.30 |
|
|
3200.0 |
2.12 |
68.92 |
7200.0 |
5.13 |
78.00 |
|
|
3300.0 |
2.56 |
75.14 |
7300.0 |
4.71 |
79.00 |
|
|
3400.0 |
2.88 |
75.35 |
7400.0 |
5.07 |
85.74 |
|
|
3500.0 |
3.24 |
82.55 |
7500.0 |
5.23 |
82.78 |
|
|
3600.0 |
3.51 |
85.16 |
7600.0 |
5.00 |
79.16 |
|
|
3700.0 |
3.85 |
81.19 |
7700.0 |
4.79 |
80.30 |
|
|
3800.0 |
3.45 |
82.05 |
7800.0 |
4.81 |
79.92 |
|
|
3900.0 |
3.36 |
88.25 |
7900.0 |
5.02 |
77.99 |
|
|
4000.0 |
3.35 |
87.86 |
8000.0 |
4.70 |
68.08 |
|
|
4100.0 |
3.26 |
85.14 |
8100.0 |
4.63 |
68.50 |
|
|
4200.0 |
2.70 |
81.37 |
8200.0 |
4.77 |
70.14 |
|
|
4300.0 |
2.80 |
81.05 |
8300.0 |
5.19 |
72.39 |
|
|
4400.0 |
2.81 |
83.07 |
8400.0 |
5.37 |
76.90 |
|
|
4500.0 |
2.76 |
83.30 |
8500.0 |
5.02 |
73.20 |
Radiation Pattern
|
|

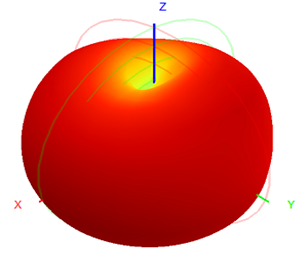

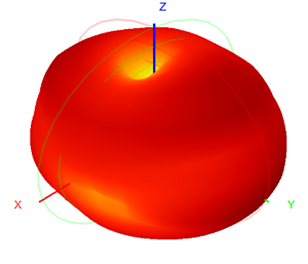

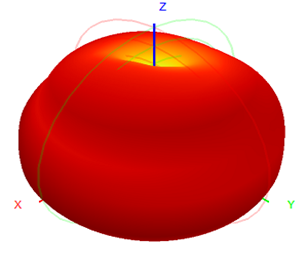

3D |

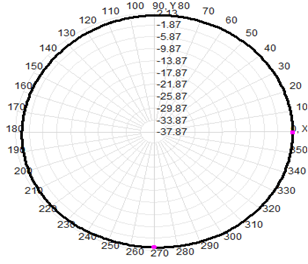

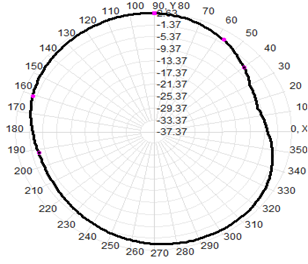

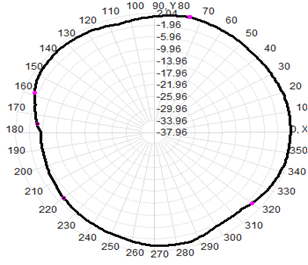

2D-Horizontal |

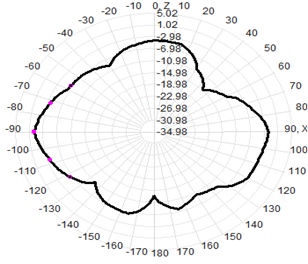

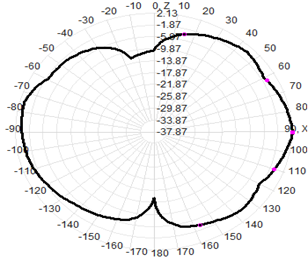

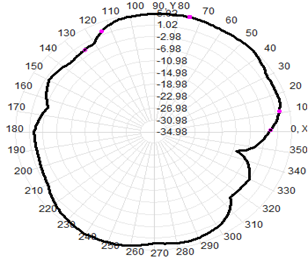

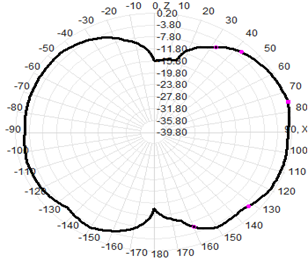

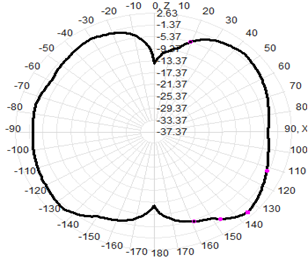

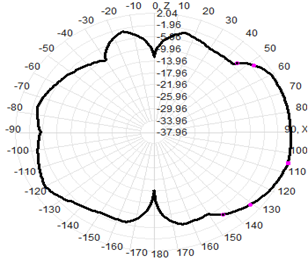

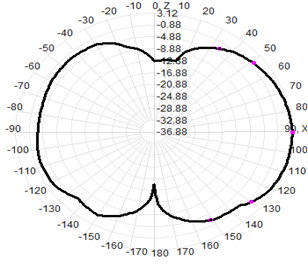

2D-Vertical |
|
600MHz |
 |
 |
 |
|
900MHz |
 |
 |
 |
|
1700MHz |
 |
 |
 |
|
|

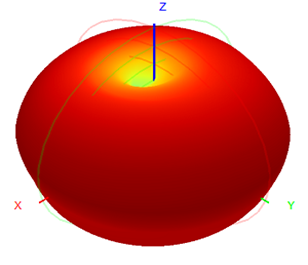

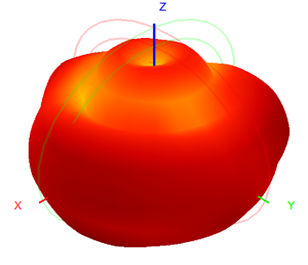

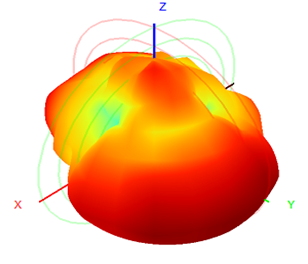

3D |
2D-Horizontal |
2D-Vertical |
|
2700MHz |
 |
 |
 |
|
5000MHz |
 |
 |
 |
|
8000MHz |
 |
 |
 |
