Omnidirectional fiberglass Antenna 5G 600-6000MHz 3.6-6dB 20×300

Short Description:

Frequency: 600-6000MHz

Gain: 3.6-6dBi

N Connector

IP67 Waterproof

Dimension: Φ20*300mm


Product Detail

Product Tags

Product Introduction

600-6000MHz omnidirectional fiberglass Antennas are designed for high efficiency and peak gain to deliver excellent throughput for access points and terminals. The antennas work on all major cellular (5G/4G/3G/2G) frequency bands. It can enhance WiFi and 5G signals, transmit and receive signals, and improve network quality.

Product Specification

Electrical Characteristics
Frequency 617-960MHz 1710-6000MHz
Impedance 50 Ohm 50 Ohm
S.W.R. <4.0 <4.0
Gain 3.6dBi 6dBi
Efficiency ≈64% ≈68%
Horizontal Beamwidth 360° 360°
Vertical Beamwidth 28°@868MHz 28°@1980MHz
Polarization Linear Linear
Max Power 50W 50W
Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ20*300mm
Weight 0.14Kg
Radome material Fiberglass
Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C



Antenna Passive Parameter

VSWR

30CM-5G

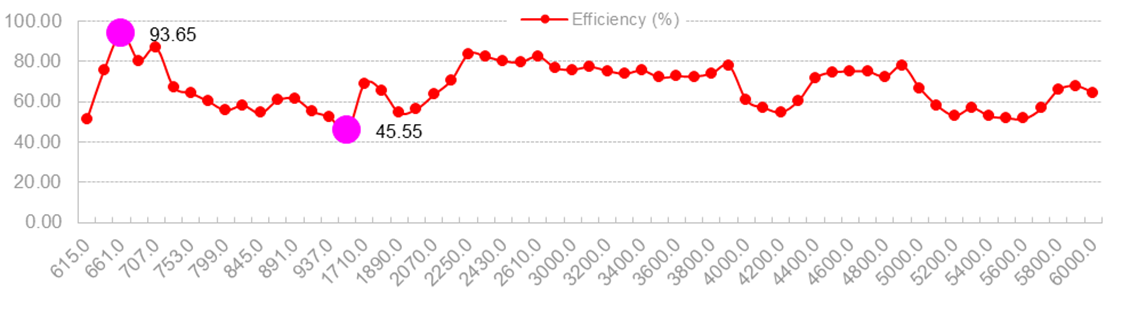

Efficiency & Gain

Frequency (MHz)

615

638

661

684

707

730

753

776

799

822

845

868

891

914

937

960

Gain (dBi)

-0.24

1.66

2.44

1.79

1.80

0.63

0.62

1.04

1.47

2.15

2.45

3.48

3.65

3.15

2.70

1.84

Efficiency (%)

51.16

75.70

93.65

80.42

86.71

67.41

64.36

60.25

55.85

58.30

54.46

60.78

61.59

55.34

52.42

45.55

Frequency (MHz)

1710

1800

1890

1980

2070

2160

2250

2340

2430

2520

2610

2700

Gain (dBi)

1.74

1.61

0.60

1.48

1.36

2.55

3.71

4.19

4.08

4.23

4.03

4.27

Efficiency (%)

68.94

65.56

54.64

56.46

63.49

70.66

83.62

82.27

80.10

79.54

82.49

76.74

Frequency (MHz)

3000

3100

3200

3300

3400

3500

3600

3700

3800

3900

4000

4100

4200

4300

4400

4500

Gain (dBi)

2.98

4.23

4.87

4.20

5.18

5.29

5.68

6.00

5.91

5.61

4.02

4.82

4.06

5.09

5.88

5.81

Efficiency (%)

75.90

77.26

75.28

73.90

75.51

72.07

72.66

72.48

74.07

77.89

60.91

57.14

54.94

60.54

71.85

74.56

Frequency (MHz)

4600

4700

4800

4900

5000

5100

5200

5300

5400

5500

5600

5700

5800

5900

6000

Gain (dBi)

5.69

5.35

5.04

5.46

4.69

4.25

3.88

4.17

3.33

3.64

4.54

5.27

6.10

6.10

6.12

Efficiency (%)

75.00

75.02

72.46

77.80

66.59

58.18

53.17

57.01

53.00

52.07

51.65

56.68

66.11

67.85

64.59

Radiation Pattern



3D

2D-Horizontal

2D-Vertical

615MHz



868MHz



960MHz





3D

2D-Horizontal

2D-Vertical

1710MHz



2250MHz



2700MHz





3D

2D-Horizontal

2D-Vertical

3000MHz



4500MHz



6000MHz
