Outdoor Flat Panel Antenna 2.4&5.8GHz 14dBi 290x205x40
Product Introduction
This is a professional quality antenna designed primarily for MIMO point-to-multipoint and point-to-point applications in the 2.4 GHz and 5.8GHz frequency bands.
This aesthetically pleasing antenna features a heavy-duty UV-resistant plastic radome ideal for all-weather indoor and outdoor operation. This antenna is supplied with a tilt and swivel mast mount kit. This allows quick installation at various degrees of up/down tilt for easy alignment.
Application:
2.4/5.8 GHz Indoor/Outdoor Wireless LAN systems
Hospitality, Industrial, Municipality
Product Specification
|
Electrical Characteristics |
||
| Port |
Port1 |
Port2 |
| Frequency | 2400-2500MHz | 5180-5320MHz |
| S.W.R. | <= 1.8 | <= 1.8 |
| Antenna Gain | 14dBi | 14dBi |
| Polarization | Vertical | Vertical |
| Horizontal Beamwidth | 40-42° | 25-26° |
| Vertical Beamwidth | 36-38° | 35-38° |
| F/B | >32dB | >28dB |
| Impedance | 50Ohm | 50Ohm |
| Max. Power | 50W | 50W |
|
Material & Mechanical Characteristics |
||
| Connector Type | N connector | |
| Dimension | 290*205*40mm | |
| Radome material | ASA | |
| Mount Pole | ∅30-∅75 | |
| Weight | 1.4Kg | |
|
Environmental |
||
| Operation Temperature | - 40 ˚C ~ + 85 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C | |
| Operation Humidity | ＜95% | |
| Rated Wind Velocity | 36.9m/s | |
Antenna Passive Parameter
VSWR
Gain
|
Port 1 |
|
Port 2 |
||
|
Frequency(MHz) |
Gain(dBi) |
Frequency(MHz) |
Gain(dBi) |
|
|
2400 |
13.3 |
5180 |
14.6 |
|
|
2410 |
13.4 |
5190 |
14.8 |
|
|
2420 |
13.4 |
5200 |
14.7 |
|
|
2430 |
13.4 |
5210 |
14.9 |
|
|
2440 |
13.4 |
5220 |
14.7 |
|
|
2450 |
13.5 |
5230 |
14.6 |
|
|
2460 |
13.6 |
5240 |
14.5 |
|
|
2470 |
13.6 |
5250 |
14.5 |
|
|
2480 |
13.6 |
5260 |
14.7 |
|
|
2490 |
13.6 |
5270 |
14.6 |
|
|
2500 |
13.6 |
5280 |
14.4 |
|
|
|
|
5290 |
14.8 |
|
|
|
|
5300 |
14.5 |
|
|
|
|
5310 |
14.5 |
|
|
|
|
5320 |
14.7 |
|
|
|
|
|
|
|
Radiation Pattern
|

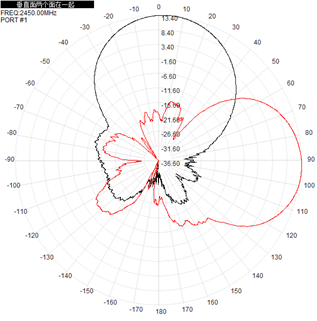

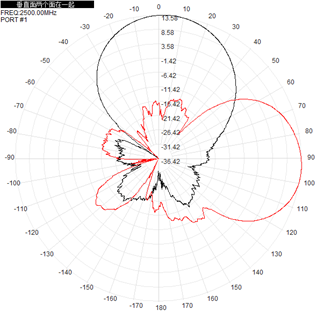

Port 1 |

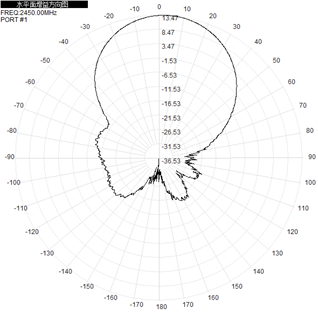

2D-Horizontal |

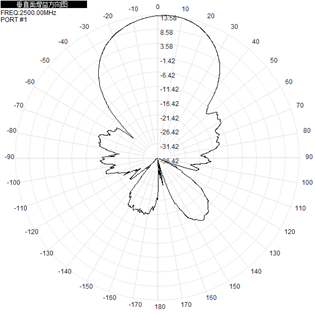

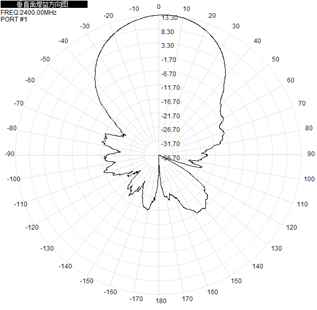

2D-Vertical |

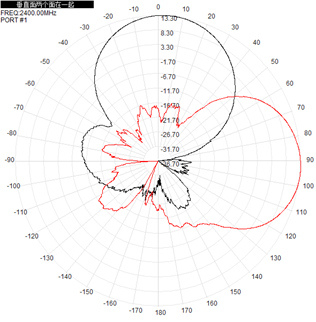

Horizontal&Vertical |
|
2400MHz |
 |
 |
 |
|
2450MHz |
 |
 |
 |
|
2500MHz |
 |
 |
 |
|

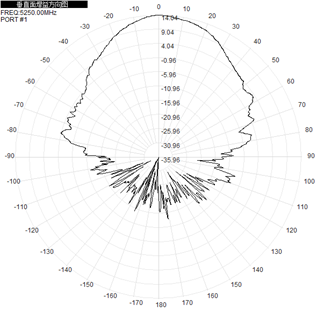

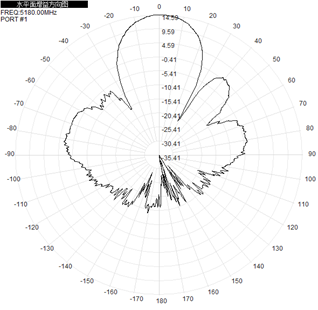

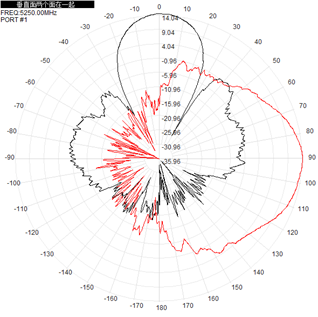

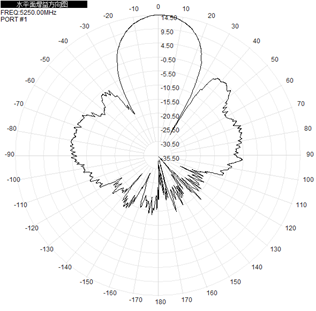

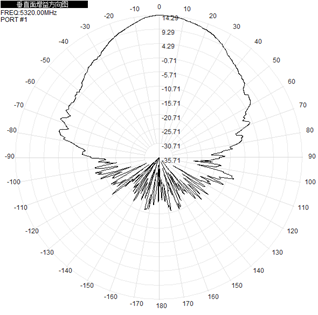

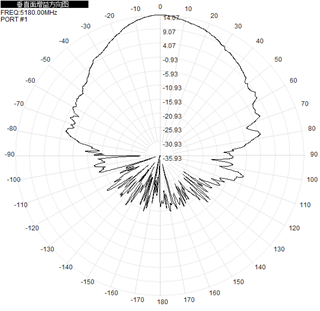

Port 2 |

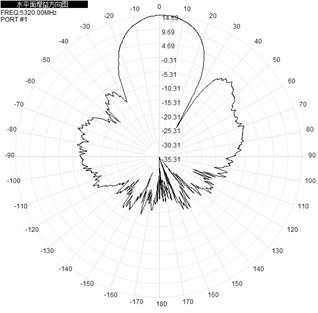

2D-Horizontal |
2D-Vertical |

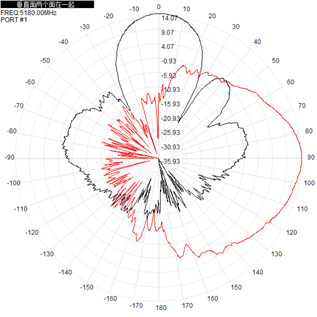

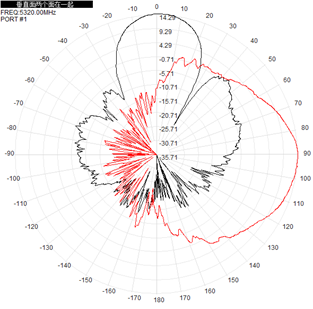

Horizontal&Vertical |
|
5180MHz |
 |
 |
 |
|
5250MHz |
 |
 |
 |
|
5320MHz |
 |
 |
 |
