Directional Flat Panel Antenna 2.4&5.8GHz 3.7-4.2GHz 290x205x40
Product Introduction
This antenna is designed as a directional antenna with 3 ports and is suitable for multi-band applications. The frequency range of each port is 2400-2500MHz, 3700-4200MHz and 5150-5850MHz respectively, which can meet the needs of different frequencies.
The gain range of this antenna is 10-14dBi, which means it can provide relatively high gain in signal transmission and improve the reception and transmission performance of wireless signals. The selection of gain range can be adjusted and optimized according to specific application needs.
In order to resist damage from ultraviolet rays, the antenna radome is made of anti-UV material. This material can effectively prevent solar ultraviolet radiation, reduce the risk of aging and damage to the cover, and extend the service life of the antenna.
This antenna has IP67 level waterproof performance. The IP67 rating means this antenna has excellent protection against liquids and dust. It can be used in humid environments for a long time and has good water resistance.
To sum up, the solution includes multi-band support, high-gain performance, UV-resistant materials and waterproof-rated directional antennas. These characteristics make the antenna have good stability and reliability in wireless communication applications in outdoor environments.
Product Specification
| Electrical Characteristics | |||
| Port |
Port1 |
Port2 |
Port3 |
| Frequency | 2400-2500MHz | 3700-4200MHz | 5150-5850MHz |
| S.W.R. | <2.0 | <2.0 | <2.0 |
| Antenna Gain | 10dBi | 13dBi | 14dBi |
| Polarization | Vertical | Vertical | Vertical |
| Horizontal Beamwidth | 105±6° | 37±3° | 46±4° |
| Vertical Beamwidth | 25±2° | 35±5° | 34±2° |
| F/B | >20dB | >25dB | >23dB |
| Impedance | 50Ohm | 50Ohm | 50Ohm |
| Max. Power | 50W | 50W | 50W |
| Material & Mechanical Characteristics | |||
| Connector Type | N connector | ||
| Dimension | 290*205*40mm | ||
| Radome material | ASA | ||
| Mount Pole | ∅30-∅75 | ||
| Weight | 1.6Kg | ||
| Environmental | |||
| Operation Temperature | - 40 ˚C ~ + 85 ˚C | ||
| Storage Temperature | - 40 ˚C ~ + 85 ˚C | ||
| Operation Humidity | ＜95% | ||
| Rated Wind Velocity | 36.9m/s | ||
Antenna Passive Parameter

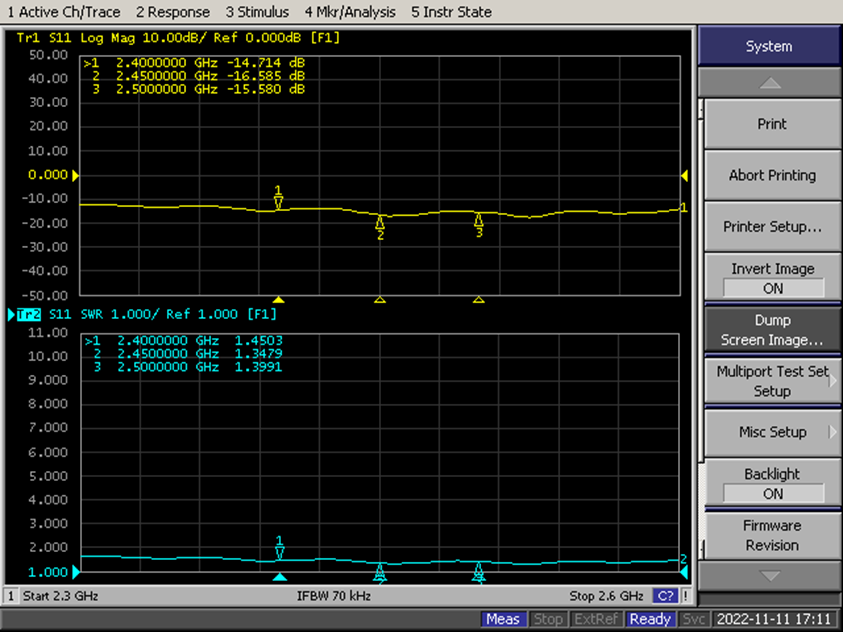

VSWR
Port1
Port2
Port3
Gain
|
Port 1 |
|
Port 2 |
|
Port 3 |
|||
|
Frequency(MHz) |
Gain(dBi) |
Frequency(MHz) |
Gain(dBi) |
Frequency(MHz) |
Gain(dBi) |
||
|
2400 |
10.496 |
3700 |
13.032 |
5100 |
13.878 |
||
|
2410 |
10.589 |
3750 |
13.128 |
5150 |
14.082 |
||
|
2420 |
10.522 |
3800 |
13.178 |
5200 |
13.333 |
||
|
2430 |
10.455 |
3850 |
13.013 |
5250 |
13.544 |
||
|
2440 |
10.506 |
3900 |
13.056 |
5300 |
13.656 |
||
|
2450 |
10.475 |
3950 |
13.436 |
5350 |
13.758 |
||
|
2460 |
10.549 |
4000 |
13.135 |
5400 |
13.591 |
||
|
2470 |
10.623 |
4050 |
13.467 |
5450 |
13.419 |
||
|
2480 |
10.492 |
4100 |
13.566 |
5500 |
13.516 |
||
|
2490 |
10.345 |
4150 |
13.492 |
5550 |
13.322 |
||
|
2500 |
10.488 |
4200 |
13.534 |
5600 |
13.188 |
||
|
|
|
|
|
5650 |
13.185 |
||
|
|
|
|
|
5700 |
13.153 |
||
|
|
|
|
|
5750 |
13.243 |
||
|
|
|
|
|
5800 |
13.117 |
||
|
|
|
|
|
5850 |
13.175 |
||
|
|
|
|
|
5900 |
13.275 |
||
|
|
|
|
|
|
|
||

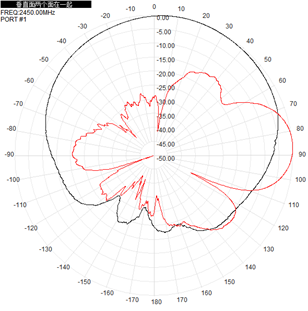

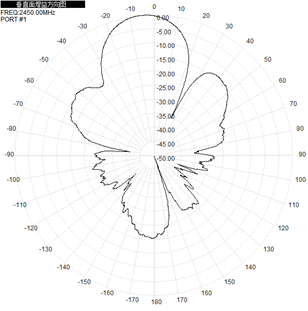

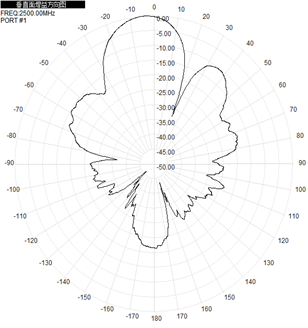

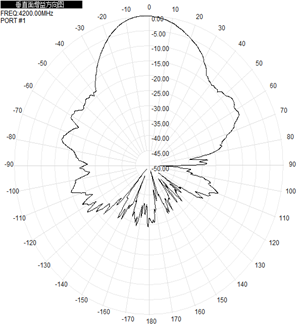

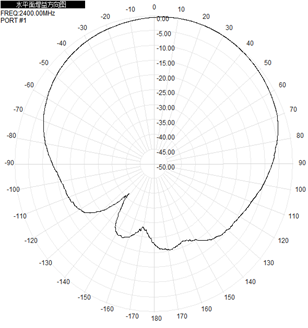

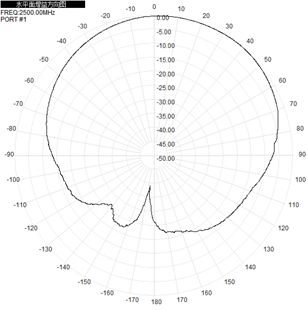

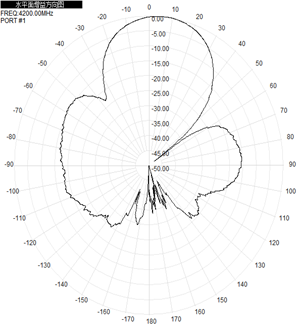

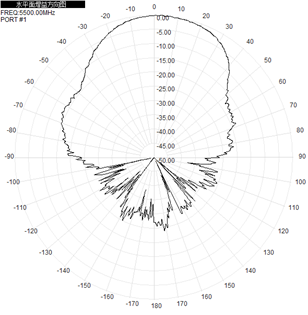

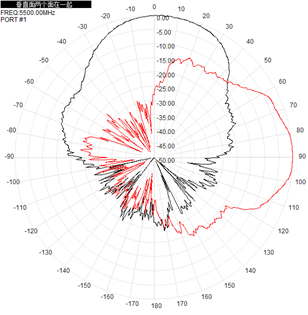

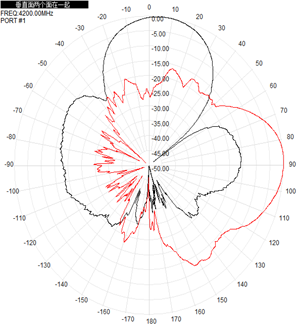

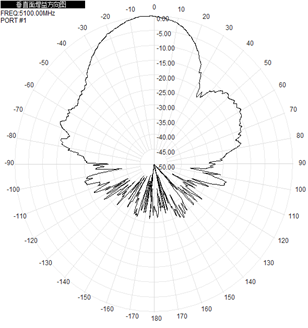

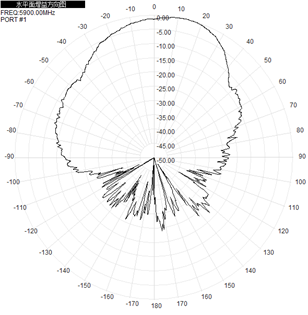

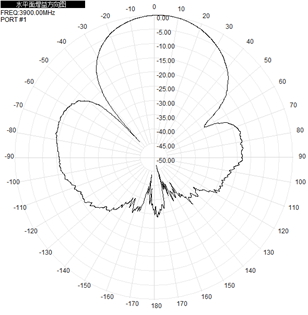

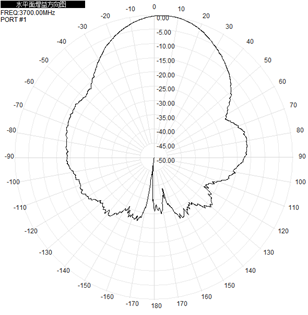

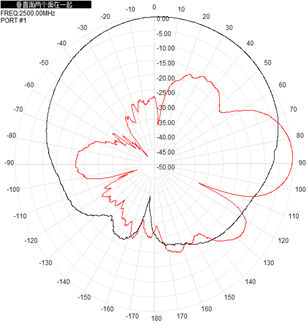

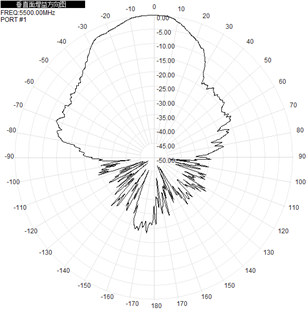

Radiation Pattern
| Port 1 |
2D-Horizontal |
2D-Vertical |
Horizontal & Vertical |
|
2400MHz |
 |
 |
 |
|
2450MHz |
 |
 |
 |
|
2500MHz |
 |
 |
 |
| Port 2 |
2D-Horizontal |
2D-Vertical |
Horizontal & Vertical |
|
3700MHz |
 |
 |
 |
|
3900MHz |
 |
 |
 |
|
4200MHz |
 |
 |
 |
| Port 3 |
2D-Horizontal |
2D-Vertical |
Horizontal & Vertical |
|
5150MHz |
 |
 |
 |
|
5550MHz |
 |
 |
 |
|
5900MHz |
 |
 |
 |
