Outdoor Flat Panel antenna 6250-6750MHz 13dBi N connector
Product Introduction
6250-6750MHz directional antenna, gain 13dBi, providing you with stable signal transmission and high-quality communication experience.
This antenna is particularly suitable for coal mine environments and provides strong support for your work.
In addition to the coal mine field, our directional antennas can also be widely used in other industries, such as construction sites, factories, ports and other places that require efficient communication.
Product Specification
|
Electrical Characteristics |
|
| Frequency | 6250-6750MHz |
| S.W.R. | <= 1.8 |
| Antenna Gain | 13dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 29-35° |
| Vertical Beamwidth | 23-29° |
| F/B | >23dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
|
Material & Mechanical Characteristics |
|
| Connector Type | N connector |
| Dimension | 140*120*25mm |
| Radome material | ABS |
| Weight | 0.45Kg |
|
Environmental |
|
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
Antenna Passive Parameter
VSWR
Gain
|
Frequency(MHz) |
Gain(dBi) |
|
6250 |
13.3 |
|
6300 |
13.5 |
|
6350 |
12.9 |
|
6400 |
13.0 |
|
6450 |
12.7 |
|
6500 |
13.1 |
|
6550 |
12.4 |
|
6600 |
12.3 |
|
6650 |
12.9 |
|
6700 |
12.8 |
|
6750 |
12.4 |

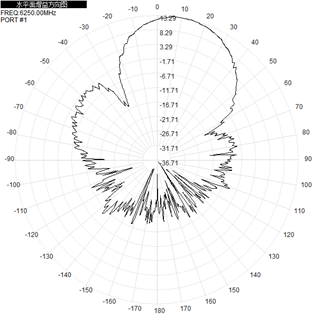

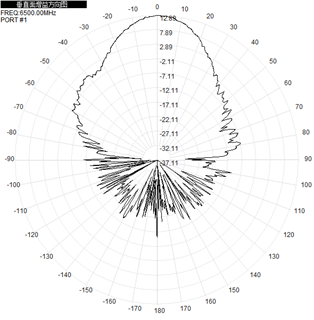

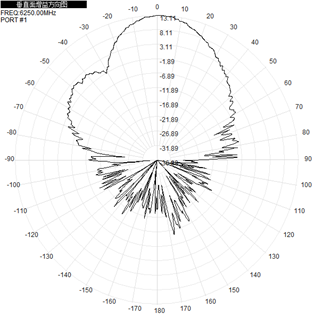

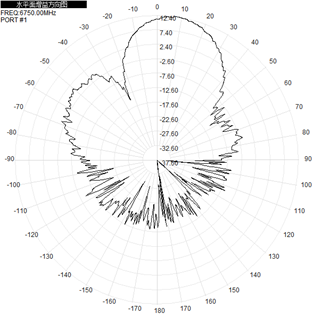

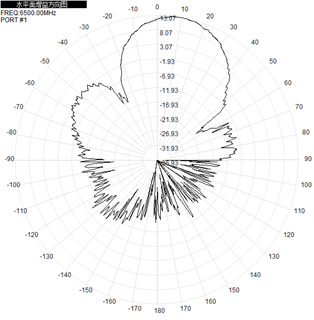

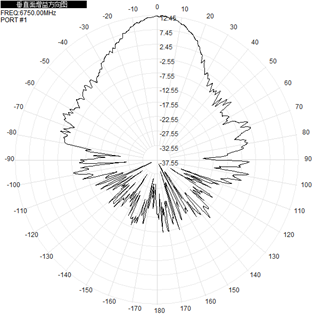

Radiation Pattern
|
|
2D- Horizontal |
2D-Vertical |
2D-Horizontal & Vertical |
|
6250MHz |
 |
 |
 |
|
6500MHz |
 |
 |
 |
|
6750MHz |
 |
 |
 |
