UWB antenna PCB antenna 1.3GHz-13.4GHz 9dBi
Product Introduction
This is a UWB antenna with an Ultra-Wideband Antenna 1.3Ghz to 13.4Ghz PCB Antenna with a female SMA connector high-gain antenna indoor PCB trace antenna manufactured.
The UWB Antenna Ultra Wideband Antenna comes with a 80x72mm PCB board size and a 9dBi high-gain for wireless transmission
Product Specification
| Electrical Characteristics | ||
| Frequency | 1.3-8.5GHz | 8.5-13.4GHz |
| S.W.R. | <3.0 | <3.0 |
| Antenna Gain | 9dBi | 9dBi |
| Polarization | Vertical | Vertical |
| Horizontal Beamwidth | 30°- 360° | 30°- 360° |
| Vertical Beamwidth | 40°- 100° | 45°- 65° |
| Impedance | 50Ohm | 50Ohm |
| Max. Power | 50W | 50W |
| Material & Mechanical Characteristics | ||
| Connector Type | SMA connector | |
| Dimension | 80*72*0.6mm | |
| Weight | 0.01Kg | |
| Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 85 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C | |
| Operation Humidity | ＜95% | |
Antenna Passive Parameter
VSWR
Efficiency & Gain
|
1300-8500MHz |
||||||
|
Frequency(MHz) |
Gain(dBi) |
Efficiency (%) |
|
Frequency (MHz) |
Gain (dBi) |
Efficiency (%) |
|
1300.0 |
0.01 |
62.20 |
5000.0 |
6.48 |
78.29 |
|
|
1400.0 |
1.76 |
74.00 |
5100.0 |
6.40 |
78.50 |
|
|
1500.0 |
2.17 |
79.68 |
5200.0 |
6.76 |
79.44 |
|
|
1600.0 |
2.02 |
78.78 |
5300.0 |
8.19 |
88.59 |
|
|
1700.0 |
3.03 |
70.77 |
5400.0 |
7.32 |
87.10 |
|
|
1800.0 |
2.16 |
68.60 |
5500.0 |
8.42 |
84.79 |
|
|
1900.0 |
2.80 |
61.06 |
5600.0 |
7.70 |
86.74 |
|
|
2000.0 |
2.20 |
64.02 |
5700.0 |
7.97 |
90.83 |
|
|
2100.0 |
2.04 |
67.85 |
5800.0 |
8.38 |
89.74 |
|
|
2200.0 |
3.06 |
67.08 |
5900.0 |
8.49 |
88.75 |
|
|
2300.0 |
2.43 |
65.19 |
6000.0 |
8.08 |
89.51 |
|
|
2400.0 |
2.55 |
64.84 |
6100.0 |
7.72 |
87.95 |
|
|
2500.0 |
2.61 |
61.57 |
6200.0 |
7.87 |
87.79 |
|
|
2600.0 |
3.81 |
67.20 |
6300.0 |
8.12 |
87.11 |
|
|
2700.0 |
3.08 |
72.82 |
6400.0 |
7.45 |
86.42 |
|
|
2800.0 |
3.32 |
72.87 |
6500.0 |
7.37 |
87.14 |
|
|
2900.0 |
3.75 |
75.42 |
6600.0 |
7.91 |
84.92 |
|
|
3000.0 |
3.75 |
71.12 |
6700.0 |
8.14 |
88.13 |
|
|
3100.0 |
3.70 |
72.08 |
6800.0 |
7.76 |
84.09 |
|
|
3200.0 |
3.66 |
71.22 |
6900.0 |
8.30 |
88.31 |
|
|
3300.0 |
3.42 |
71.21 |
7000.0 |
8.84 |
84.68 |
|
|
3400.0 |
4.06 |
75.37 |
7100.0 |
8.74 |
77.76 |
|
|
3500.0 |
4.27 |
75.97 |
7200.0 |
8.07 |
82.01 |
|
|
3600.0 |
4.93 |
81.77 |
7300.0 |
7.93 |
81.13 |
|
|
3700.0 |
5.24 |
84.23 |
7400.0 |
8.66 |
86.86 |
|
|
3800.0 |
4.50 |
88.16 |
7500.0 |
7.98 |
74.31 |
|
|
3900.0 |
4.86 |
85.81 |
7600.0 |
7.81 |
69.83 |
|
|
4000.0 |
5.53 |
85.43 |
7700.0 |
7.58 |
65.39 |
|
|
4100.0 |
5.60 |
88.00 |
7800.0 |
8.00 |
70.00 |
|
|
4200.0 |
6.12 |
86.25 |
7900.0 |
7.95 |
67.45 |
|
|
4300.0 |
6.17 |
84.47 |
8000.0 |
7.43 |
63.03 |
|
|
4400.0 |
6.13 |
84.50 |
8100.0 |
7.20 |
60.49 |
|
|
4500.0 |
6.32 |
86.50 |
8200.0 |
7.36 |
61.42 |
|
|
4600.0 |
6.32 |
83.36 |
8300.0 |
8.04 |
69.58 |
|
|
4700.0 |
5.87 |
84.05 |
8400.0 |
8.21 |
78.04 |
|
|
4800.0 |
6.46 |
81.94 |
8500.0 |
7.90 |
78.03 |
|
|
4900.0 |
6.99 |
84.11 |
|
|
|
|
|
8500-13400MHz |
||||||
|
Frequency(MHz) |
Gain(dBi) |
Efficiency (%) |
|
Frequency (MHz) |
Gain (dBi) |
Efficiency (%) |
|
8500.0 |
7.90 |
83.18 |
12200.0 |
6.91 |
78.64 |
|
|
8600.0 |
7.60 |
75.21 |
12300.0 |
6.57 |
79.73 |
|
|
8700.0 |
8.01 |
78.29 |
12400.0 |
6.36 |
79.08 |
|
|
8800.0 |
8.35 |
78.20 |
12500.0 |
6.49 |
78.76 |
|
|
8900.0 |
8.72 |
88.91 |
12600.0 |
6.47 |
74.43 |
|
|
9000.0 |
8.35 |
86.15 |
12700.0 |
6.99 |
82.11 |
|
|
9100.0 |
8.60 |
86.63 |
12800.0 |
6.62 |
78.16 |
|
|
9200.0 |
8.91 |
87.64 |
12900.0 |
6.81 |
75.23 |
|
|
9300.0 |
9.02 |
92.17 |
13000.0 |
7.53 |
81.33 |
|
|
9400.0 |
9.02 |
99.19 |
13100.0 |
7.46 |
81.22 |
|
|
9500.0 |
8.68 |
94.94 |
13200.0 |
7.49 |
84.20 |
|
|
9600.0 |
8.53 |
93.97 |
13300.0 |
7.32 |
84.78 |
|
|
9700.0 |
8.35 |
89.70 |
13400.0 |
7.34 |
74.56 |
|
|
9800.0 |
8.20 |
85.51 |
|
|
|
|
|
9900.0 |
8.57 |
88.71 |
|
|
|
|
|
10000.0 |
8.36 |
83.09 |
|
|
|
|
|
10100.0 |
8.22 |
84.35 |
|
|
|
|
|
10200.0 |
7.97 |
83.75 |
|
|
|
|
|
10300.0 |
8.10 |
84.91 |
|
|
|
|
|
10400.0 |
8.28 |
86.02 |
|
|
|
|
|
10500.0 |
8.59 |
86.57 |
|
|
|
|
|
10600.0 |
8.29 |
86.14 |
|
|
|
|
|
10700.0 |
7.97 |
86.30 |
|
|
|
|
|
10800.0 |
7.77 |
85.88 |
|
|
|
|
|
10900.0 |
7.62 |
78.93 |
|
|
|
|
|
11000.0 |
8.21 |
84.62 |
|
|
|
|
|
11100.0 |
8.10 |
84.63 |
|
|
|
|
|
11200.0 |
8.19 |
94.51 |
|
|
|
|
|
11300.0 |
7.55 |
91.72 |
|
|
|
|
|
11400.0 |
7.67 |
92.95 |
|
|
|
|
|
11500.0 |
7.39 |
90.51 |
|
|
|
|
|
11600.0 |
7.14 |
86.59 |
|
|
|
|
|
11700.0 |
7.31 |
93.80 |
|
|
|
|
|
11800.0 |
7.15 |
89.58 |
|
|
|
|
|
11900.0 |
7.33 |
92.23 |
|
|
|
|
|
12000.0 |
6.48 |
78.59 |
|
|
|
|
|
12100.0 |
6.93 |
78.46 |
|
|
|
|

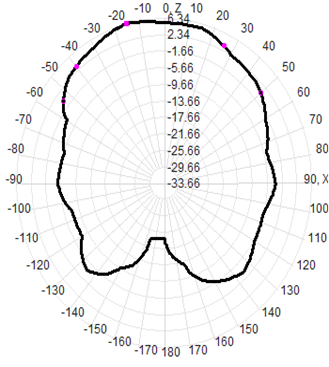

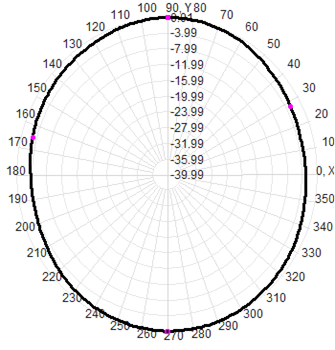

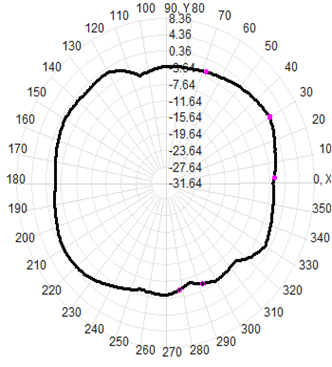

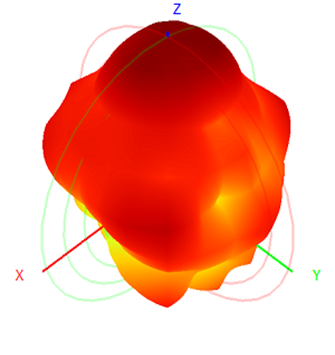

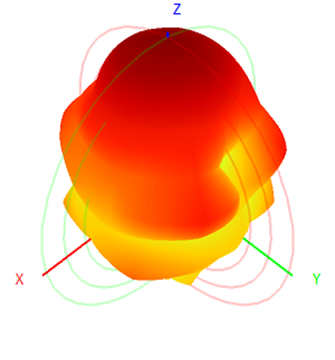

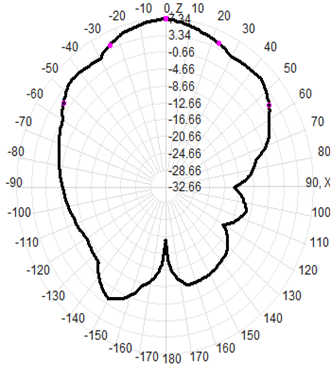

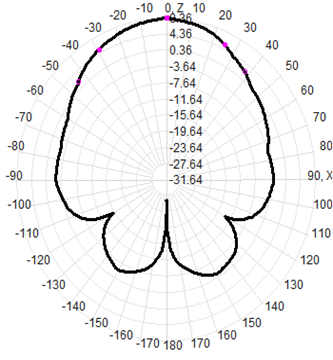

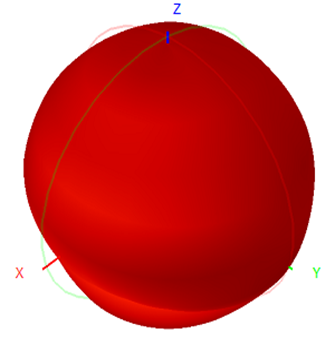

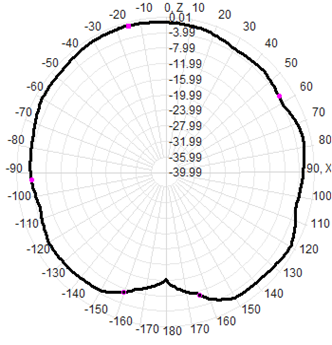

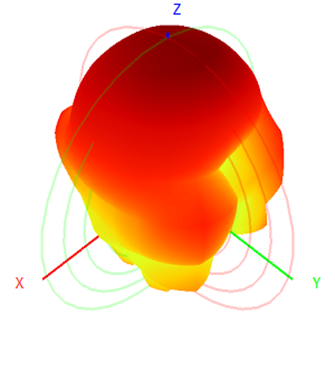

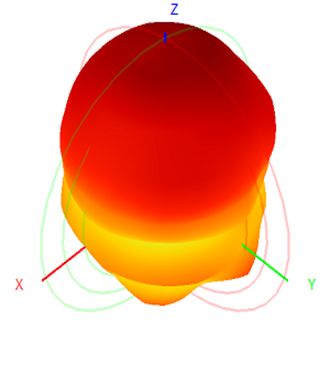

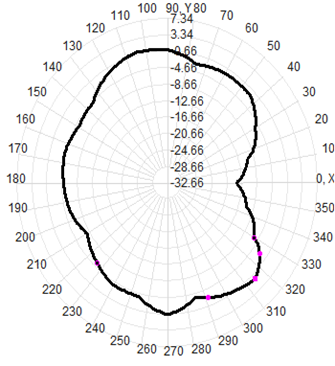

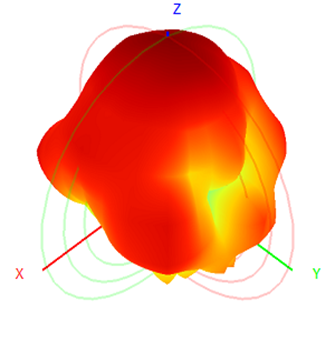

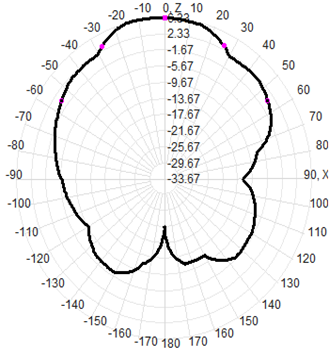

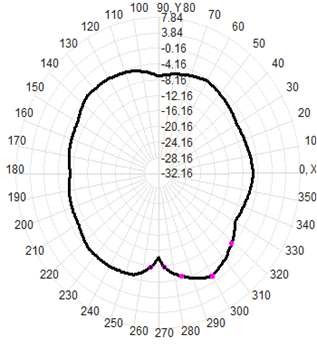

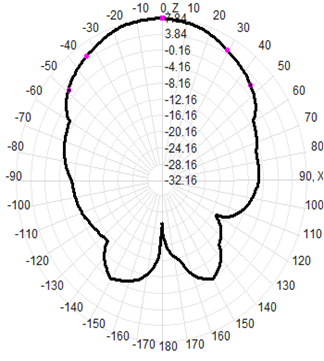

Radiation Pattern
|
|
3D |
Horizontal |
Vertical |
|
1300MHz |
 |
 |
 |
|
5000MHz |
 |
 |
 |
|
8500MHz |
 |
 |
 |
|
|
3D |
Horizontal |
Vertical |
|
10000MHz |
 |
 |
 |
|
12000MHz |
 |
 |
 |
|
13400MHz |
 |
 |
 |
