Panel Antennas
UWB antenna PCB antenna 600MHz-10GHz 9dBi
product detail
Product Introduction
This is a UWB antenna with an Ultra-Wideband Antenna 1.3Ghz to 13.4Ghz PCB Antenna with a female SMA connector high-gain antenna indoor PCB trace antenna manufactured.
The UWB Antenna Ultra Wideband Antenna comes with a 120x120mm PCB board size and a 9dBi high-gain for wireless transmission.
Product Specification
| Electrical Characteristics | |||
| Frequency | 600-960MHz | 1710-8500MHz | 8500-10000MHz |
| S.W.R. | <4.0 | <2.5 | <3.0 |
| Antenna Gain | 1.6dBi | 9dBi | 7.6dBi |
| Polarization | Vertical | Vertical | Vertical |
| Horizontal Beamwidth | 95°- 115° | 20°- 360° | 25°- 75° |
| Vertical Beamwidth | 93°- 150° | 50°- 180° | 60°- 90° |
| Impedance | 50Ohm | 50Ohm | 50Ohm |
| Max. Power | 50W | 50W | 50W |
| Material & Mechanical Characteristics | |||
| Connector Type | SMA connector | ||
| Dimension | 120*120*1.0mm | ||
| Weight | 0.035Kg | ||
| Environmental | |||
| Operation Temperature | - 40 ˚C ~ + 85 ˚C | ||
| Storage Temperature | - 40 ˚C ~ + 85 ˚C | ||
| Operation Humidity | ＜95% | ||

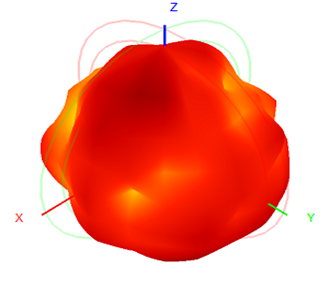

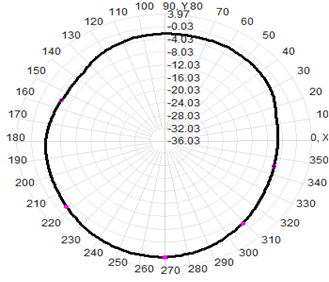

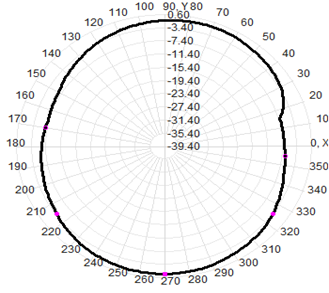

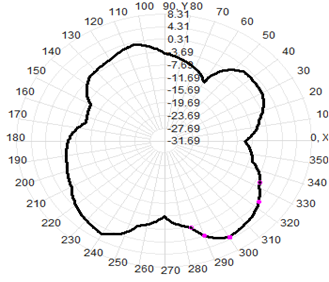

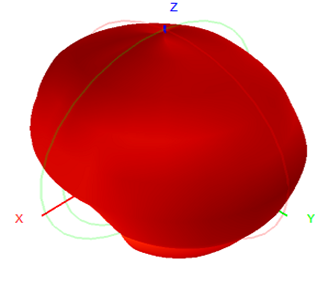

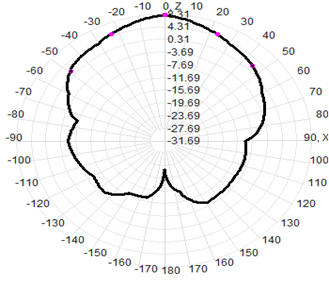

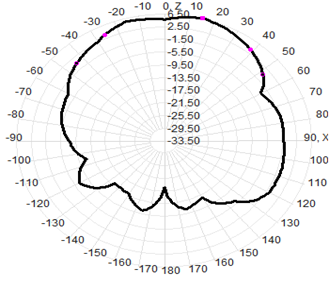

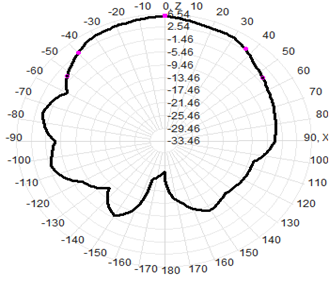

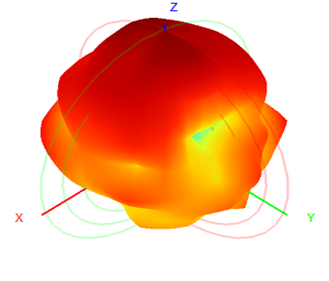

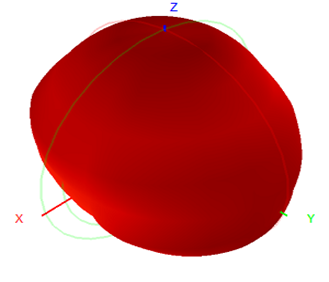

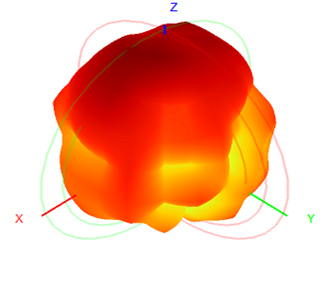

Antenna Passive Parameter
VSWR
Efficiency & Gain
|
600-7000MHz |
|||||
|
Frequency(MHz) |
Gain(dBi) |
Efficiency (%) |
Frequency (MHz) |
Gain (dBi) |
Efficiency (%) |
|
600.0 |
0.15 |
49.71 |
3400.0 |
7.40 |
78.16 |
|
630.0 |
0.18 |
44.32 |
3500.0 |
7.90 |
77.09 |
|
660.0 |
0.72 |
49.57 |
3600.0 |
7.63 |
80.42 |
|
690.0 |
0.79 |
54.08 |
3700.0 |
7.40 |
78.48 |
|
720.0 |
1.17 |
69.59 |
3800.0 |
7.84 |
83.95 |
|
750.0 |
1.58 |
78.87 |
3900.0 |
8.48 |
84.80 |
|
780.0 |
1.16 |
71.79 |
4000.0 |
8.02 |
87.32 |
|
810.0 |
0.92 |
60.78 |
4100.0 |
8.13 |
88.97 |
|
840.0 |
1.19 |
60.82 |
4200.0 |
8.01 |
88.79 |
|
870.0 |
0.50 |
57.04 |
4300.0 |
8.00 |
84.22 |
|
900.0 |
0.37 |
53.04 |
4400.0 |
7.78 |
82.22 |
|
930.0 |
0.03 |
57.47 |
4500.0 |
7.94 |
82.59 |
|
960.0 |
-0.48 |
51.24 |
4600.0 |
8.10 |
79.53 |
|
1000.0 |
0.55 |
60.06 |
4700.0 |
8.20 |
76.46 |
|
1100.0 |
-0.31 |
57.52 |
4800.0 |
8.21 |
77.22 |
|
1200.0 |
1.14 |
57.10 |
4900.0 |
8.58 |
83.48 |
|
1300.0 |
2.09 |
68.45 |
5000.0 |
8.53 |
82.04 |
|
1400.0 |
3.80 |
76.21 |
5100.0 |
8.77 |
85.42 |
|
1500.0 |
4.28 |
81.56 |
5200.0 |
8.28 |
84.01 |
|
1600.0 |
4.49 |
79.20 |
5300.0 |
8.69 |
87.05 |
|
1700.0 |
4.12 |
76.43 |
5400.0 |
9.07 |
86.73 |
|
1800.0 |
4.25 |
78.89 |
5500.0 |
8.65 |
84.92 |
|
1900.0 |
4.26 |
75.25 |
5600.0 |
8.32 |
82.68 |
|
2000.0 |
4.89 |
78.99 |
5700.0 |
7.99 |
81.88 |
|
2100.0 |
5.01 |
80.42 |
5800.0 |
7.93 |
78.43 |
|
2200.0 |
5.64 |
81.72 |
5900.0 |
7.58 |
76.62 |
|
2300.0 |
5.53 |
78.89 |
6000.0 |
7.07 |
75.29 |
|
2400.0 |
5.86 |
71.18 |
6100.0 |
6.49 |
71.49 |
|
2500.0 |
5.84 |
69.17 |
6200.0 |
6.70 |
73.13 |
|
2600.0 |
6.84 |
75.93 |
6300.0 |
6.76 |
73.18 |
|
2700.0 |
7.12 |
80.92 |
6400.0 |
6.11 |
68.60 |
|
2800.0 |
7.40 |
84.96 |
6500.0 |
6.00 |
71.08 |
|
2900.0 |
7.40 |
87.84 |
6600.0 |
5.42 |
67.12 |
|
3000.0 |
7.48 |
86.40 |
6700.0 |
5.86 |
69.74 |
|
3100.0 |
7.50 |
84.21 |
6800.0 |
5.70 |
67.23 |
|
3200.0 |
7.43 |
80.46 |
6900.0 |
5.56 |
72.95 |
|
3300.0 |
6.93 |
74.90 |
7000.0 |
5.57 |
69.93 |
|
7100-10000MHz |
||
|
Frequency(MHz) |
Gain(dBi) |
Efficiency (%) |
|
7100.0 |
5.25 |
63.23 |
|
7200.0 |
5.56 |
64.31 |
|
7300.0 |
5.71 |
62.45 |
|
7400.0 |
6.43 |
66.84 |
|
7500.0 |
5.81 |
59.10 |
|
7600.0 |
5.33 |
56.39 |
|
7700.0 |
4.99 |
53.14 |
|
7800.0 |
4.95 |
56.46 |
|
7900.0 |
5.16 |
55.72 |
|
8000.0 |
4.62 |
51.67 |
|
8100.0 |
5.33 |
50.17 |
|
8200.0 |
6.04 |
51.34 |
|
8300.0 |
6.04 |
57.25 |
|
8400.0 |
6.32 |
60.62 |
|
8600.0 |
7.13 |
65.62 |
|
8700.0 |
7.59 |
70.96 |
|
8800.0 |
7.66 |
74.35 |
|
8900.0 |
7.72 |
78.68 |
|
9000.0 |
6.71 |
80.12 |
|
9100.0 |
6.60 |
81.95 |
|
9200.0 |
6.09 |
78.94 |
|
9300.0 |
6.08 |
81.56 |
|
9400.0 |
5.64 |
83.61 |
|
9500.0 |
5.11 |
82.17 |
|
9600.0 |
5.76 |
84.16 |
|
9700.0 |
5.32 |
79.25 |
|
9800.0 |
5.54 |
79.04 |
|
9900.0 |
4.84 |
63.94 |
|
10000.0 |
4.54 |
64.21 |
