4G LTE Embedded Antenna FPC antenna 30×20
Product Introduction
The antenna is designed to cover all operating frequencies within the 700-2700MHz spectrum, ensuring seamless cellular, 2G, 3G and 4G connectivity.
Our ultra-thin broadband antenna has a compact size of 30*20mm, ensuring high efficiency across the entire frequency band. Its sleek and discreet design makes it ideal for integration into a variety of devices without compromising space or aesthetics.
Ease of installation is a priority, which is why we put 3M adhesive on the back of the antenna. This adhesive ensures a strong and secure adhesion to non-metallic surfaces, eliminating any concerns of separation or instability.
The applications for our embedded antennas are limitless, but some of the most common use cases include wearable healthcare devices, point-of-sale terminals, and handheld devices. Imagine the potential of wearable devices in the healthcare industry that can transmit important data easily and accurately.
Product Specification
| Electrical Characteristics | ||
| Frequency | 700-960MHz | 1710-2700MHz |
| S.W.R. | <4.6 | <2.0 |
| Antenna Gain | 2.3dBi | 4.2dBi |
| Efficiency | ≈50% | ≈50% |
| Polarization | Linear | |
| Impedance | 50 Ohm | |
| Max Power | 50W | |
| Material & Mechanical Characteristics | ||
| Cable Type | RF1.13 Cable | |
| Connector Type | MHF1 Plug | |
| Dimension | 30*20mm | |
| Weight | 0.001Kg | |
| Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 65 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |
Antenna Passive Parameter
VSWR

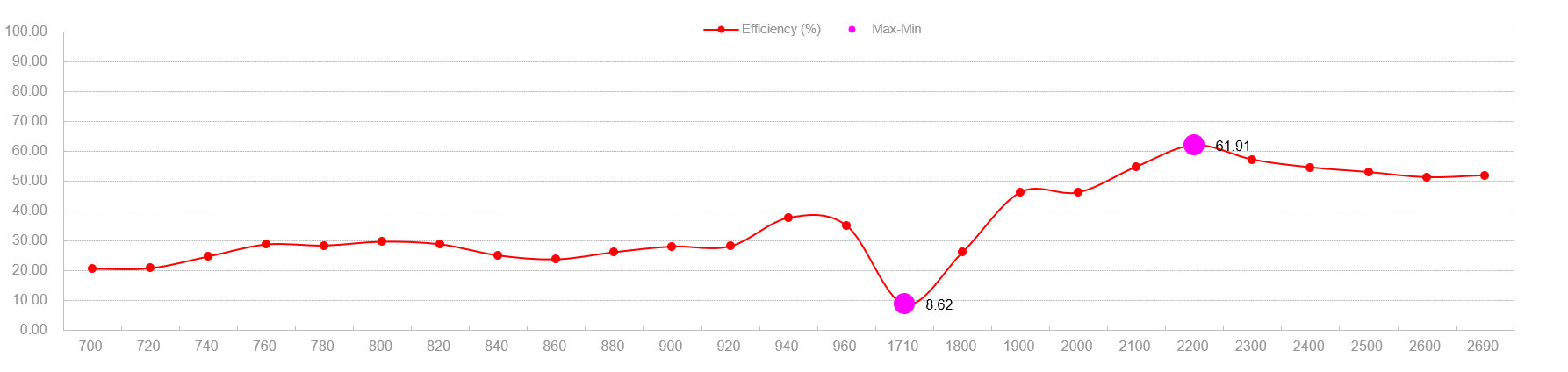

Efficiency & Gain
| Frequency (MHz) |
700 |
720 |
740 |
760 |
780 |
800 |
820 |
840 |
860 |
880 |
900 |
920 |
940 |
960 |
| Gain (dBi) |
-2.84 |
-2.87 |
-2.46 |
-2.16 |
-2.42 |
-1.56 |
-1.41 |
-1.77 |
-1.76 |
-1.08 |
-0.36 |
0.28 |
2.17 |
2.32 |
| Efficiency (%) |
23.35 |
23.42 |
27.17 |
31.02 |
30.82 |
33.02 |
33.33 |
29.57 |
27.9 |
31.83 |
36.31 |
38.3 |
53.76 |
55.32 |
| Frequency (MHz) |
1710 |
1800 |
1900 |
2000 |
2100 |
2200 |
2300 |
2400 |
2500 |
2600 |
2690 |
| Gain (dBi) |
2.21 |
3.01 |
3.06 |
3.27 |
4.23 |
3.68 |
2.97 |
3.08 |
3.18 |
3.67 |
3.74 |
| Efficiency (%) |
50.59 |
59.86 |
51.75 |
48.32 |
59.14 |
59.57 |
49.95 |
47.05 |
44.23 |
46.24 |
56.66 |

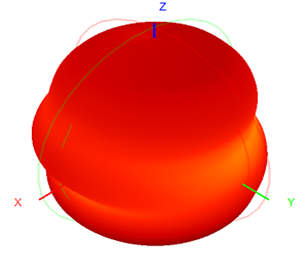

Radiation Pattern
|

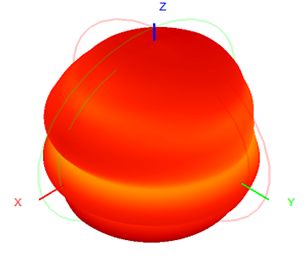

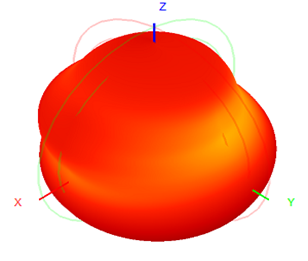

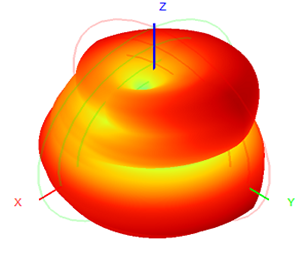

3D |

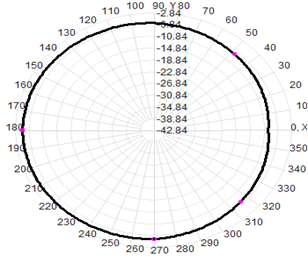

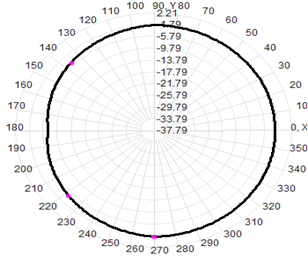

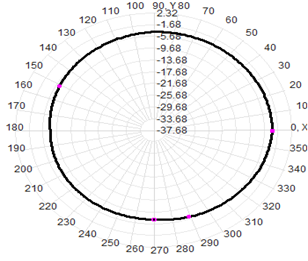

2D-水平面 |

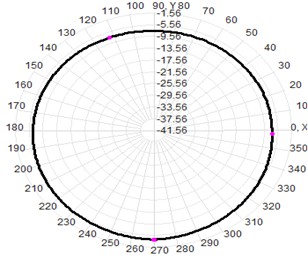

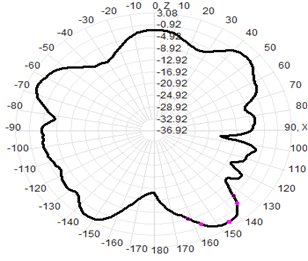

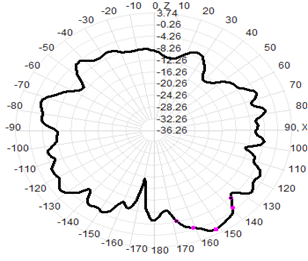

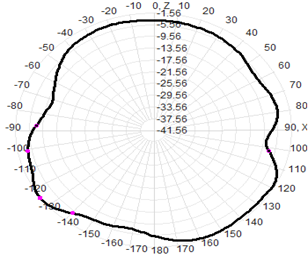

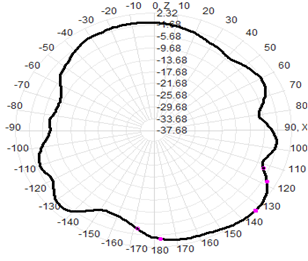

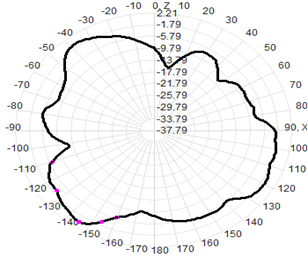

2D-垂直面 |
|
|
700MHz |
 |
 |
 |
|
800MHz |
 |
 |
 |
|
960MHz |
 |
 |
 |
|

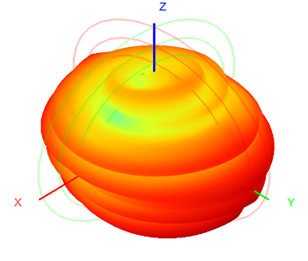

3D |

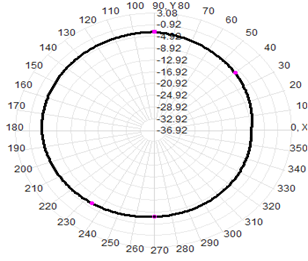

2D-水平面 |

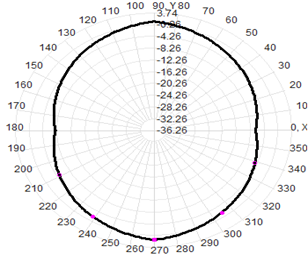

2D-垂直面 |
|
|
1700MHz |
 |
 |
 |
|
2400MHz |
 |
 |
 |
|
2690MHz |
 |
 |
 |
