Panel Antennas
Outdoor Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25
Product Introduction
This flat panel antenna product integrates GNSS, 2.4GHZ and 5.8GHZ frequencies to achieve an excellent 15dBi high gain. The Radome of the antenna is designed with professional anti-UV material, which can effectively extend the service life. At the same time, it reaches the waterproof level IP67. Whether it is sunny or rainy, the signal quality remains stable, thus providing worry-free protection for your wireless connection. Its multi-Band combination design and 15dBi high gain, this antenna has a wide range of applications and can be widely used in fields such as WIFI, WLAN and positioning.
Product Specification
| Electrical Characteristics | |||
| Port | Port1 | Port2 | Port3 |
| Frequency | 1560-1620MHz | 2400-2500MHz | 5700-5900MHz |
| S.W.R. | <= 1.6 | <= 1.6 | <= 1.6 |
| Antenna Gain | 8dBi | 10dBi | 15dBi |
| Polarization | RHCP | Vertical | Vertical |
| Horizontal Beamwidth | 67-72° | 59-61° | 32-41° |
| Vertical Beamwidth | 70-76° | 42-44° | 32-35° |
| F/B | >20dB | >23dB | >23dB |
| Impedance | 50Ohm | 50Ohm | 50Ohm |
| Max. Power | 50W | 50W | 50W |
| Material & Mechanical Characteristics | |||
| Connector Type | SMA connector | ||
| Dimension | 220*220*25mm | ||
| Radome material | ABS | ||
| Mount Pole | ∅30-∅50 | ||
| Weight | 0.86Kg | ||
| Environmental | |||
| Operation Temperature | - 40 ˚C ~ + 85 ˚C | ||
| Storage Temperature | - 40 ˚C ~ + 85 ˚C | ||
| Operation Humidity | ＜95% | ||
| Rated Wind Velocity | 36.9m/s | ||
Antenna Passive Parameter
VSWR
Gain
| Port 1 | Port 2 | Port 3 | |||
|---|---|---|---|---|---|
| Freq(MHz) | Gain(dBi) | Freq(MHz) | Gain(dBi) | Freq(MHz) | Gain(dBi) |
| 1560 | 7.6 | 2400 | 10.6 | 5700 | 14.0 |
| 1570 | 7.0 | 2410 | 10.6 | 5725 | 13.8 |
| 1580 | 8.4 | 2420 | 10.8 | 5750 | 13.9 |
| 1590 | 8.7 | 2430 | 10.8 | 5775 | 13.9 |
| 1600 | 7.3 | 2440 | 10.7 | 5800 | 14.0 |
| 1610 | 8.2 | 2450 | 10.8 | 5825 | 14.1 |
| 1620 | 8.1 | 2460 | 10.8 | 5850 | 14.4 |
| - | - | 2470 | 10.8 | 5875 | 15.0 |
| - | - | 2480 | 10.8 | 5900 | 15.0 |
| - | - | 2490 | 10.8 | - | - |
| - | - | 2500 | 10.8 | - | - |
Radiation Pattern
| Port 1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |

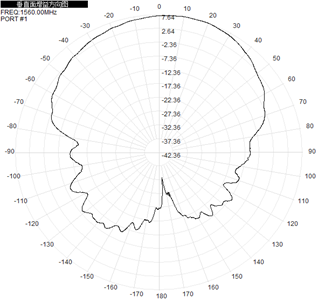

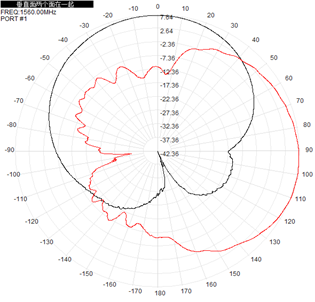

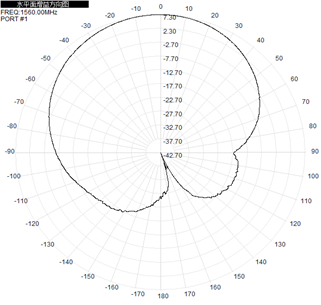

| 1560MHz |  |
 |
 |

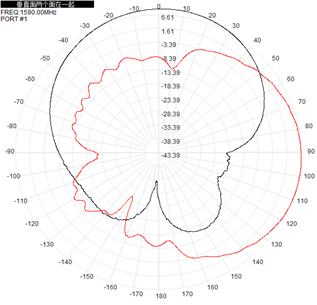

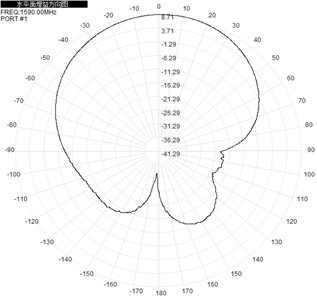

| 1590MHz |  |
 |
 |

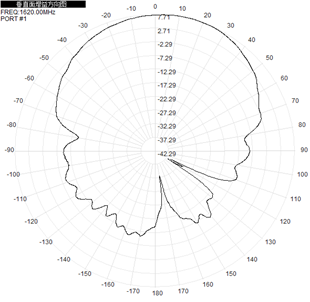

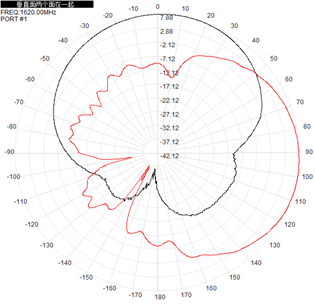

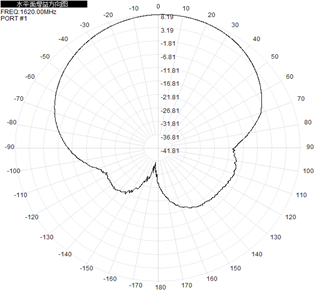

| 1620MHz |  |
 |
 |
| Port 2 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |

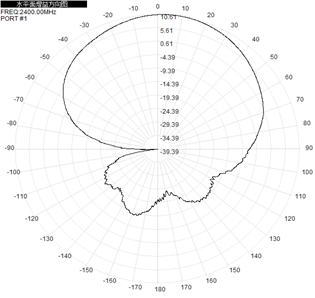

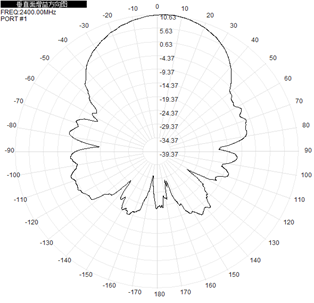

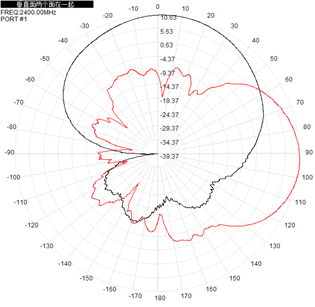

| 2400MHz |  |
 |
 |

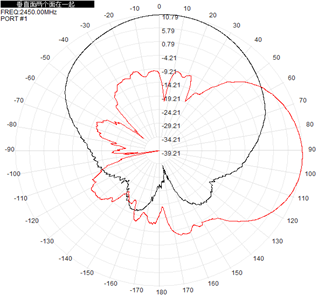

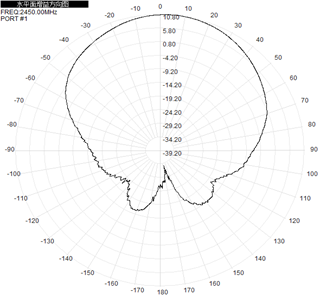

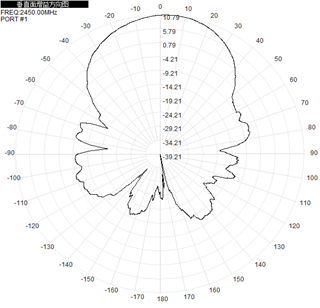

| 2450MHz |  |
 |
 |

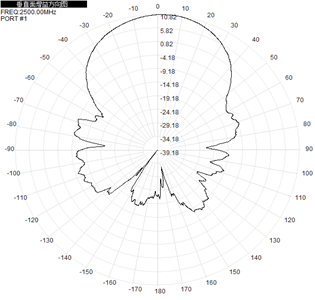

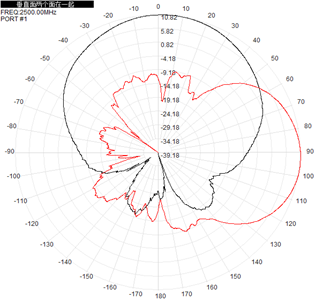

| 2500MHz |  |
 |
 |
| Port 3 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |

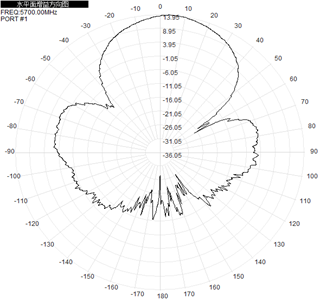

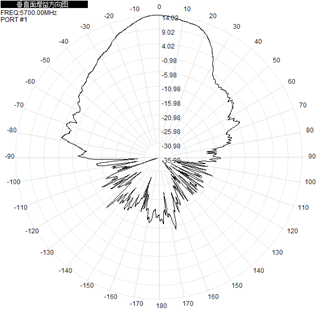

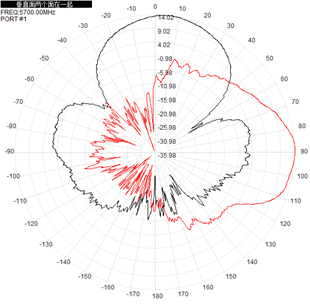

| 5700MHz |  |
 |
 |

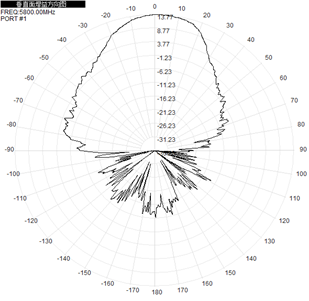

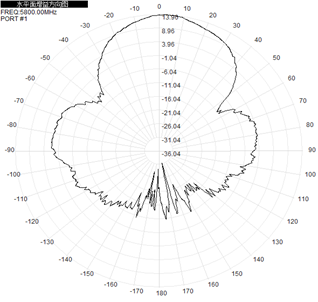

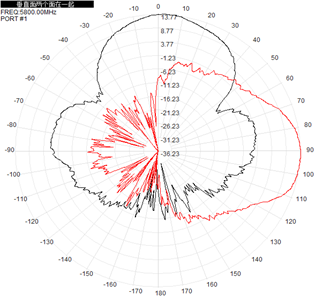

| 5800MHz |  |
 |
 |

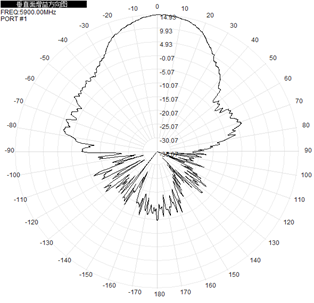

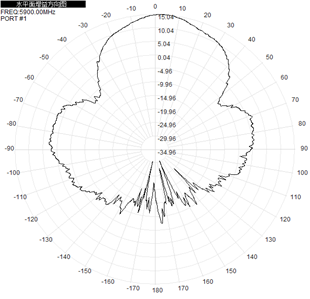

| 5900MHz |  |
 |
 |
