6000-8000MHz Fiberglass Antenna Omnidirectional IP67 16×120
Product Introduction
This high‑performance fiberglass omnidirectional antenna is designed for the 6000–8000MHz band, ideal for next‑generation wireless communication systems. Featuring a black fiberglass radome, compact structure, IP67 environmental protection, and excellent electrical performance, it is suitable for indoor/outdoor coverage, industrial IoT, smart transportation, and more.
Applications
- 5G NR (n79 band) indoor/outdoor coverage
- Wi‑Fi 6E / Wi‑Fi 7 high‑band access
- Industrial IoT (IIoT) terminal communication
- Intelligent transportation systems (V2X, vehicle‑to‑everything)
- Drone relay communication
- Private network systems (public safety, energy, emergency)
- Outdoor small cell coverage and base station gap filling
Product Specification
| Electrical Characteristics | |
| Frequency | 6000-8000MHz |
| Impedance | 50 Ohm |
| S.W.R. | <2.0 |
| Gain | 1.9~2.6dBi |
| Efficiency | ≈88% |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 22-86° |
| Polarization | Linear |
| Max Power | 50W |
| Material & Mechanical Characteristics | |
| Connector Type | N connector |
| Dimension | Φ16*120mm |
| Weight | 0.032Kg |
| Radome material | Fiberglass |
| Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
Antenna Passive Parameter

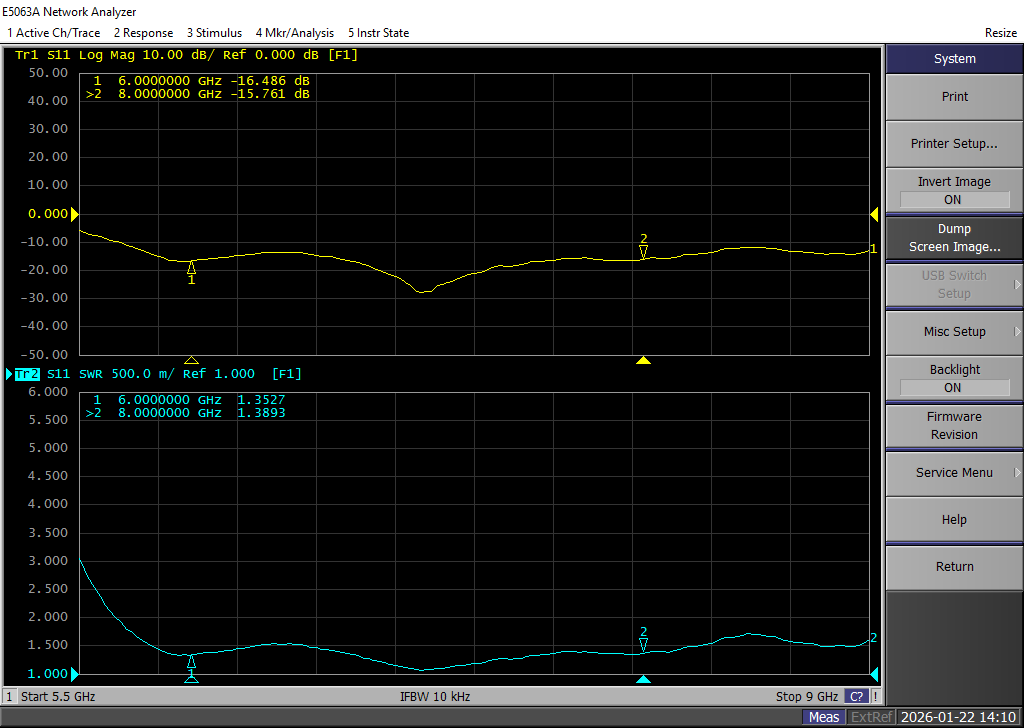

VSWR
Efficiency & Gain
|
Frequency(MHz) |
Gain(dBi) |
Efficiency(%) |
|
6000 |
2.0 |
88.7 |
|
6100 |
2.4 |
95.7 |
|
6200 |
2.2 |
93.3 |
|
6300 |
2.2 |
89.6 |
|
6400 |
2.4 |
91.4 |
|
6500 |
2.3 |
94.9 |
|
6600 |
2.3 |
93.0 |
|
6700 |
2.4 |
93.6 |
|
6800 |
2.0 |
85.6 |
|
6900 |
2.2 |
90.9 |
|
7000 |
2.2 |
92.5 |
|
7100 |
2.4 |
90.4 |
|
7200 |
2.4 |
88.6 |
|
7300 |
2.2 |
81.3 |
|
7400 |
2.6 |
87.8 |
|
7500 |
2.2 |
81.6 |
|
7600 |
2.2 |
80.9 |
|
7700 |
2.0 |
79.4 |
|
7800 |
1.9 |
78.3 |
|
7900 |
2.1 |
82.9 |
|
8000 |
2.3 |
85.0 |
Radiation Pattern
|
3D |
2D-Horizontal |
2D-Vertical |
|
|
6000MHz |
 |
 |
 |
|
7000MHz |
 |
 |
 |
|
8000MHz |
 |
 |
 |
