Outdoor IP67 Omnidirectional Fiberglass Antenna 600-6000MHz 60×350
Product Introduction
600-6000MHz omnidirectional fiberglass Antennas are designed for high efficiency and peak gain to deliver excellent throughput for access points and terminals. The antennas work on all major cellular (5G/4G/3G/2G) frequency bands. It can enhance WiFi and 5G signals, transmit and receive signals, and improve network quality.
Product Specification
| Electrical Characteristics | |
| Frequency | 600-6000MHz |
| S.W.R. | <2.0 |
| Efficiency | ≈70% |
| Antenna Gain | 3-5dBi |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 26-80° |
| Impedance | 50 Ohm |
| Max Power | 50W |
| Material & Mechanical Characteristics | |
| Connector Type | N connector |
| Dimension | Φ60*350mm |
| Weight | 0.54Kg |
| Radome material | Fiberglass |
| Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
| Rated Wind Velocity | 36.9m/s |
Antenna Passive Parameter
VSWR
Efficiency & Gain
|
Frequency (MHz) |
Gain (dBi) |
Efficiency (%) |
|
Frequency (MHz) |
Gain (dBi) |
Efficiency (%) |
|
600.0 |
3.1 |
63.5 |
2900.0 |
3.2 |
74.7 |
|
|
630.0 |
3.0 |
68.5 |
3000.0 |
3.3 |
74.2 |
|
|
660.0 |
2.9 |
66.7 |
3100.0 |
3.1 |
68.8 |
|
|
690.0 |
3.6 |
71.4 |
3200.0 |
3.1 |
70.2 |
|
|
720.0 |
3.1 |
73.7 |
3300.0 |
3.1 |
69.6 |
|
|
750.0 |
3.8 |
71.6 |
3400.0 |
3.1 |
73.6 |
|
|
780.0 |
4.7 |
75.5 |
3500.0 |
3.2 |
72.7 |
|
|
810.0 |
5.0 |
75.6 |
3600.0 |
3.4 |
72.3 |
|
|
840.0 |
4.4 |
75.7 |
3700.0 |
3.4 |
67.6 |
|
|
870.0 |
3.8 |
77.5 |
3800.0 |
3.2 |
60.7 |
|
|
900.0 |
3.0 |
82.4 |
3900.0 |
3.1 |
67.1 |
|
|
930.0 |
3.2 |
82.6 |
4000.0 |
3.3 |
70.9 |
|
|
960.0 |
3.2 |
89.3 |
4100.0 |
3.1 |
68.8 |
|
|
1000.0 |
3.7 |
82.8 |
4200.0 |
3.0 |
67.3 |
|
|
1100.0 |
3.0 |
85.6 |
4300.0 |
3.0 |
64.9 |
|
|
1200.0 |
4.2 |
77.1 |
4400.0 |
3.1 |
61.1 |
|
|
1300.0 |
3.0 |
73.5 |
4500.0 |
3.2 |
62.1 |
|
|
1400.0 |
3.3 |
77.8 |
4600.0 |
3.1 |
67.6 |
|
|
1500.0 |
3.0 |
72.4 |
4700.0 |
3.0 |
65.3 |
|
|
1600.0 |
3.1 |
79.2 |
4800.0 |
3.1 |
67.7 |
|
|
1700.0 |
3.3 |
74.6 |
4900.0 |
3.2 |
55.6 |
|
|
1800.0 |
3.0 |
70.7 |
5000.0 |
3.2 |
58.8 |
|
|
1900.0 |
3.1 |
76.7 |
5100.0 |
3.2 |
60.7 |
|
|
2000.0 |
3.4 |
76.6 |
5200.0 |
3.5 |
64.8 |
|
|
2100.0 |
3.1 |
78.1 |
5300.0 |
4.2 |
69.8 |
|
|
2200.0 |
3.2 |
80.2 |
5400.0 |
3.8 |
62.2 |
|
|
2300.0 |
3.0 |
76.1 |
5500.0 |
4.2 |
62.3 |
|
|
2400.0 |
3.1 |
75.8 |
5600.0 |
4.1 |
61.1 |
|
|
2500.0 |
3.2 |
73.7 |
5700.0 |
4.6 |
64.0 |
|
|
2600.0 |
3.3 |
70.6 |
5800.0 |
4.9 |
71.9 |
|
|
2700.0 |
3.0 |
72.1 |
5900.0 |
5.1 |
71.8 |
|
|
2800.0 |
3.1 |
74.2 |
6000.0 |
5.4 |
73.2 |

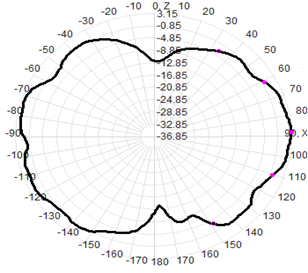

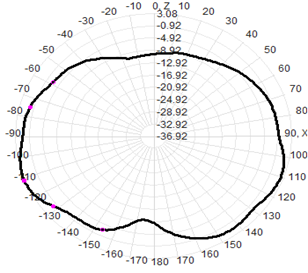

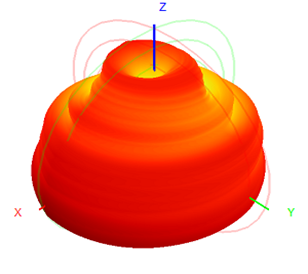

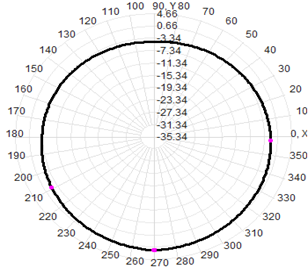

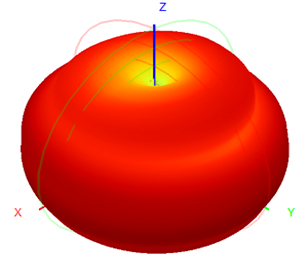

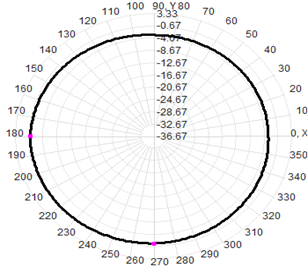

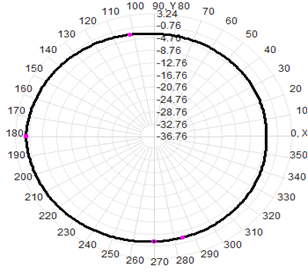

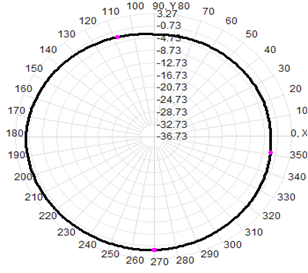

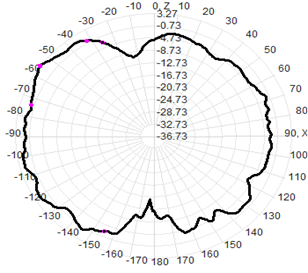

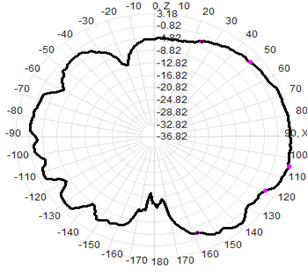

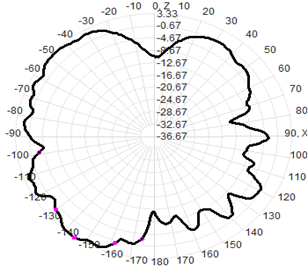

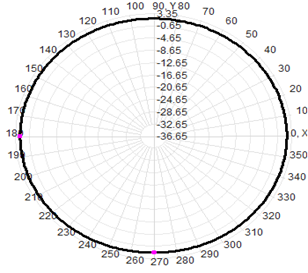

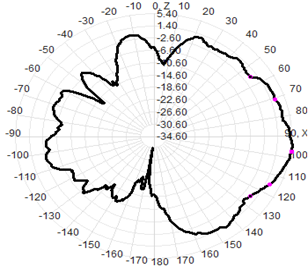

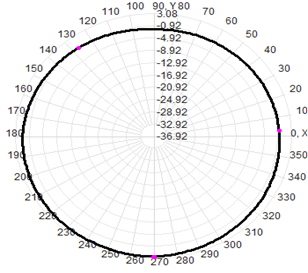

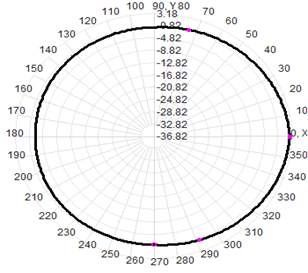

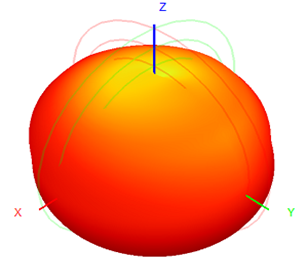

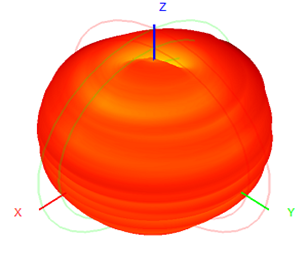

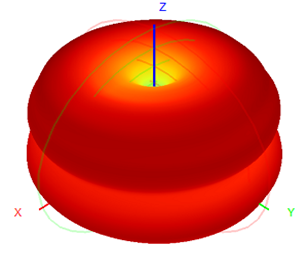

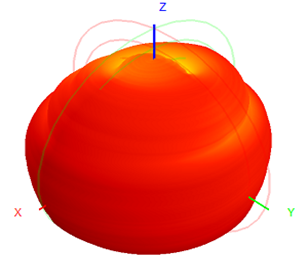

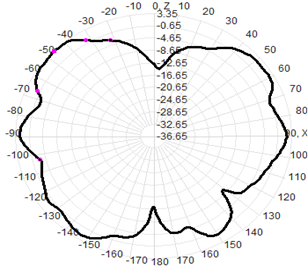

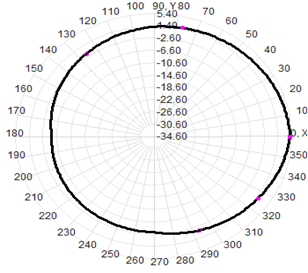

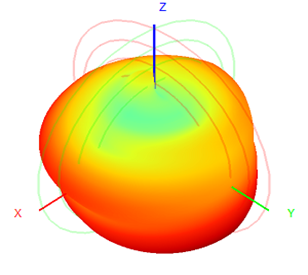

Radiation Pattern
|
|
3D |
2D-Horizontal |
2D-Vertical |
|
600MHz |
 |
 |
 |
|
780MHz |
 |
 |
 |
|
960MHz |
 |
 |
 |
|
|
3D |
2D-Horizontal |
2D-Vertical |
|
1600MHz |
 |
 |
 |
|
2000MHz |
 |
 |
 |
|
3000MHz |
 |
 |
 |
|
|
3D |
2D-Horizontal |
2D-Vertical |
|
4000MHz |
 |
 |
 |
|
5000MHz |
 |
 |
 |
|
6000MHz |
 |
 |
 |
