FRP Antenna
Omnidirectional fiberglass Antenna 5G 600-6000MHz 1.5-4.5dB
product detail
Product Introduction
600-6000MHz omnidirectional fiberglass Antennas are designed for high efficiency and peak gain to deliver excellent throughput for access points and terminals. The antennas work on all major cellular (5G/4G/3G/2G) frequency bands. It can enhance WiFi and 5G signals, transmit and receive signals, and improve network quality.
Product Specification
| Electrical Characteristics | ||
| Frequency | 617-960MHz | 1710-6000MHz |
| Impedance | 50 Ohm | 50 Ohm |
| S.W.R. | <4.2 | <3.0 |
| Gain | 1.5dBi | 4.5dBi |
| Efficiency | ≈34% | ≈66% |
| Horizontal Beamwidth | 360° | 360° |
| Vertical Beamwidth | 38°@868MHz | 37°@1980MHz |
| Polarization | Linear | Linear |
| Max Power | 50W | 50W |
| Material & Mechanical Characteristics | ||
| Connector Type | N connector | |
| Dimension | Φ25*200mm | |
| Weight | 0.12Kg | |
| Radome material | Fiberglass | |
| Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 80 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |
Antenna Passive Parameter
VSWR

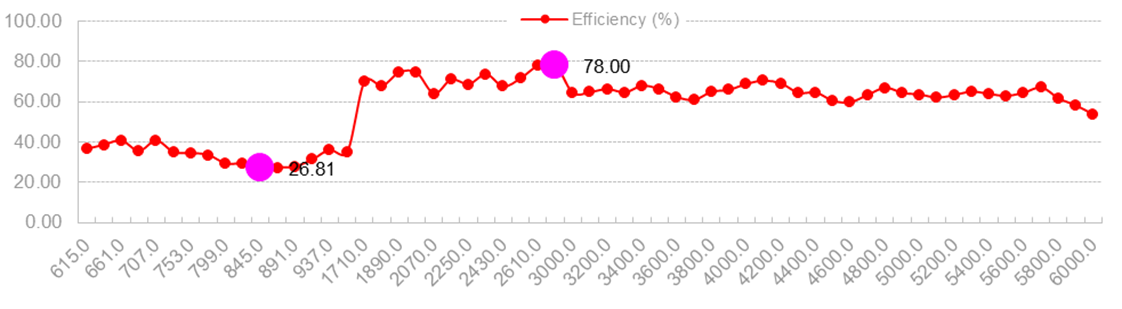

Efficiency & Gain
|
Frequency (MHz) |
Gain (dBi) |
Efficiency (%) |
|
615 |
0.50 |
36.43 |
|
638 |
-0.06 |
38.57 |
|
661 |
-0.61 |
40.58 |
|
684 |
-1.05 |
35.45 |
|
707 |
-0.68 |
40.56 |
|
730 |
-1.14 |
34.90 |
|
753 |
-1.21 |
34.44 |
|
776 |
-1.40 |
33.43 |
|
799 |
-1.51 |
29.27 |
|
822 |
-1.55 |
29.08 |
|
845 |
-1.86 |
26.81 |
|
868 |
-1.39 |
27.19 |
|
891 |
-1.07 |
27.75 |
|
914 |
0.18 |
31.25 |
|
937 |
1.45 |
36.07 |
|
960 |
1.63 |
34.63 |
|
Frequency (MHz) |
Gain (dBi) |
Efficiency (%) |
|
1710 |
2.13 |
69.99 |
|
1800 |
2.58 |
67.64 |
|
1890 |
2.75 |
74.36 |
|
1980 |
2.73 |
74.33 |
|
2070 |
2.17 |
63.88 |
|
2160 |
2.86 |
70.86 |
|
2250 |
3.06 |
68.54 |
|
2340 |
3.49 |
73.47 |
|
2430 |
3.69 |
67.47 |
|
2520 |
3.62 |
71.50 |
|
2610 |
4.23 |
77.74 |
|
2700 |
3.48 |
78.00 |
|
Frequency (MHz) |
Gain (dBi) |
Efficiency (%) |
|
3000 |
3.55 |
64.20 |
|
3100 |
3.94 |
64.64 |
|
3200 |
3.76 |
66.16 |
|
3300 |
3.77 |
64.49 |
|
3400 |
3.14 |
67.76 |
|
3500 |
3.78 |
66.03 |
|
3600 |
3.42 |
62.13 |
|
3700 |
3.05 |
60.80 |
|
3800 |
2.89 |
64.81 |
|
3900 |
2.33 |
65.76 |
|
4000 |
2.89 |
68.69 |
|
4100 |
3.15 |
70.34 |
|
4200 |
3.35 |
68.90 |
|
4300 |
3.25 |
64.23 |
|
4400 |
3.77 |
64.39 |
|
4500 |
4.44 |
60.27 |
|
Frequency (MHz) |
Gain (dBi) |
Efficiency (%) |
|
4600 |
4.04 |
59.66 |
|
4700 |
3.34 |
63.31 |
|
4800 |
3.00 |
66.79 |
|
4900 |
2.72 |
64.23 |
|
5000 |
2.94 |
63.40 |
|
5100 |
3.64 |
61.91 |
|
5200 |
3.65 |
63.27 |
|
5300 |
3.64 |
64.90 |
|
5400 |
3.05 |
63.68 |
|
5500 |
3.44 |
62.76 |
|
5600 |
4.22 |
64.39 |
|
5700 |
4.70 |
66.90 |
|
5800 |
4.60 |
61.43 |
|
5900 |
4.11 |
57.97 |
|
6000 |
4.08 |
53.46 |
Radiation Pattern
|
|
3D |
2D-Horizontal |
2D-Vertical |
|
615MHz |
 |
 |
 |
|
868MHz |
 |
 |
 |
|
960MHz |
 |
 |
 |
|
|
3D |
2D-Horizontal |
2D-Vertical |
|
1710MHz |
 |
 |
 |
|
2250MHz |
 |
 |
 |
|
2700MHz |
 |
 |
 |
|
|
3D |
2D-Horizontal |
2D-Vertical |
|
3000MHz |
 |
 |
 |
|
4500MHz |
 |
 |
 |
|
6000MHz |
 |
 |
 |
