4 Blade Cloverleaf Antenna Drone Antenna FPV Antenna 4.9-6GHZ
Product Introduction
This Cloverleaf Antenna (also known as mushroom antenna) is specifically designed for 5.8GHz (4900–6000MHz) drone video transmission systems. It features Right-Hand Circular Polarization (RHCP) and an omnidirectional antenna structure, offering 360° horizontal coverage without dead zones and a vertical beamwidth of 8–73°. This design effectively suppresses multipath interference and signal fading, ensuring stable and clear video transmission even during high-speed and aggressive maneuvering. With 1.8–4dBi variable gain and approximately 80% efficiency, it is an ideal choice for FPV racing drones, competitive drones, and long-range video transmission.
Applications
- FPV racing drones and competitive drone video transmission systems
- 5.8GHz long-range telemetry and video downlink links
- Industrial drone anti-interference video transmission solutions
- Omnidirectional coverage mobile ground station receiving antennas
- Multirotor and fixed-wing drones for line-of-sight (LOS) and beyond-visual-line-of-sight (BVLOS) flights
Product Specification
| Electrical Characteristics | |
| Frequency | 4900-6000MHz |
| Impedance | 50 Ohm |
| S.W.R. | <3.0 |
| Gain | 1.8-4dBi |
| Efficiency | ≈80% |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 8-73° |
| Polarization | CRHP |
| Max Power | 5W |
| Material & Mechanical Characteristics | |
| Connector Type | SMA connector |
| Dimension | Φ31*78mm |
| Weight | 0.008Kg |
| Antenna material | Copper |
| Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
Antenna Passive Parameter

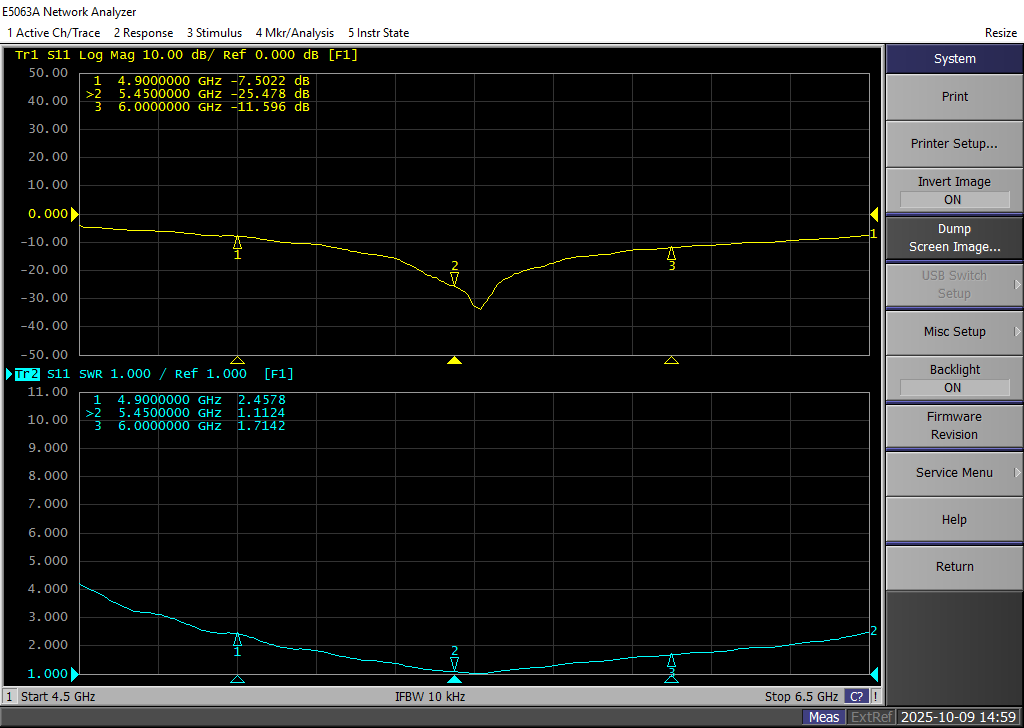

VSWR
Efficiency & Gain
| Frequency (MHz) |
4900 |
5000 |
5100 |
5200 |
5300 |
5400 |
5500 |
5600 |
5700 |
5800 |
5900 |
6000 |
| Gain (dBi) |
1.8 |
2.5 |
3.1 |
3.5 |
4.1 |
3.9 |
3.1 |
2.6 |
2.0 |
2.4 |
2.1 |
2.3 |
| Efficiency (%) |
62.7 |
71.0 |
73.5 |
72.9 |
77.0 |
85.2 |
81.6 |
83.5 |
80.0 |
92.0 |
83.3 |
85.9 |
Radiation Pattern
|
|
3D |
2D-Horizontal |
2D-Vertical |
| AXIS |  |
 |
 |
| 4900MHZ |  |
 |
 |
| 5500MHZ |  |
 |
 |
|
6000MHZ |
 |
 |
 |
