4 Blade Cloverleaf Antenna Drone Antenna FPV Antenna 1.28-1.45GHZ
Product Introduction
This Cloverleaf Antenna (also known as mushroom antenna) is specifically designed for 1.4GHz (1280–1450MHz) drone video transmission systems. It adopts a classic omnidirectional antenna structure, offering 360° horizontal coverage and a wide vertical beamwidth of 19–81°, ensuring stable signal reception and transmission regardless of the aircraft's attitude. With 2dBi gain and approximately 78% efficiency, it is an ideal choice for FPV aerial photography, long-range video transmission, and industrial drone applications.
Applications
- FPV racing drones and aerial photography drone video transmission systems
- 1.4GHz long-range telemetry and remote control links
- Industrial drone anti-interference video transmission solutions
- Omnidirectional coverage mobile ground station receiving antennas
Product Specification
| Electrical Characteristics | |
| Frequency | 1280-1450MHz |
| Impedance | 50 Ohm |
| S.W.R. | <2.0 |
| Gain | 2dBi |
| Efficiency | ≈78% |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 11-78° |
| Polarization | CP |
| Max Power | 5W |
| Material & Mechanical Characteristics | |
| Connector Type | SMA connector |
| Dimension | Φ125*57mm |
| Weight | 0.01Kg |
| Antenna material | Copper |
| Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
Antenna Passive Parameter

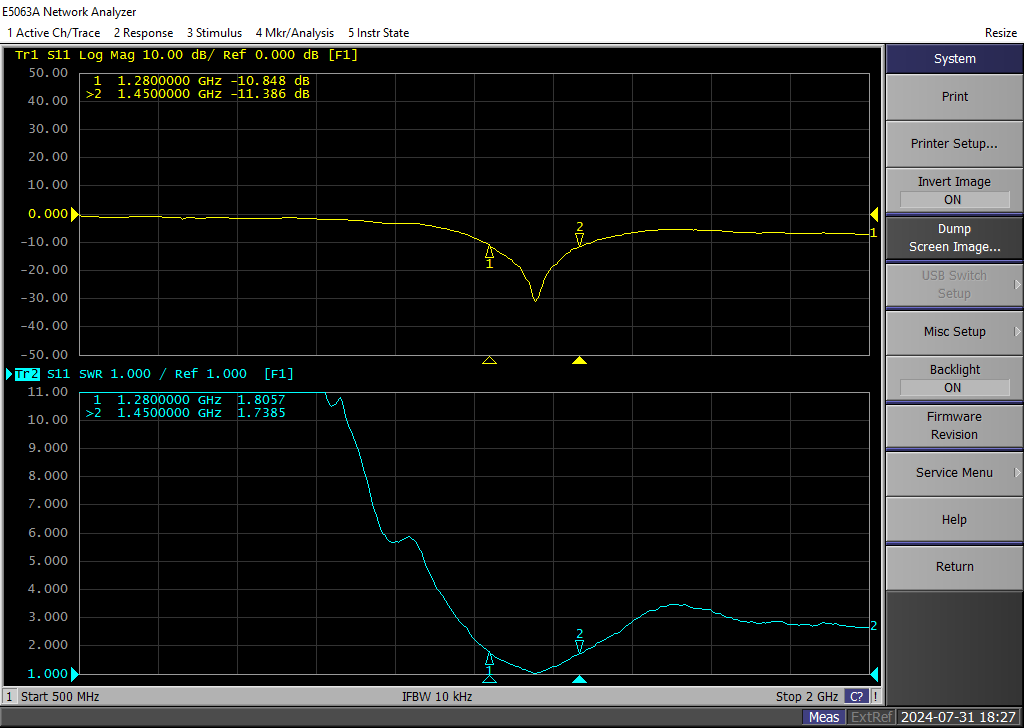

VSWR
Efficiency & Gain
| Frequency (MHz) |
1280 |
1300 |
1320 |
1340 |
1360 |
1380 |
1400 |
1420 |
1440 |
1460 |
| Gain (dBi) |
2.4 |
2.3 |
2.0 |
1.9 |
1.7 |
1.9 |
1.7 |
1.7 |
1.9 |
1.3 |
| Efficiency (%) |
77.9 |
80.0 |
82.1 |
81.0 |
76.8 |
80.4 |
77.9 |
79.3 |
78.4 |
68.5 |
Radiation Pattern
|
|
3D |
2D-Horizontal |
2D-Vertical |
| AXIS |  |
 |
 |
| 1280MHZ |  |
 |
 |
| 1360MHZ |  |
 |
 |
|
1450MHZ |
 |
 |
 |
