4 Blade Cloverleaf Antenna Drone Antenna FPV Antenna 5700-5850MHZ
Product Introduction
This Cloverleaf Antenna (also known as mushroom antenna) is specifically designed for 5.8GHz (5700–5850MHz) drone video transmission systems. It features Right-Hand Circular Polarization (RHCP) and an omnidirectional antenna structure, offering 360° horizontal coverage without dead zones and a wide vertical beamwidth of 78–83°. This design effectively suppresses multipath interference and signal fading, ensuring stable and clear video transmission across various flight attitudes. With 2dBi gain and approximately 76% efficiency, it is an ideal choice for FPV racing drones, aerial photography drones, and industrial video transmission.
Applications
- FPV racing drones and aerial photography drone video transmission systems
- 5.8GHz long-range telemetry and video downlink links
- Industrial drone anti-interference video transmission solutions
- Omnidirectional coverage mobile ground station receiving antennas
- Multirotor and fixed-wing drones for line-of-sight (LOS) and beyond-visual-line-of-sight (BVLOS) flights
Product Specification
| Electrical Characteristics | |
| Frequency | 5700-5850MHz |
| Impedance | 50 Ohm |
| S.W.R. | <2.0 |
| Gain | 2dBi |
| Efficiency | ≈76% |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 78-83° |
| Polarization | CRHP |
| Max Power | 5W |
| Material & Mechanical Characteristics | |
| Connector Type | SMA connector |
| Dimension | Φ33*118mm |
| Weight | 0.011Kg |
| Antenna material | Copper |
| Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
Antenna Passive Parameter

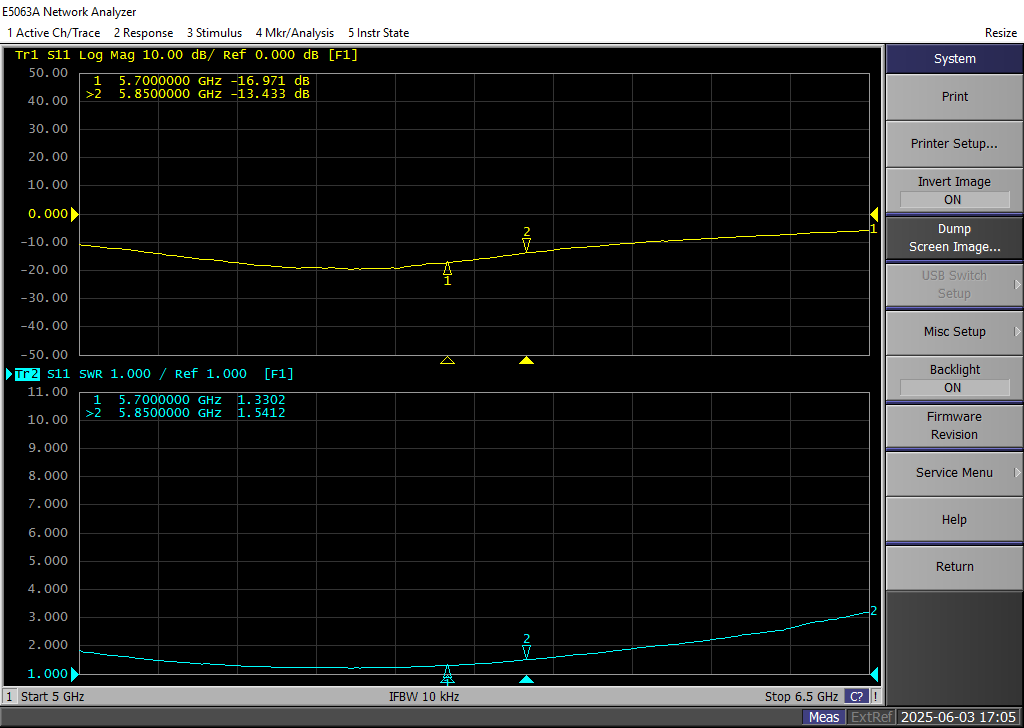

VSWR
Efficiency & Gain
| Frequency (MHz) |
5700 |
5725 |
5750 |
5775 |
5800 |
5825 |
5850 |
| Gain (dBi) |
1.2 |
1.3 |
1.4 |
1.1 |
1.8 |
1.4 |
1.3 |
| Efficiency (%) |
75.1 |
79.0 |
76.0 |
72.4 |
82.7 |
76.6 |
72.9 |
Radiation Pattern
|
|
3D |
2D-Horizontal |
2D-Vertical |
| AXIS |  |
 |
 |
| 5700MHZ |  |
 |
 |
| 5775MHZ |  |
 |
 |
|
5850MHZ |
 |
 |
 |
