4 Blade Cloverleaf Antenna Drone Antenna FPV Antenna 5.1-5.3GHZ

Short Description:

Frequency: 5100-5300MHz

Gain: 2dBi

SMA connector

Dimension: Φ34*120mm

Send email to us Download as PDF

Product Detail

Product Tags

Product Introduction

This Cloverleaf Antenna (also known as mushroom antenna) is specifically designed for 5.2GHz (5100–5300MHz) drone video transmission systems. It features Right-Hand Circular Polarization (RHCP) and an omnidirectional antenna structure, offering 360° horizontal coverage without dead zones and a wide vertical beamwidth of 69–85°. This design effectively suppresses multipath interference and signal fading, ensuring stable and clear video transmission across various flight attitudes. With 2dBi gain and approximately 80% efficiency, it is an ideal choice for FPV racing drones, aerial photography drones, and industrial video transmission.

Applications

FPV racing drones and aerial photography drone video transmission systems
5.2GHz long-range telemetry and video downlink links
Industrial drone anti-interference video transmission solutions
Omnidirectional coverage mobile ground station receiving antennas
Multirotor and fixed-wing drones for line-of-sight (LOS) and beyond-visual-line-of-sight (BVLOS) flights

Product Specification

Electrical Characteristics
Frequency	5100-5300MHz
Impedance	50 Ohm

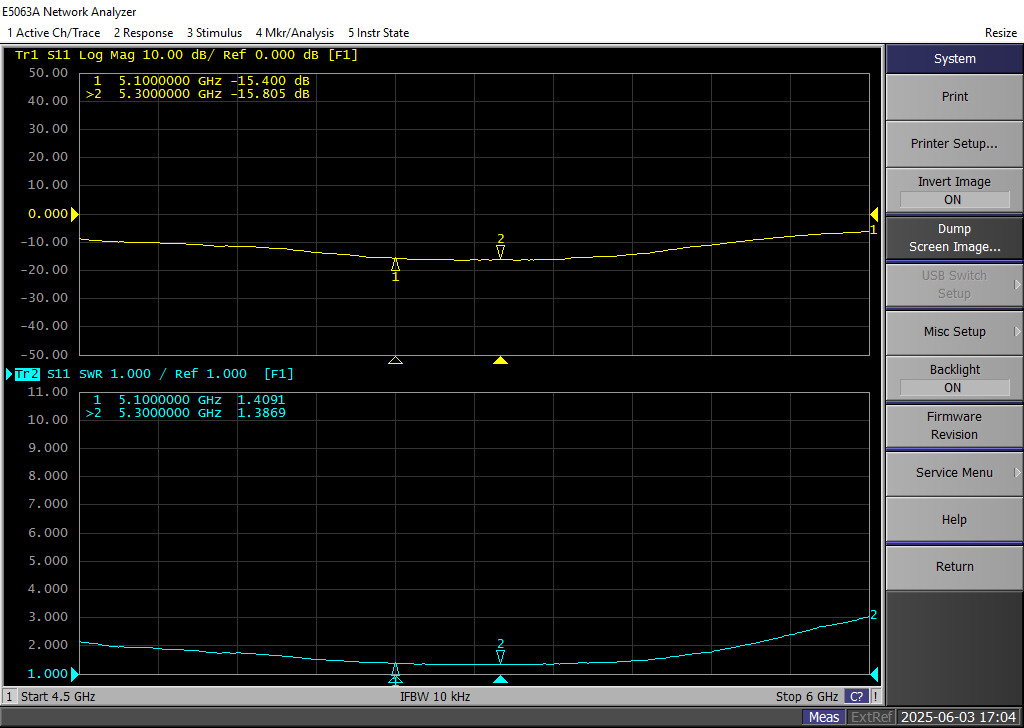

S.W.R.	<2.0
Gain	2dBi
Efficiency	≈80%
Horizontal Beamwidth	360°
Vertical Beamwidth	69-85°
Polarization	CRHP
Max Power	5W
Material & Mechanical Characteristics
Connector Type	SMA connector
Dimension	Φ34*120mm
Weight	0.012Kg
Antenna material	Copper
Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
