Outdoor Flat Panel Antenna Dual Polarization Directional Antenna 1427-1447MHz 390x390x50
Product Introduction
This high‑performance dual‑polarized panel antenna operates in the 1427–1447MHz band, featuring two independent ports for horizontal and vertical polarization. With a compact ABS enclosure (390×390×50mm), it delivers excellent gain, stable radiation patterns, and robust environmental durability – ideal for MIMO, polarization diversity, and directional coverage applications.
Main Application Areas
- LTE / 5G NR Supplementary Downlink (SDL)
e.g., Band 32 (around 1500MHz) to boost downlink throughput - Private Network Communications
Public safety, emergency services, energy, transportation – wireless broadband access - Railway & Transit Communications
Train‑to‑ground wireless, train control data links - Public Safety & Emergency Communication
Temporary emergency base stations, on‑site command networks - Point‑to‑Multipoint (PMP) Directional Coverage
Area coverage, edge fill‑in, backhaul for remote base stations - MIMO / Polarisation Diversity Systems
Improve spectral efficiency and combat multipath fading - Precise Indoor & Outdoor Coverage
Stadiums, campuses, ports, mining sites – any scenario requiring high‑gain directional coverage
Product Specification
| A. Electrical Characteristics | ||
| Port |
Port1 |
Port2 |
| Frequency | 1427-1447MHz | 1427-1447MHz |
| S.W.R. | <2.0 | <2.0 |
| Antenna Gain | 14dBi | 14dBi |
| Polarization | Horizontal | Vertical |
| Horizontal Beamwidth | 32-33° | 36-38° |
| Vertical Beamwidth | 36-38° | 32-32° |
| F/B | 28-30dB | 28-30dB |
| Impedance | 50Ohm | 50Ohm |
| Max. Power | 50W | 50W |
| B. Material & Mechanical Characteristics | ||
| Connector Type | N connector | |
| Dimension | 390*390*50mm | |
| Radome material | ABS | |
| Mount Pole | ∅30-∅75 | |
| Weight | 1.67Kg | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 85 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C | |
| Operation Humidity | ＜95% | |
| Rated Wind Velocity | 36.9m/s | |
Antenna Passive Parameter

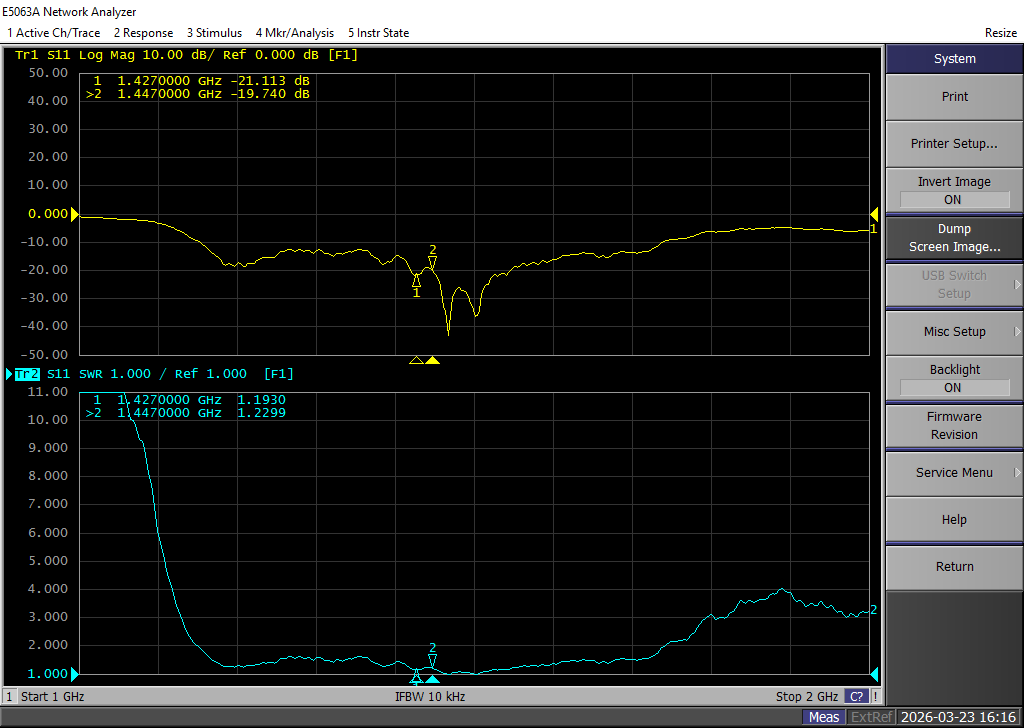

VSWR
Efficiency & Gain
|
Port 1（H） |
|
Port 2（V） |
||
|
Frequency(MHz) |
Gain(dBi) |
Frequency(MHz) |
Gain(dBi) |
|
|
1427 |
13.9 |
1427 |
13.8 |
|
|
1430 |
13.9 |
1430 |
13.9 |
|
|
1435 |
14.0 |
1435 |
14.1 |
|
|
1440 |
13.9 |
1440 |
14.2 |
|
|
1445 |
13.8 |
1445 |
14.1 |
|
|
1447 |
13.8 |
1447 |
14.1 |
|
Radiation Pattern
|
Port 1 |
2D-Horizontal |
2D-Vertical |
Horizontal & Vertical |
|
1427MHz |
 |
 |
 |
|
1435MHz |
 |
 |
 |
|
1447MHz |
 |
 |
 |
|
Port 2 |
2D-Horizontal |
2D-Vertical |
Horizontal & Vertical |
|
1427MHz |
 |
 |
 |
|
1435MHz |
 |
 |
 |
|
1447MHz |
 |
 |
 |
