Outdoor Flat Panel antenna Directional antenna 4G LTE 260x260x35
Product Introduction
This high-performance 4G directional antenna adopts a dual-polarization design and is suitable for a variety of transmission needs. It has obvious advantages in long-distance transmission, and can enhance the signal transmission effect in weak signal areas, signal dead spots, mountainous areas and other environments。
It is suitable for the following application scenarios:
Infotainment system: used to provide stable and high-speed network connections to support online games, high-definition video transmission, etc.
Public transportation: Can be used to provide stable network connections to support WiFi services and passenger information transmission on buses. Connected or autonomous vehicles, fleet management, logistics: Able to provide stable, high-speed network connections to support information transmission and remote management between vehicles.
2G/3G/4G network: suitable for various network environments, providing better network signal reception and transmission capabilities.
Internet of Things: Can be used to connect various Internet of Things devices to provide reliable network connections and data transmission.
Product Specification
| Electrical Characteristics | ||
| Frequency | 806-960MHz | 1710-2700MHz |
| S.W.R. | <=2.0 | <=2.2 |
| Antenna Gain | 5-7dBi | 8-11dBi |
| Polarization | Vertical | Vertical |
| Horizontal Beamwidth | 66-94° | 56-80° |
| Vertical Beamwidth | 64-89° | 64-89° |
| F/B | >16dB | >20dB |
| Impedance | 50Ohm | |
| Max. Power | 50W | |
| Material & Mechanical Characteristics | ||
| Connector Type | N connector | |
| Dimension | 260*260*35mm | |
| Radome material | ABS | |
| Mount Pole | ∅30-∅50 | |
| Weight | 1.53Kg | |
| Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 85 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C | |
| Operation Humidity | ＜95% | |
| Rated Wind Velocity | 36.9m/s | |
Antenna Passive Parameter
VSWR
Gain
|
Frequency(MHz) |
Gain(dBi) |
|
806 |
5.6 |
|
810 |
5.7 |
|
820 |
5.6 |
|
840 |
5.1 |
|
860 |
4.5 |
|
880 |
5.4 |
|
900 |
6.5 |
|
920 |
7.7 |
|
940 |
6.6 |
|
960 |
7.1 |
|
|
|
|
1700 |
9.3 |
|
1800 |
9.6 |
|
1900 |
10.4 |
|
2000 |
10.0 |
|
2100 |
9.9 |
|
2200 |
10.4 |
|
2300 |
11.0 |
|
2400 |
10.3 |
|
2500 |
10.3 |
|
2600 |
9.8 |
|
2700 |
8.5 |
Radiation Pattern
|
|
2D-Horizontal |

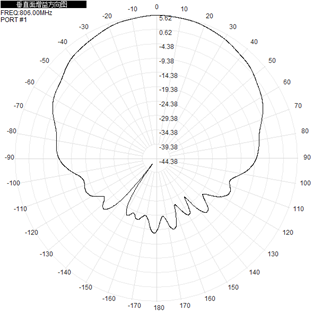

2D-Vertical |

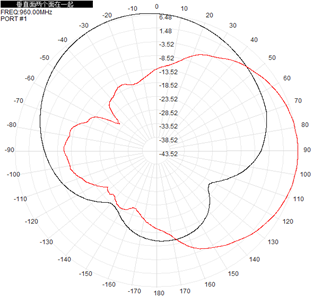

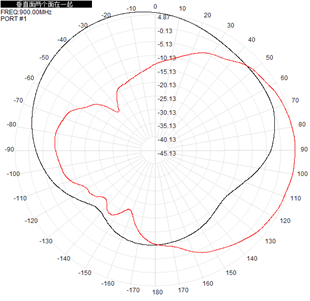

Horizontal & Vertical |
|

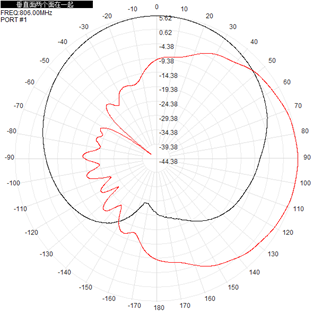

806MHz |
 |
 |
 |
|

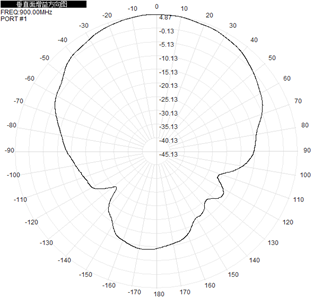

900MHz |
 |
 |
 |
|

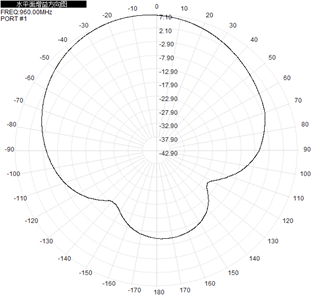

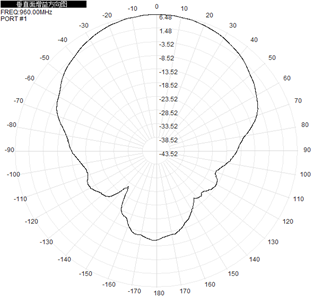

960MHz |
 |
 |
 |
|
|

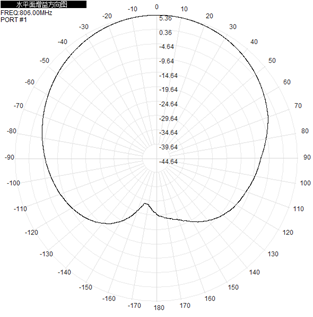

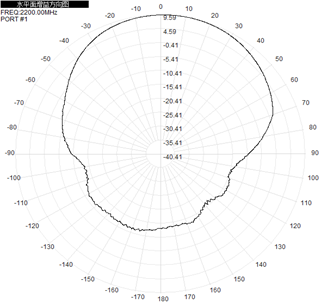

2D-Horizontal |

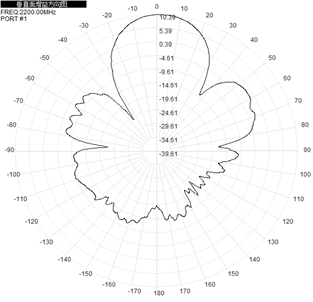

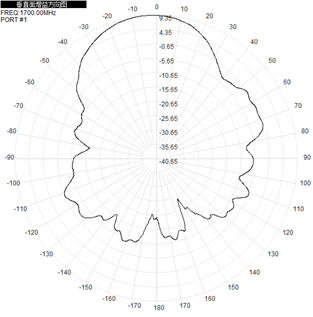

2D-Vertical |
Horizontal & Vertical |
|

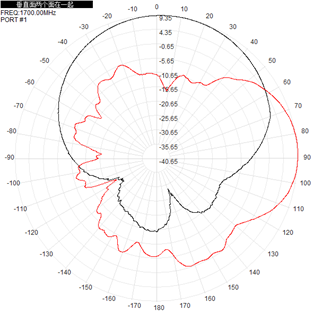

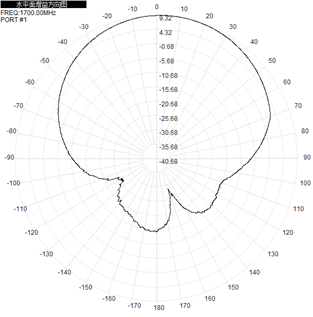

1700MHz |
 |
 |
 |
|

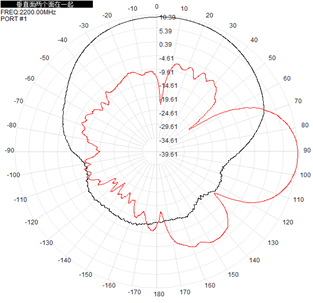

2200MHz |
 |
 |
 |
|

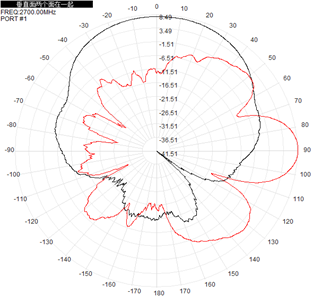

2700MHz |
 |
 |
 |
