Outdoor LPDA antenna directional antenna 400-7000MHz 7dBi
Product Introduction
This LPDA external antenna operate with the 400-7000MHz frequency bands. It is an innovative and future proof solution ideal for 5G/4G and 2G/3G networks as well as 2.4GHz and 5.8GHz Wi-Fi.
This wideband design eliminates the need to purchase different antennas for each frequency which simplifies installations since the same antenna can be used for a wide array of wireless applications where wide coverage is desired.
Product Specification
| Electrical Characteristics | |
| Frequency | 400-7000MHz |
| S.W.R. | <=2.2 |
| Antenna Gain | 7dBi |
| Efficiency | 58% |
| Polarization | Vertical |
| Horizontal Beamwidth | 40-360° |
| Vertical Beamwidth | 20-80° |
| Impedance | 50Ohm |
| Max. Power | 50W |
| Material & Mechanical Characteristics | |
| Connector Type | N connector |
| Cable Type | 50-3 Type Cable |
| Dimension | 550*350*80mm |
| Mount Pole | ∅30-∅50 |
| Weight | 2.4Kg |
| Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
Antenna Passive Parameter
VSWR
Gain
|
Frequency(MHz) |
Gain(dBi) |
Frequency(MHz) |
Gain(dBi) |
Frequency(MHz) |
Gain(dBi) |
|
400 |
2.7 |
1100 |
4.5 |
4200 |
6.9 |
|
420 |
2.9 |
1200 |
5.4 |
4300 |
6.0 |
|
440 |
0.7 |
1300 |
5.5 |
4400 |
5.7 |
|
460 |
2.9 |
1400 |
4.7 |
4500 |
5.3 |
|
480 |
4.6 |
1500 |
6.2 |
4600 |
5.0 |
|
500 |
4.4 |
1600 |
5.4 |
4700 |
4.5 |
|
520 |
3.4 |
1700 |
4.5 |
4800 |
3.8 |
|
540 |
4.1 |
1800 |
6.1 |
4900 |
4.1 |
|
560 |
4.2 |
1900 |
5.4 |
5000 |
5.3 |
|
580 |
0.4 |
2000 |
5.1 |
5100 |
5.2 |
|
600 |
4.1 |
2100 |
6.2 |
5200 |
5.2 |
|
620 |
4.1 |
2200 |
6.7 |
5300 |
5.1 |
|
640 |
2.7 |
2300 |
5.2 |
5400 |
4.7 |
|
660 |
4.1 |
2400 |
5.3 |
5500 |
4.5 |
|
680 |
4.9 |
2500 |
5.1 |
5600 |
5.1 |
|
700 |
5.2 |
2600 |
5.9 |
5700 |
4.5 |
|
720 |
4.5 |
2700 |
4.8 |
5800 |
4.2 |
|
740 |
5.4 |
2800 |
5.7 |
5900 |
4.8 |
|
760 |
3.9 |
2900 |
5.8 |
6000 |
5.5 |
|
780 |
6.0 |
3000 |
6.5 |
6100 |
6.4 |
|
800 |
6.8 |
3100 |
5.2 |
6200 |
6.6 |
|
820 |
6.7 |
3200 |
6.2 |
6300 |
5.3 |
|
840 |
5.8 |
3300 |
5.8 |
6400 |
4.7 |
|
860 |
4.7 |
3400 |
5.7 |
6500 |
5.7 |
|
880 |
4.8 |
3500 |
6.6 |
6600 |
5.4 |
|
900 |
5.3 |
3600 |
7.0 |
6700 |
5.3 |
|
920 |
4.2 |
3700 |
6.5 |
6800 |
5.3 |
|
940 |
5.0 |
3800 |
5.0 |
6900 |
4.6 |
|
960 |
5.3 |
3900 |
4.4 |
7000 |
4.0 |
|
980 |
4.8 |
4000 |
4.9 |
|
|
|
1000 |
5.4 |
4100 |
5.6 |
|
|

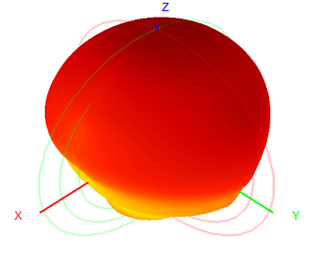

Radiation Pattern
|
|

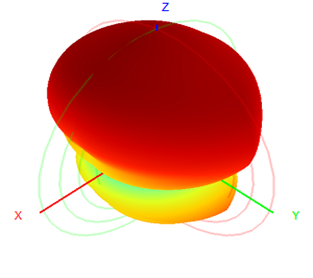

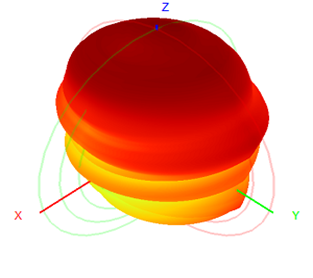

3D |

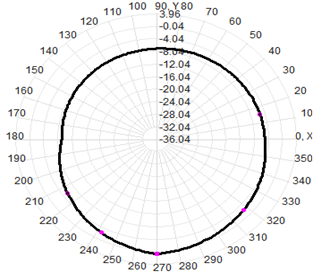

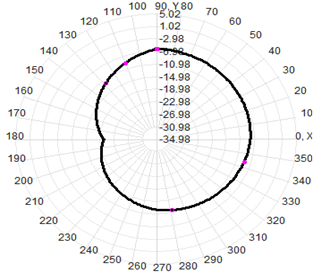

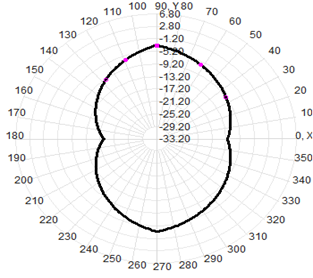

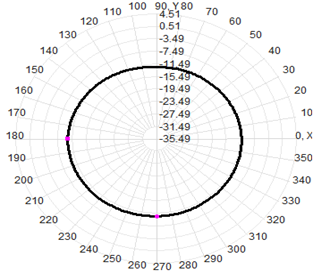

2D-Horizontal |

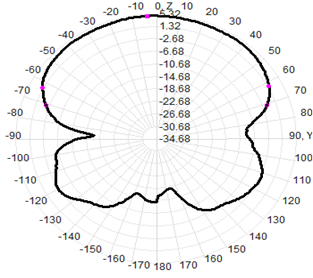

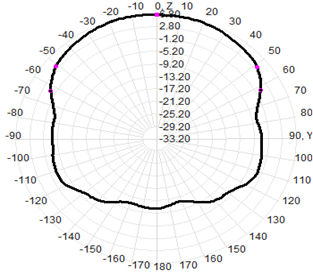

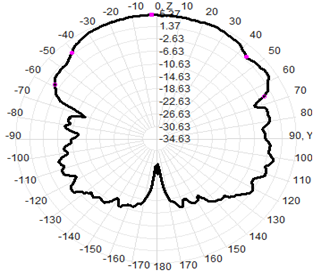

2D-Vertical |
|

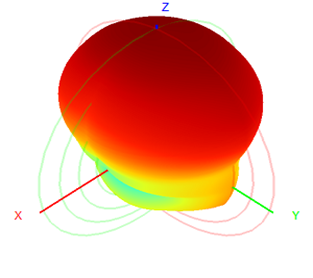

400MHz |
 |
 |
 |
|
800MHz |
 |
 |
 |
|
960MHz |
 |
 |
 |
|
|

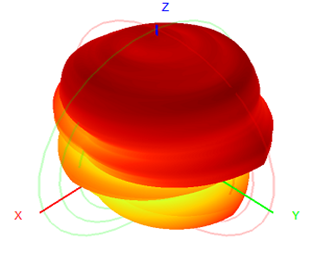

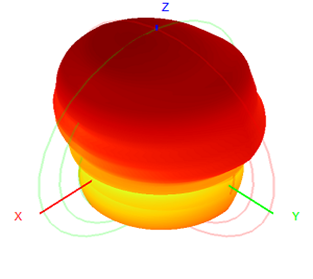

3D |

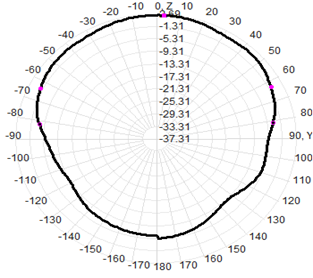

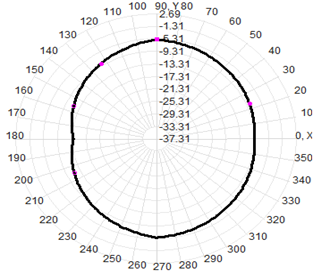

2D-Horizontal |

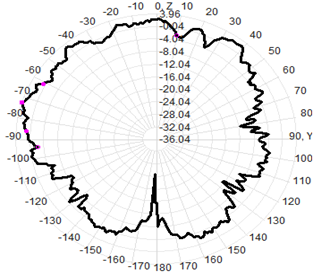

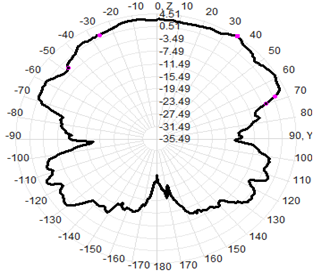

2D-Vertical |
|
1700MHz |
 |
 |
 |
|
2700MHz |
 |
 |
 |
|
3800MHz |
 |
 |
 |
|
|

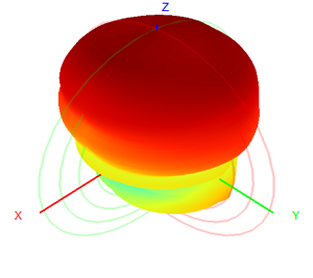

3D |

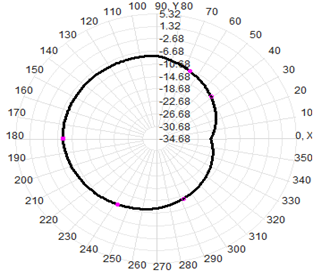

2D-Horizontal |

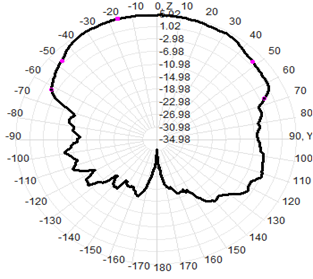

2D-Vertical |
|
4500MHz |
 |
 |
 |
|
5500MHz |
 |
 |
 |
|
7000MHz |
 |
 |
 |
