Magnetic antenna 3G antenna RG174 cable 30×200
Product Introduction
This 3G Magnetic antenna is a device used to enhance wireless network signals. Its frequency range is 824-2170MHZ, which can ensure stable signal transmission.
The cable is made of high-quality RG174 cable, this cable is 3 meters long. Its connector is an SMA connector,
The base comes with a strong magnet that can fix the antenna on any metal surface. The strong magnet base provides a secure fixation and maintains the stability of the antenna. This makes installation very easy, you just place the antenna where you want and start using it immediately.
Product Specification
| Electrical Characteristics | ||
| Frequency | 824-960MHz | 1710-2170MHz |
| Impedance | 50 Ohm | 50 Ohm |
| S.W.R. | <2.0 | <2.0 |
| Gain | -2.5dBi | -3.2dBi |
| Efficiency | ≈12% | ≈13% |
| Polarization | Linear | Linear |
| Horizontal Beamwidth | 360° | 360° |
| Vertical Beamwidth | 40-135° | 32-80° |
| Max Power | 50W | 50W |
| Material & Mechanical Characteristics | ||
| Connector Type | SMA connector | |
| Cable Type | RG174 Cable | |
| Dimension | Φ30*200mm | |
| Weight | 0.046Kg | |
| Antenna material | Carbon Steel | |
| Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 80 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |
Antenna Passive Parameter
VSWR

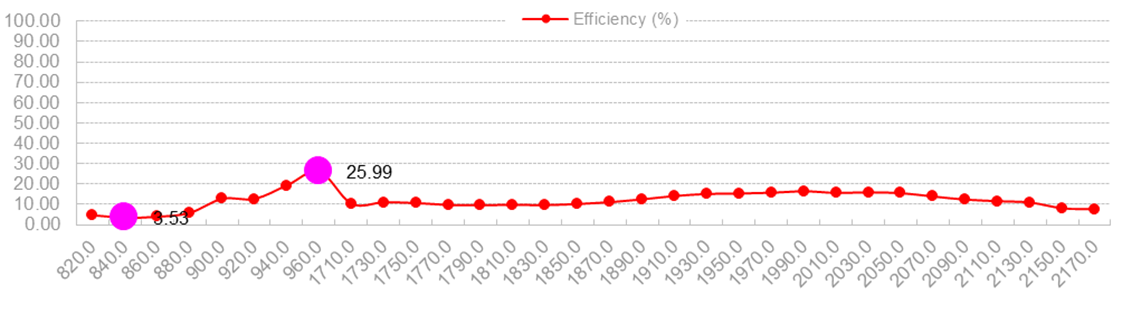

Efficiency & Gain
| Frequency(MHz) |
820.0 |
840.0 |
860.0 |
880.0 |
900.0 |
920.0 |
940.0 |
960.0 |
| Gain (dBi) |
-7.84 |
-8.63 |
-7.86 |
-7.04 |
-4.63 |
-4.82 |
-3.62 |
-2.58 |
| Efficiency (%) |
4.73 |
3.53 |
3.95 |
5.89 |
12.73 |
12.71 |
19.26 |
25.99 |
| Frequency(MHz) |
1710.0 |
1730.0 |
1750.0 |
1770.0 |
1790.0 |
1810.0 |
1830.0 |
1850.0 |
1870.0 |
1890.0 |
1910.0 |
1930.0 |
| Gain (dBi) |
-4.65 |
-4.88 |
-5.33 |
-5.39 |
-5.12 |
-4.96 |
-5.49 |
-5.15 |
-4.59 |
-3.87 |
-3.34 |
-3.20 |
| Efficiency (%) |
10.38 |
11.04 |
10.67 |
9.70 |
9.64 |
9.82 |
9.66 |
10.20 |
11.08 |
12.48 |
14.12 |
15.12 |
| Frequency(MHz) |
1950.0 |
1970.0 |
1990.0 |
2010.0 |
2030.0 |
2050.0 |
2070.0 |
2090.0 |
2110.0 |
2130.0 |
2150.0 |
2170.0 |
| Gain (dBi) |
-3.56 |
-3.42 |
-4.13 |
-4.62 |
-4.82 |
-3.61 |
-4.17 |
-4.61 |
-4.78 |
-4.89 |
-6.34 |
-7.70 |
| Efficiency (%) |
15.31 |
15.68 |
16.38 |
15.61 |
15.88 |
15.48 |
13.86 |
12.34 |
11.56 |
10.92 |
8.09 |
7.72 |
Radiation Pattern
|
|

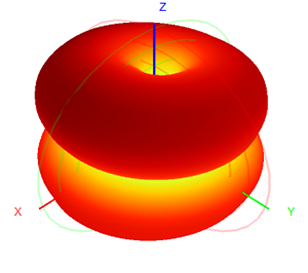

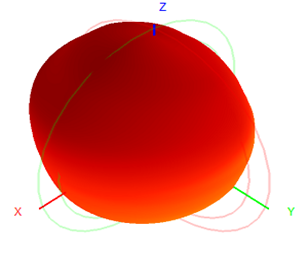

3D |

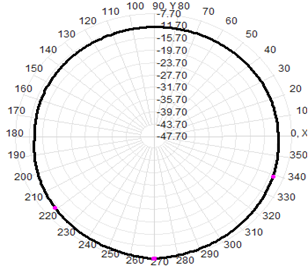

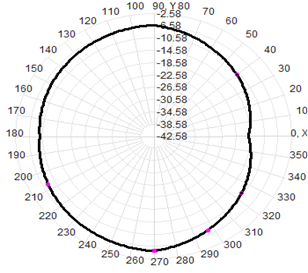

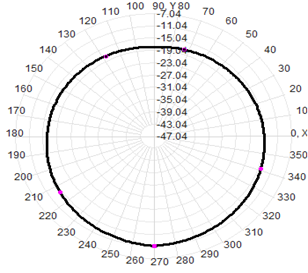

2D-Horizontal |

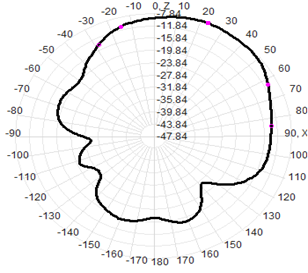

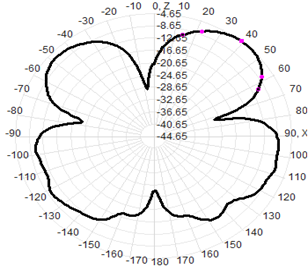

2D-Vertical |
|
820MHz |
 |
 |
 |
|
880MHz |
 |
 |
 |
|
960MHz |
 |
 |
 |
|
|

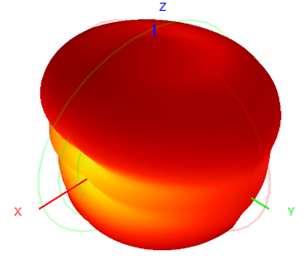

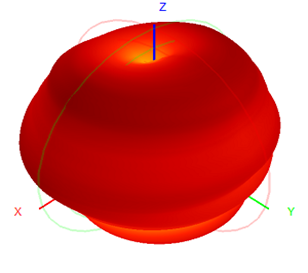

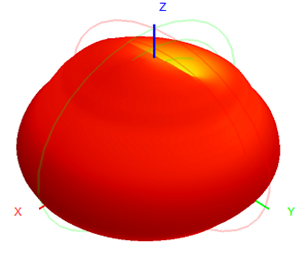

3D |

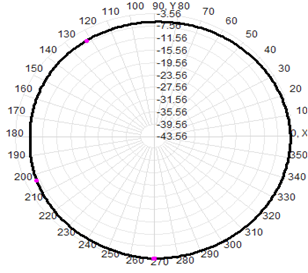

2D-Horizontal |

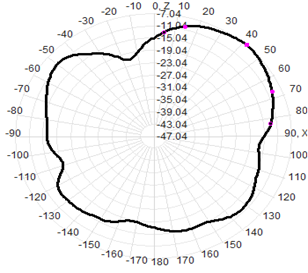

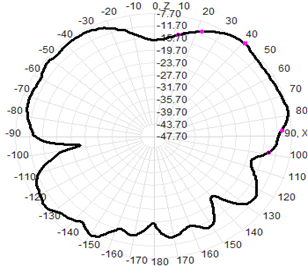

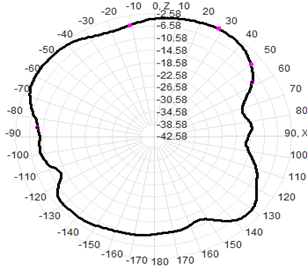

2D-Vertical |
|
1710MHz |
 |
 |
 |
|
1950MHz |
 |
 |
 |
|
2170MHz |
 |
 |
 |
