Magnetic antenna 2.4GHz WIFI RG174 Cable 30×195
Product Introduction
This 2.4G WIFI magnetic antenna is a device used to enhance wireless network signals. Its frequency range is 2400-2500MHZ, which can ensure stable signal transmission.
The cable is made of high-quality RG174 cable, this cable is 3 meters long. Its connector is an SMA connector,
The base comes with a strong magnet that can fix the antenna on any metal surface. The strong magnet base provides a secure fixation and maintains the stability of the antenna. This makes installation very easy, you just place the antenna where you want and start using it immediately.
Product Specification
| Electrical Characteristics | |
| Frequency | 2400-2500MHz |
| Impedance | 50 Ohm |
| S.W.R. | <2.0 |
| Gain | -2.1dBi |
| Efficiency | ≈12% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 25-28° |
| Max Power | 50W |
| Material & Mechanical Characteristics | |
| Connector Type | SMA connector |
| Cable Type | RG174 Cable |
| Dimension | Φ30*223mm |
| Weight | 0.046Kg |
| Antenna material | Carbon Steel |
| Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
Antenna Passive Parameter
VSWR

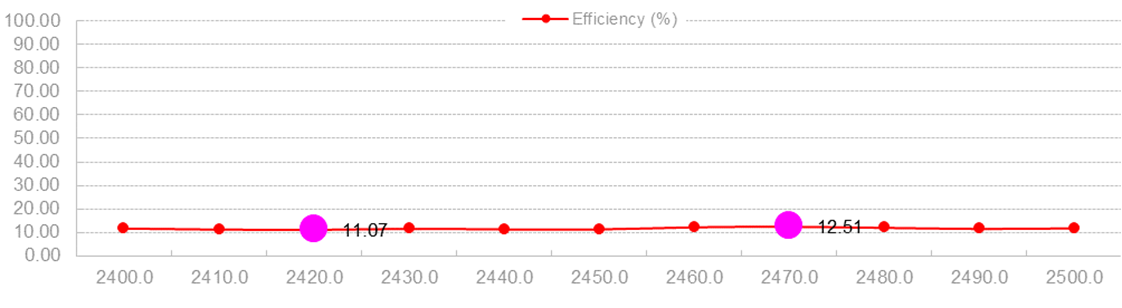

Efficiency & Gain
| Frequency(MHz) |
2400.0 |
2410.0 |
2420.0 |
2430.0 |
2440.0 |
2450.0 |
2460.0 |
2470.0 |
2480.0 |
2490.0 |
2500.0 |
| Gain (dBi) |
-3.28 |
-3.33 |
-3.25 |
-3.05 |
-3.05 |
-2.92 |
-2.43 |
-2.15 |
-2.21 |
-2.28 |
-2.13 |
| Efficiency (%) |
11.68 |
11.18 |
11.07 |
11.54 |
11.27 |
11.27 |
12.24 |
12.51 |
11.99 |
11.52 |
11.75 |

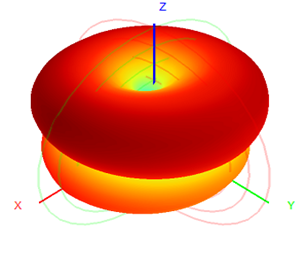

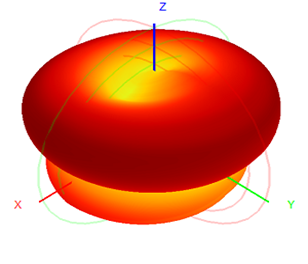

Radiation Pattern
|
|

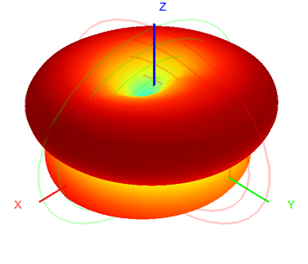

3D |

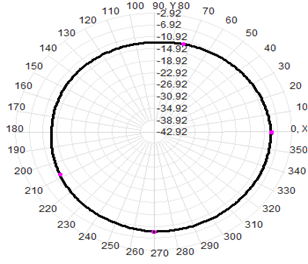

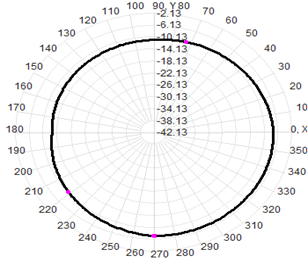

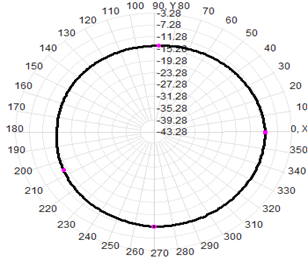

2D-Horizontal |

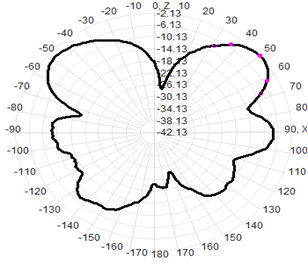

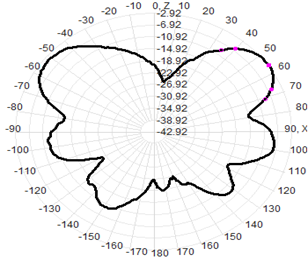

2D-Vertical |
|
2400MHz |
 |
 |
 |
|
2450MHz |
 |
 |
 |
|
2500MHz |
 |
 |
 |
