6700-7200MHz High-Bandwidth Gooseneck Antenna

Short Description:

Frequency: 6700-7200MHz

Gain: 6dBi

N connector

IP67 Waterproof

Dimension: Φ16*300mm


Product Detail

Product Tags

Product Introduction

When the situation changes in an instant, you need a high-speed communication lifeline that is stable, reliable, and can be established immediately. The Boges Series 6700-7200MHz Professional Gooseneck Antenna is built for exactly that.

Operating in the optimal C/X-band crossover zone, it combines robust bandwidth for HD video and bulk data transfer with excellent rain fade resistance, ensuring all-weather, reliable operation for your critical missions.

Its signature high-flexibility gooseneck design embodies ultimate adaptability and stability. You can securely mount it on vehicle roofs, railings, or any temporary structure within minutes, and easily align it manually for rapid and precise satellite acquisition or point-to-point link establishment. Its rugged construction stands up to the toughest field conditions.

Core Application Scenarios:

  • Emergency Response & Disaster Relief: Rapidly build an "information bridge" between frontline command posts and headquarters.

  • Live News Gathering (SNG): Provides a portable, stable uplink for HD/UHD signal backhaul.

  • Temporary Events & Special Operations: Offers plug-and-play, high-bandwidth wireless backhaul for large events and field operations.

  • Defense & Public Safety: Meets the urgent need for secure, high-speed communications in tactical mobile deployments.

Choosing Boges isn't just choosing an antenna; it's choosing the capability to take operational control of your communications when it matters most. We provide the robust technical equipment for professional fields.

Product Specification

Electrical Characteristics
Frequency 6700-7200MHz
Impedance 50 Ohm
S.W.R. <1.5
Gain 6dBi
Efficiency ≈50%
Horizontal Beamwidth 360°
Vertical Beamwidth 14-17°
Polarization Linear
Max Power 50W
Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ16*300mm
Weight 0.1Kg
Radome material Fiberglass
Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

Antenna Passive Parameter

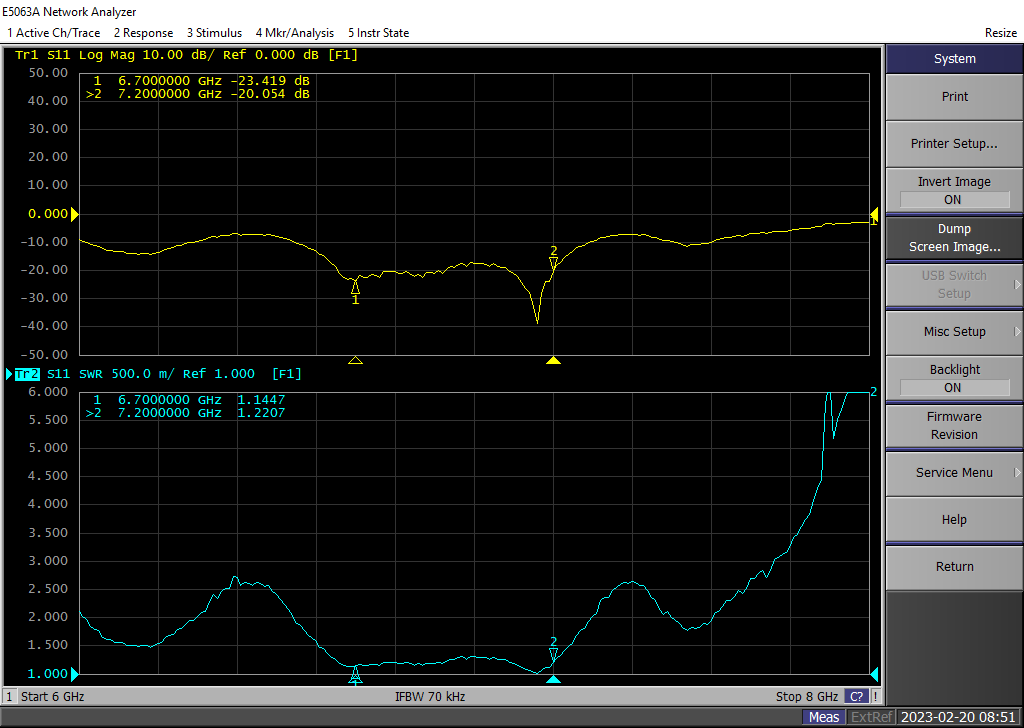

VSWR

6700-7200-EJING

Efficiency & Gain

Frequency(MHz)

6700.0

6750.0

6800.0

6850.0

6900.0

6950.0

7000.0

7050.0

7100.0

7150.0

7200.0

Gain (dBi)

5.74

5.62

5.70

5.73

5.55

5.62

5.81

5.80

5.50

5.88

5.82

Efficiency (%)

51.76

51.19

52.59

52.26

50.41

50.13

50.86

49.87

45.97

49.37

48.09







Radiation Pattern



3D

2D-Horizontal

2D-Vertical

Axis



6700MHz



6950MHz



7200MHz
