4G 5G External Antenna 2dBi 10×135
Product Introduction
The 5G external antenna is designed primarily for use with modules and devices that require high efficiency and peak gain from a cellular antenna. It delivers best in class throughput on all major cellular bands worldwide, perfect for access points, terminals, and routers. The antenna covers all cellular bands from 600-6000MHz.
Typical Applications include:
- Gateways & Routers - Exterior Cameras - Vending Machines
- Industrial IoT - Smart Home - Wastewater Monitoring
Product Specification
| Electrical Characteristics | |
| Frequency | 617-960MHZ, 1575-2690MHZ, 3300-6000MHz |
| S.W.R. | <= 3.0 |
| Antenna Gain | 2.0dBi @ 617-960MHZ
2.0dBi @ 1575-2690MHZ 2.5dBi @ 3300-6000MHZ |
| Efficiency | ≈65% |
| Polarization | Linear |
| Impedance | 50 Ohm |
| Material & Mechanical Characteristics | |
| Connector Type | SMA Plug |
| Dimension | 10*135.6mm |
| Weight | 0.01Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
Antenna Passive Parameter
VSWR
Efficiency & Gain

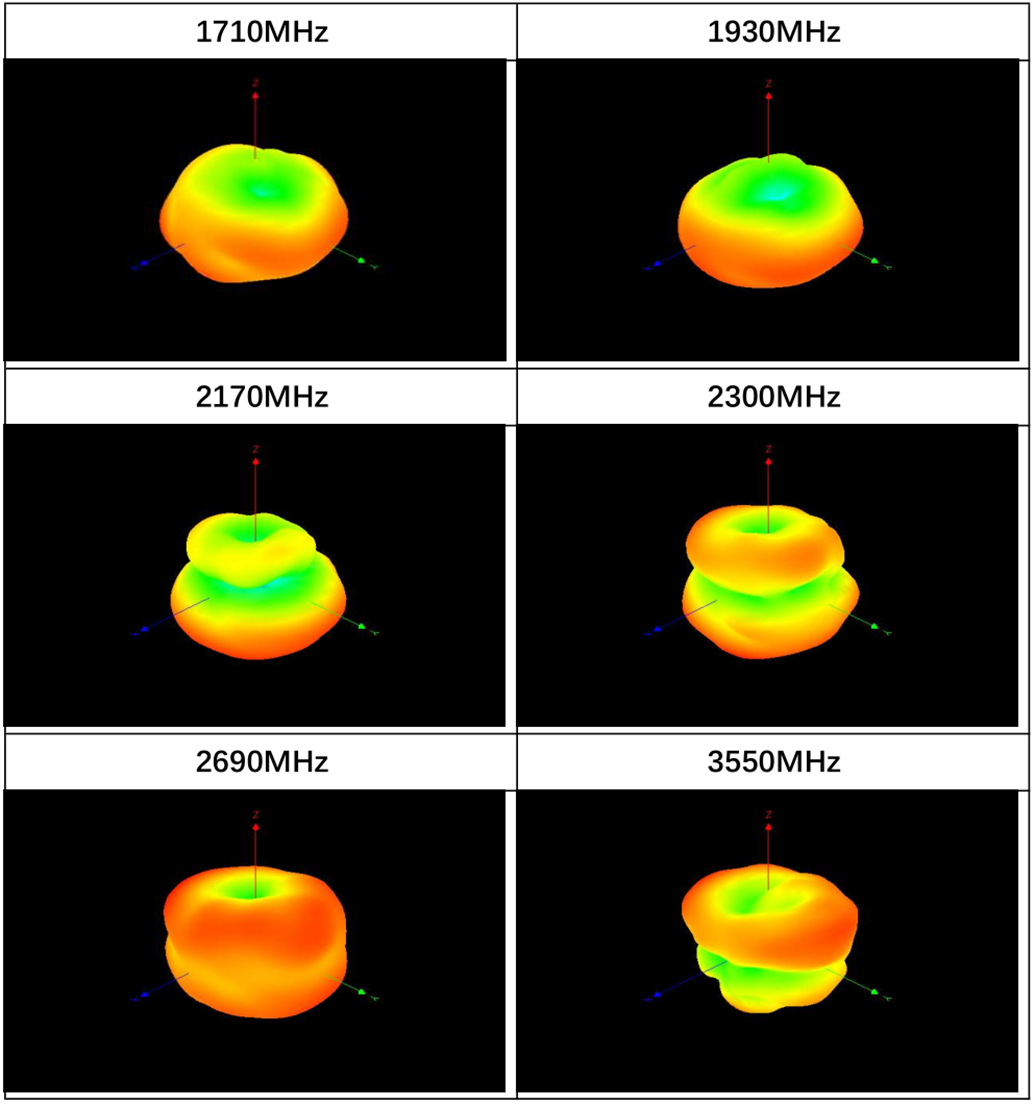

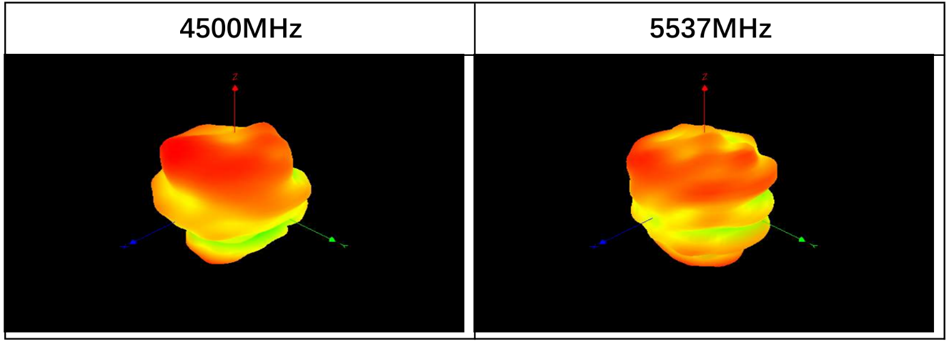

Radiation Pattern
