Outdoor RFID antenna 902-928MHz 2 ports 9 dBi 340x280x80

This RFID antennas is designed for large-scale coverage in high-capacity, high-throughput environments.
With its wide read range and high-speed RF signal conversion, the antenna ensures fast and accurate data capture even in vast and demanding environments.
  • Frequency 902-928MHz
  • Gain 9dBi
  • Waterproof IP67 Waterproof
  • Connector N Connector
  • Dimension 340*280*80mm

product detail

Product Introduction

This RFID antennas is designed for large-scale coverage in high-capacity, high-throughput environments.
With its wide read range and high-speed RF signal conversion, the antenna ensures fast and accurate data capture even in vast and demanding environments.
Installation is simple as it can be easily mounted on ceilings and walls, and its rugged housing is suitable for both customer-facing and industrial environments. Experience superior reading areas around warehouse shelves, warehouse entrances, and dock decks, anywhere you need to track the movement of boxes and pallets. Your workflow remains smooth, inventory checks remain accurate, and your productivity reaches new heights.
The unique feature of this RFID antenna is its excellent anti-interference performance, which can effectively resist the influence of external interference signals and ensure the accuracy and stability of data reading. Whether in high-density logistics environments or crowded manufacturing floors, performance remains stable. In addition, the antenna has adjustable power output that can be flexibly adjusted to optimize reading performance at different distances and environments. Energy-saving features also extend the life of the antenna and reduce energy consumption.
Additionally, our RFID antennas integrate seamlessly with your existing RFID systems for fast and efficient data transmission. Whether in logistics, warehousing, manufacturing or retail industries, it can quickly capture item identification information and enhance your control capabilities.

Product Specification

Electrical Characteristics
Port Port1 Port2
Frequency 902-928MHz 902-928MHz
S.W.R. <2.0 <2.0
Antenna Gain 9dBi 9dBi
Polarization +45° -45°
Horizontal Beamwidth 60-65° 65-66°
Vertical Beamwidth 66-68° 66-68°
F/B >18dB >18dB
Impedance 50Ohm 50Ohm
Max. Power 50W 50W
Material & Mechanical Characteristics
Connector Type N connector
Dimension 340*280*80mm
Radome material UPVC
Weight 2.3Kg
Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity <95%
Rated Wind Velocity 36.9m/s

Antenna Passive Parameter

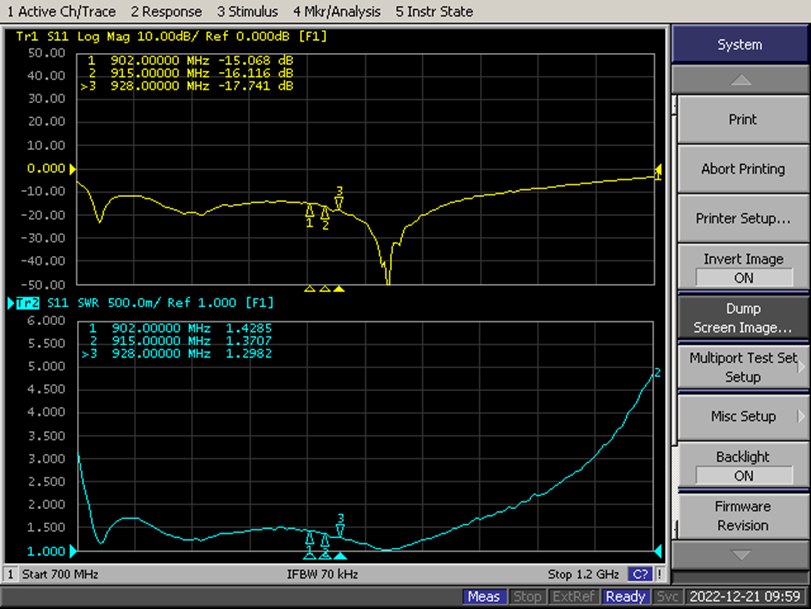

VSWR

Port1 +45°
Port1 VSWR
Port2 -45°
Port2 VSWR

Efficiency & Gain

Port 1 +45° Port 2 -45°
Frequency(MHz) Gain(dBi) Frequency(MHz) Gain(dBi)
902 9.1762 902 8.9848
904 9.1623 904 8.9836
906 9.2145 906 9.0329
908 9.3154 908 9.1358
910 9.4156 910 9.2406
912 9.4843 912 9.296
914 9.5353 914 9.3349
916 9.6105 916 9.4001
918 9.6878 918 9.4748
920 9.7453 920 9.5304
922 9.7272 922 9.5167
924 9.7226 924 9.5067
926 9.7119 926 9.5041
928 9.7102 928 9.5192

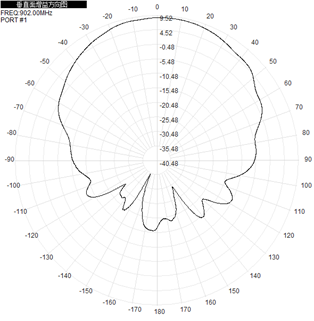

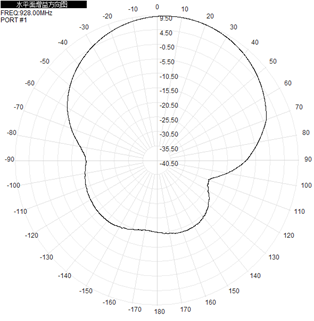

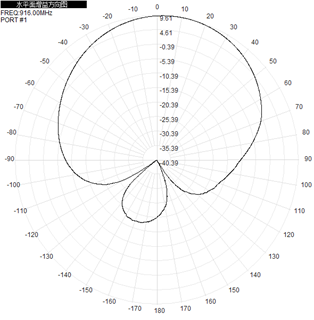

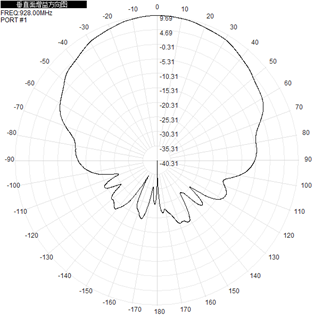

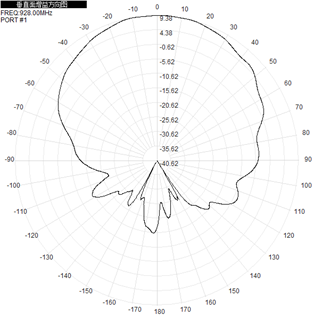

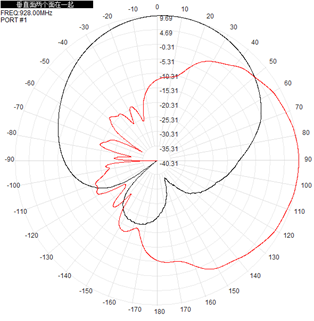

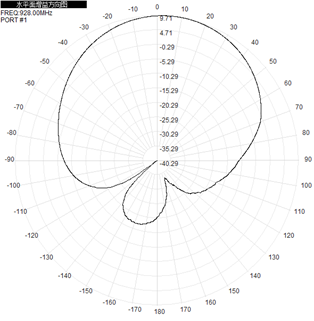

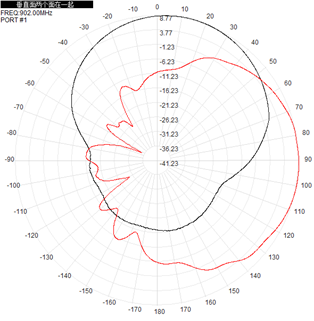

Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical

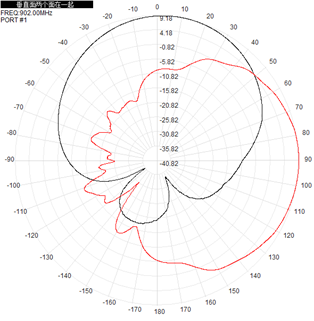

902MHz 902MHz H 902MHz V 902MHz HV

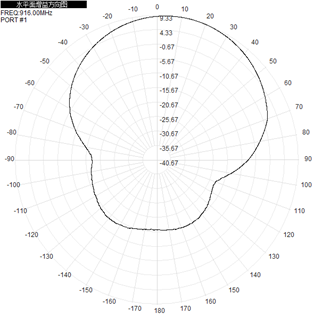

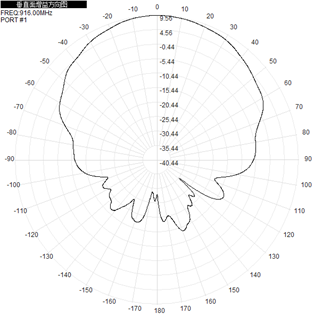

916MHz 916MHz H 916MHz V 916MHz HV

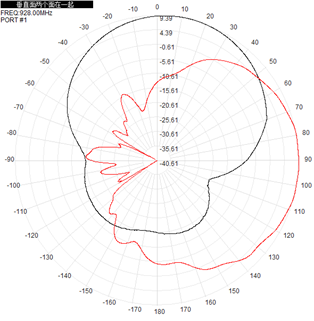

928MHz 928MHz H 928MHz V 928MHz HV
Port2 2D-Horizontal 2D-Vertical Horizontal & Vertical
902MHz 902MHz H 902MHz V 902MHz HV
916MHz 916MHz H 916MHz V 916MHz HV
928MHz 928MHz H 928MHz V 928MHz HV
