Directional Flat Panel Antenna 2.4GHz 5.8GHz 10.5dBi 97x97x23mm
Product Introduction
This is a professional quality antenna designed primarily for point-to-multipoint and point-to-point applications in the 2.4 GHz and 5.8GHz frequency bands.
This aesthetically pleasing antenna features a heavy-duty UV-resistant plastic radome ideal for all-weather indoor and outdoor operation. This antenna is supplied with a tilt and swivel mast mount kit. This allows quick installation at various degrees of up/down tilt for easy alignment.
Application:
2.4/5.8 GHz Indoor/Outdoor Wireless LAN systems
Hospitality, Industrial, Municipality
Product Specification
| Electrical Characteristics | ||
| Frequency | 2400-2500MHz | 5150-5850MHz |
| S.W.R. | <2.0 | <2.0 |
| Antenna Gain | 9dBi | 10.5dBi |
| Polarization | Vertical | Vertical |
| Horizontal Beamwidth | 82±3° | 55±5° |
| Vertical Beamwidth | 63±2° | 50±5° |
| F/B | >18dB | >14dB |
| Impedance | 50Ohm | 50Ohm |
| Max. Power | 50W | 50W |
| Material & Mechanical Characteristics | ||
| Connector Type | N connector | |
| Dimension | 97*97*23mm | |
| Radome material | ABS | |
| Weight | 0.11Kg | |
| Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 85 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C | |
| Operation Humidity | ＜95% | |
| Rated Wind Velocity | 36.9m/s | |
Antenna Passive Parameter
VSWR
Gain
|
Frequency(MHz) |
Gain(dBi) |
|
2400 |
8.9 |
|
2410 |
8.9 |
|
2420 |
8.8 |
|
2430 |
8.7 |
|
2440 |
8.7 |
|
2450 |
8.6 |
|
2460 |
8.6 |
|
2470 |
8.6 |
|
2480 |
8.5 |
|
2490 |
8.5 |
|
2500 |
8.5 |
|
|
|
|
5150 |
10.3 |
|
5200 |
10.2 |
|
5250 |
9.9 |
|
5300 |
9.8 |
|
5350 |
9.7 |
|
5400 |
9.4 |
|
5450 |
9.4 |
|
5500 |
9.5 |
|
5550 |
9.7 |
|
5600 |
9.8 |
|
5650 |
9.8 |
|
5700 |
10.2 |
|
5750 |
10.6 |
|
5800 |
10.1 |
|
5850 |
10.2 |

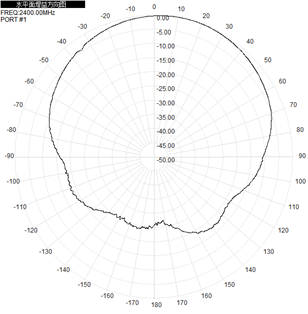

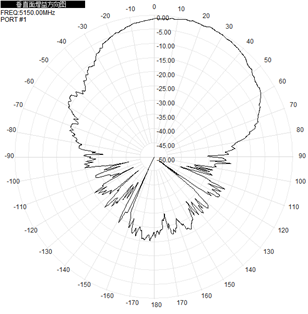

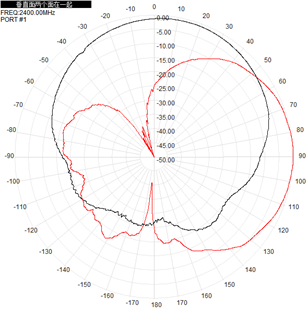

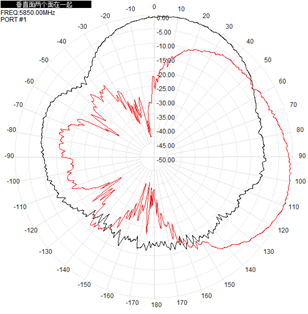

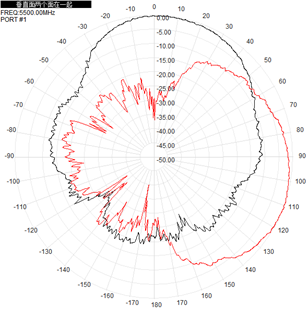

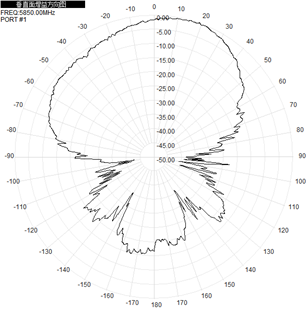

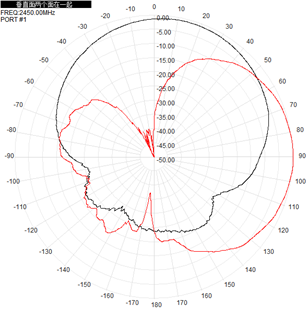

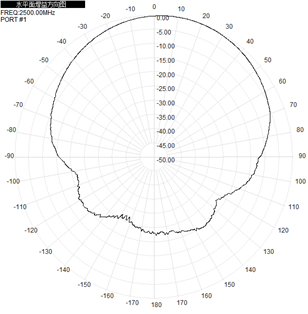

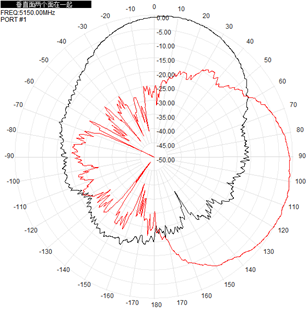

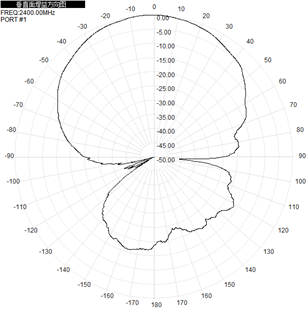

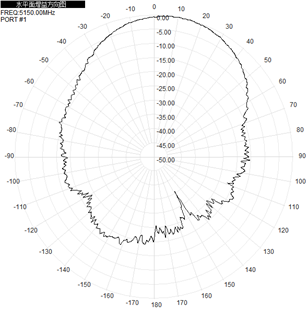

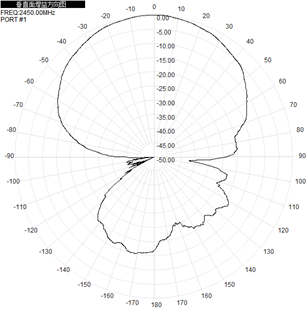

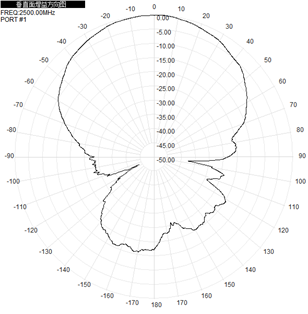

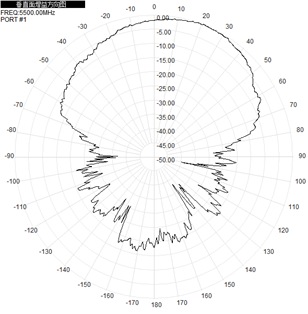

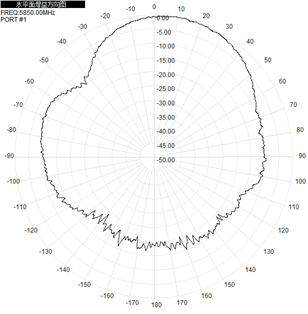

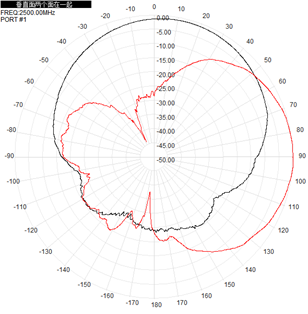

Radiation Pattern
|
|
2D-Horizontal |
2D-Vertical |
Horizontal & Vertical |
|
2400MHz |
 |
 |
 |
|
2450MHz |
 |
 |
 |
|
2500MHz |
 |
 |
 |
|
|
2D-Horizontal |
2D-Vertical |
Horizontal & Vertical |
|
5150MHz |
 |
 |
 |
|
5500MHz |
 |
 |
 |
|
5850MHz |
 |
 |
 |
