Magnetic antenna 4G antenna RG174 cable 30×225
Product Introduction
This 4G LTE magnetic antenna is a device used to enhance wireless network signals. Its frequency range is 700-2700MHZ, which can ensure stable signal transmission.
The cable is made of high-quality RG174 cable, this cable is 3 meters long. Its connector is an SMA connector,
The base comes with a strong magnet that can fix the antenna on any metal surface. The strong magnet base provides a secure fixation and maintains the stability of the antenna. This makes installation very easy, you just place the antenna where you want and start using it immediately.
Product Specification
| Electrical Characteristics | ||
| Frequency | 824-960MHz | 1710-2700MHz |
| Impedance | 50 Ohm | 50 Ohm |
| S.W.R. | <2.0 | <2.0 |
| Gain | -1.4dBi | -2.2dBi |
| Efficiency | ≈10% | ≈10% |
| Polarization | Linear | Linear |
| Horizontal Beamwidth | 360° | 360° |
| Vertical Beamwidth | 34-146° | 24-53° |
| Max Power | 50W | 50W |
| Material & Mechanical Characteristics | ||
| Connector Type | SMA connector | |
| Cable Type | RG174 Cable | |
| Dimension | Φ30*225mm | |
| Weight | 0.048Kg | |
| Antenna material | Carbon Steel | |
| Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 80 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |
Antenna Passive Parameter
VSWR
Efficiency & Gain
| Frequency(MHz) |
690.0 |
720.0 |
750.0 |
780.0 |
810.0 |
840.0 |
870.0 |
900.0 |
930.0 |
960.0 |
| Gain (dBi) |
-7.76 |
-9.19 |
-9.09 |
-7.15 |
-8.46 |
-9.13 |
-8.50 |
-3.44 |
-1.47 |
-2.18 |
| Efficiency (%) |
9.35 |
6.67 |
6.51 |
7.11 |
4.30 |
3.07 |
4.25 |
14.68 |
17.47 |
24.22 |
| Frequency(MHz) |
1700.0 |
1800.0 |
1900.0 |
2000.0 |
2100.0 |
2200.0 |
2300.0 |
2400.0 |
2500.0 |
2600.0 |
2700.0 |
| Gain (dBi) |
-4.13 |
-2.57 |
-4.53 |
-3.24 |
-2.24 |
-4.60 |
-5.37 |
-6.84 |
-5.09 |
-7.87 |
-7.97 |
| Efficiency (%) |
14.74 |
13.76 |
9.89 |
13.53 |
15.48 |
11.42 |
7.60 |
5.95 |
7.06 |
5.25 |
5.70 |
Radiation Pattern
|
|

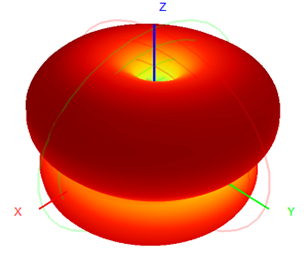

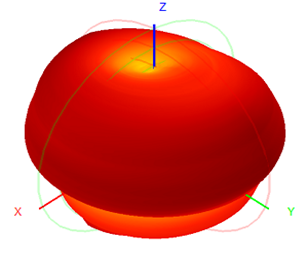

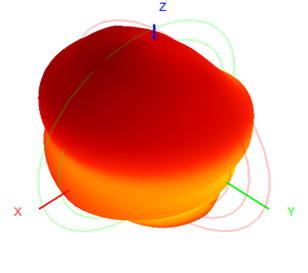

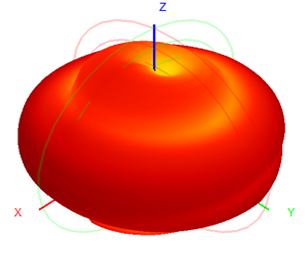

3D |

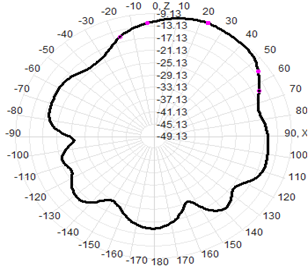

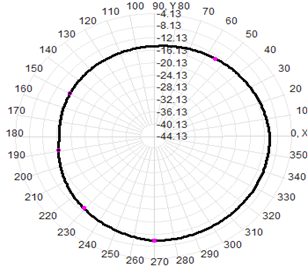

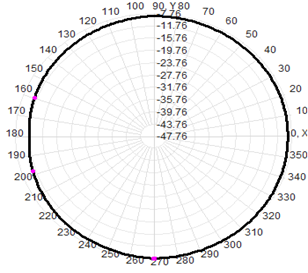

2D-Horizontal |

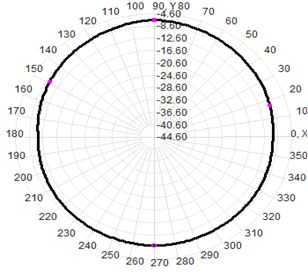

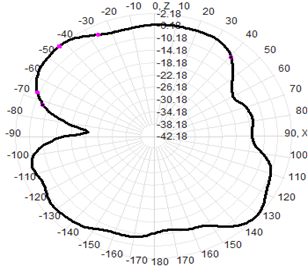

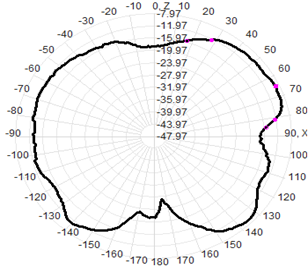

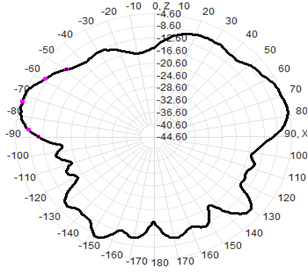

2D-Vertical |
|
690MHz |
 |
 |
 |
|
840MHz |
 |
 |
 |
|
960MHz |
 |
 |
 |
|
|

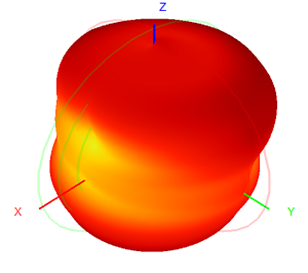

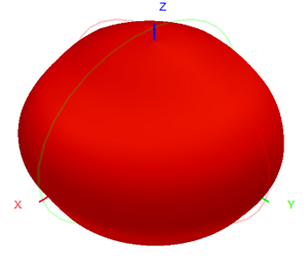

3D |

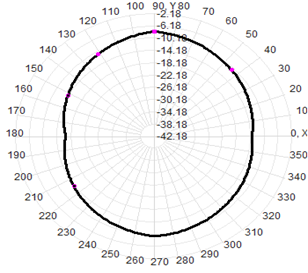

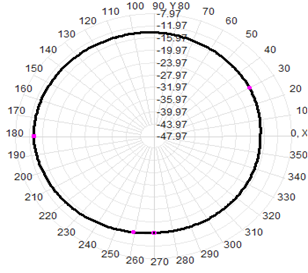

2D-Horizontal |

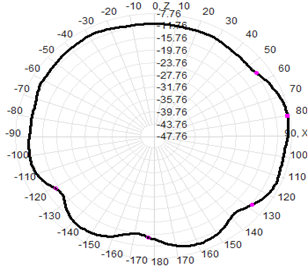

2D-Vertical |
|
1700MHz |
 |
 |
 |
|
2200MHz |
 |
 |
 |
|
2700MHz |
 |
 |
 |
